Eaton CHB115 CH thermal magnetic circuit breaker 15A replacement CHB115

Product Description

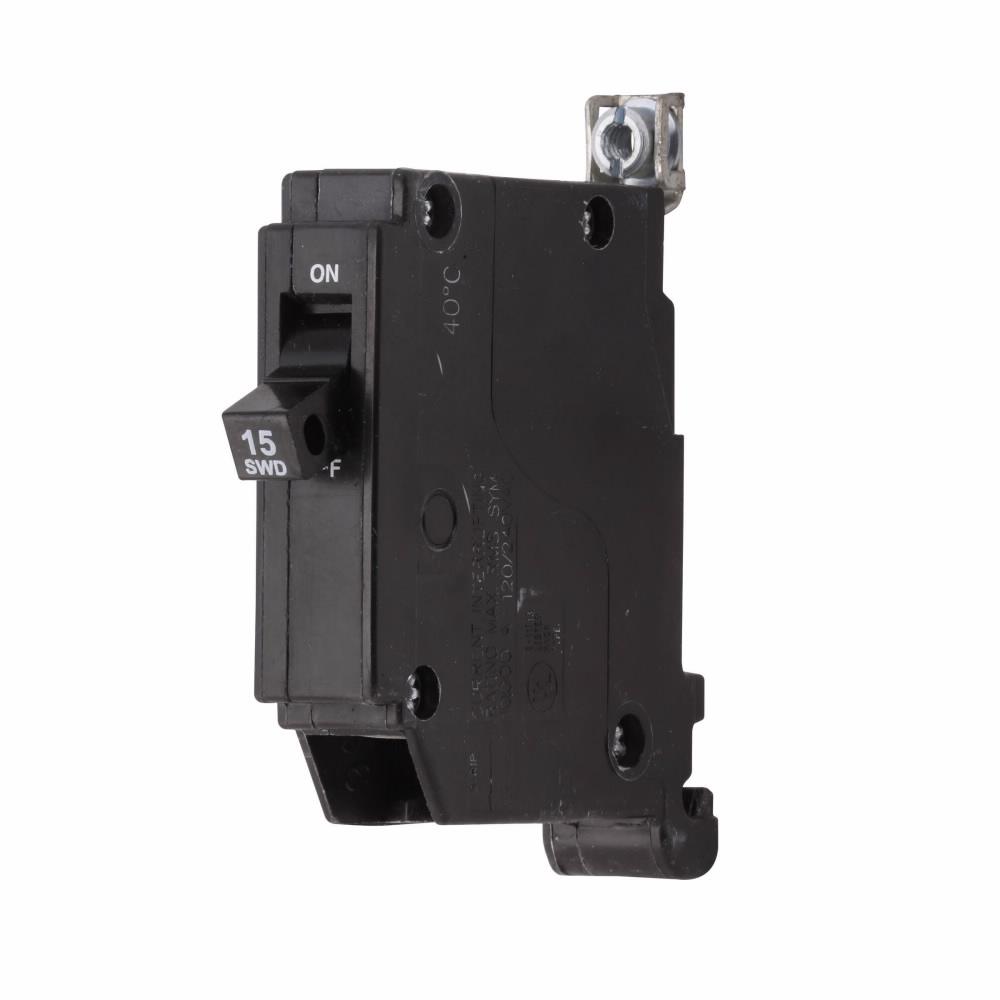

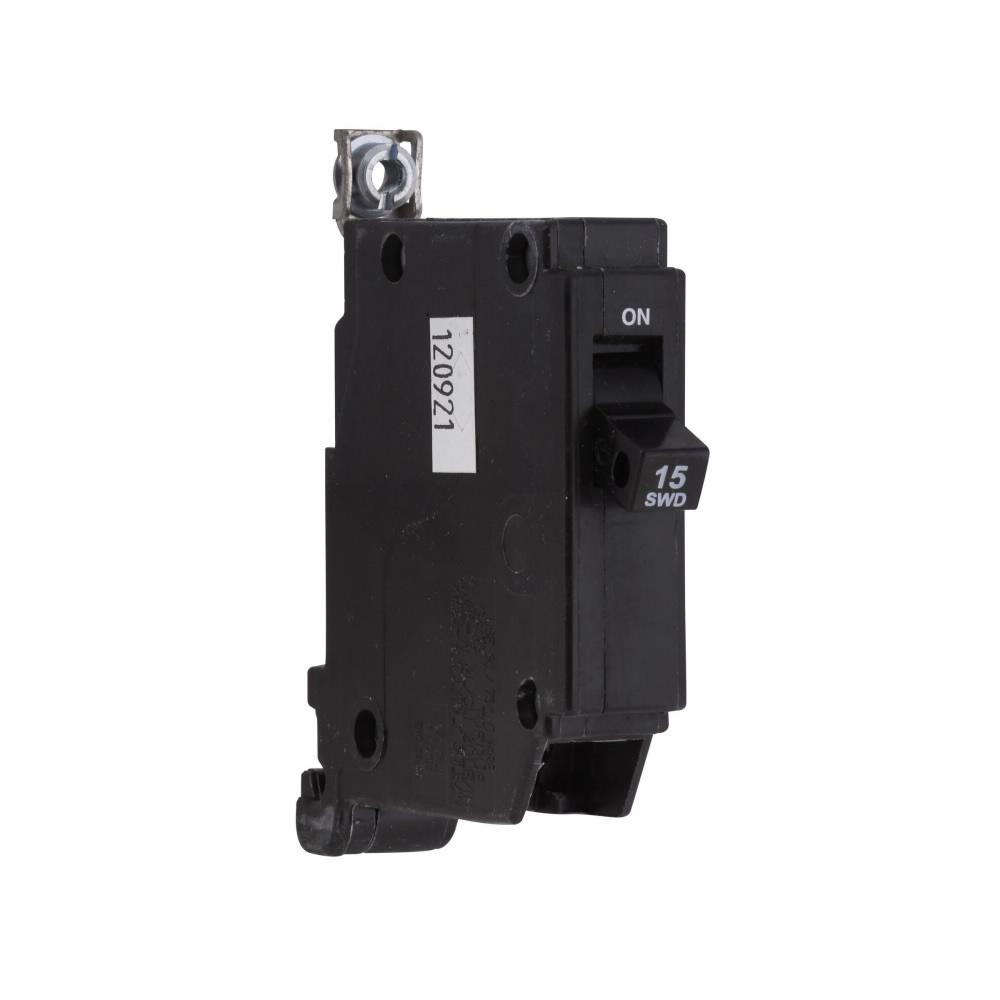

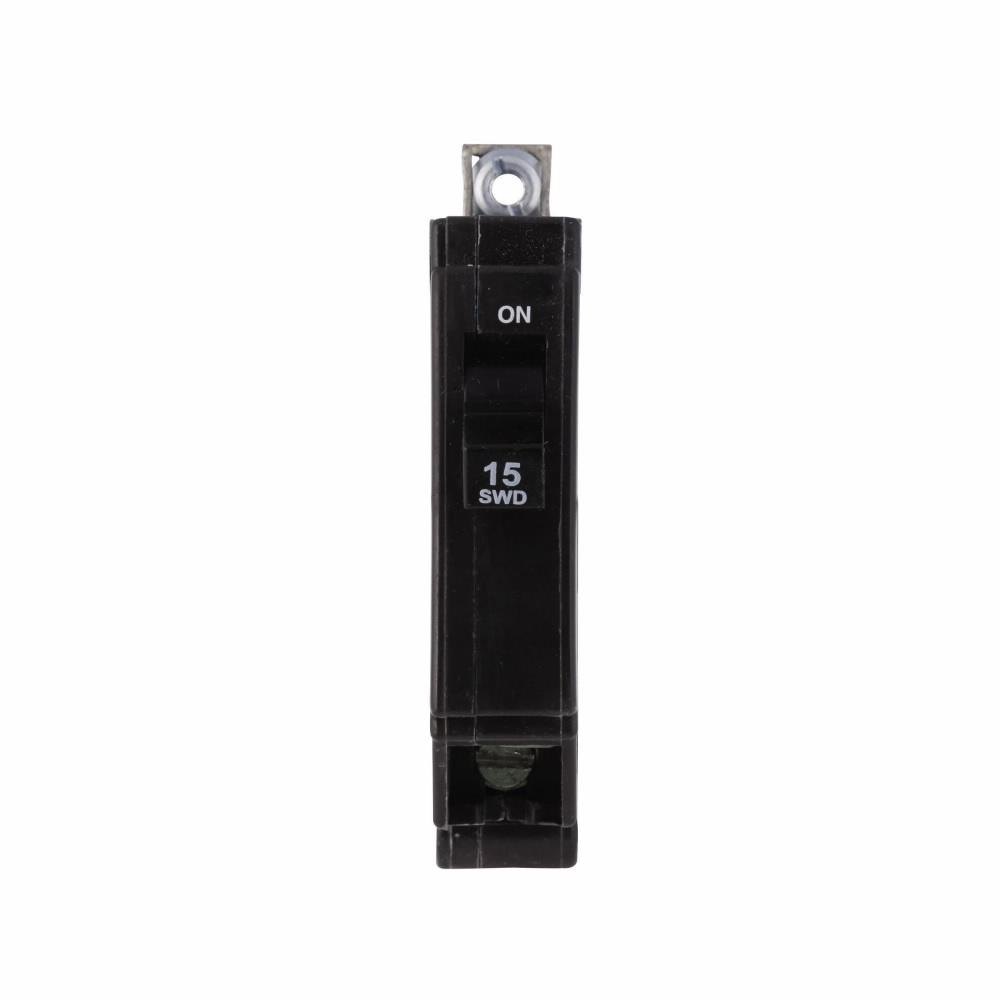

The Eaton CHB115 is a type CH thermal magnetic circuit breaker designed for use with CH Loadcenters. This single-pole breaker provides dependable long-time and instantaneous trip functions for commercial and industrial applications. It features a 10kAIC interrupt rating at 120/240VAC and accommodates 14-8 AWG wiring. The breaker handles trip to a position between ON and OFF and require movement to full OFF to reset the breaker.

• 5 mA Ground Fault
• Built for commercial and industrial applications
• Bolt-on mounting style

Product Highlights

The Eaton CHB115 circuit breaker provides reliable circuit protection in a compact design. It is suitable for use in various panelboards and modules.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CHB115

Technical Specifications

• Catalog Number: CHB115
• UPC: 782113112336
• Product Length/Depth: 0.7 in
• Product Height: 3.2 IN
• Product Width: 3.7 IN
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: CH Loadcenters
• Amperage Rating: 15 A
• Voltage rating: 120/240 V
• Circuit breaker type: CHB
• Interrupt rating: 10 kAIC
• Wire size: #14-8 AWG
• Number of poles: Single-pole
• Type: Circuit breaker
• Brand: Eaton / Cutler-Hammer
• Series: CHB
• Poles: 1
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Box Lugs
• For Use With: Type PB Panelboards, Type PH Panelboards, Meter Panels, Multi-Metering Modules
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-8 AWG (Cu/Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment, Handle Lock
• Standards: CSA C22.2 No. 5, Federal Specification W-C-375b, UL 489
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, SWD Rated, Quick-Make/Quick-Break, Trip-Free Mechanism
• Product Length: 0.7 IN
• Number Of Poles: Single-pole
• Temperature Rating: 60 to 75 deg C
• Trip Type: Long Time and Instantaneous
• Actuator Type: Handle
• Connection Type: Box Lug
• Dimensions: 0.7 in L x 3.7 in W x 3.2 in H
• Standard & Approvals: UL Listed, HACR Rated, Federal Specification W-P-131a
• Application: For type PB and PH panelboards, meter panels and multi metering modules
• Breaking Capacity: 10kA
• No of Pole: 1P
• Rating: 15A
• MPN: CHB115
