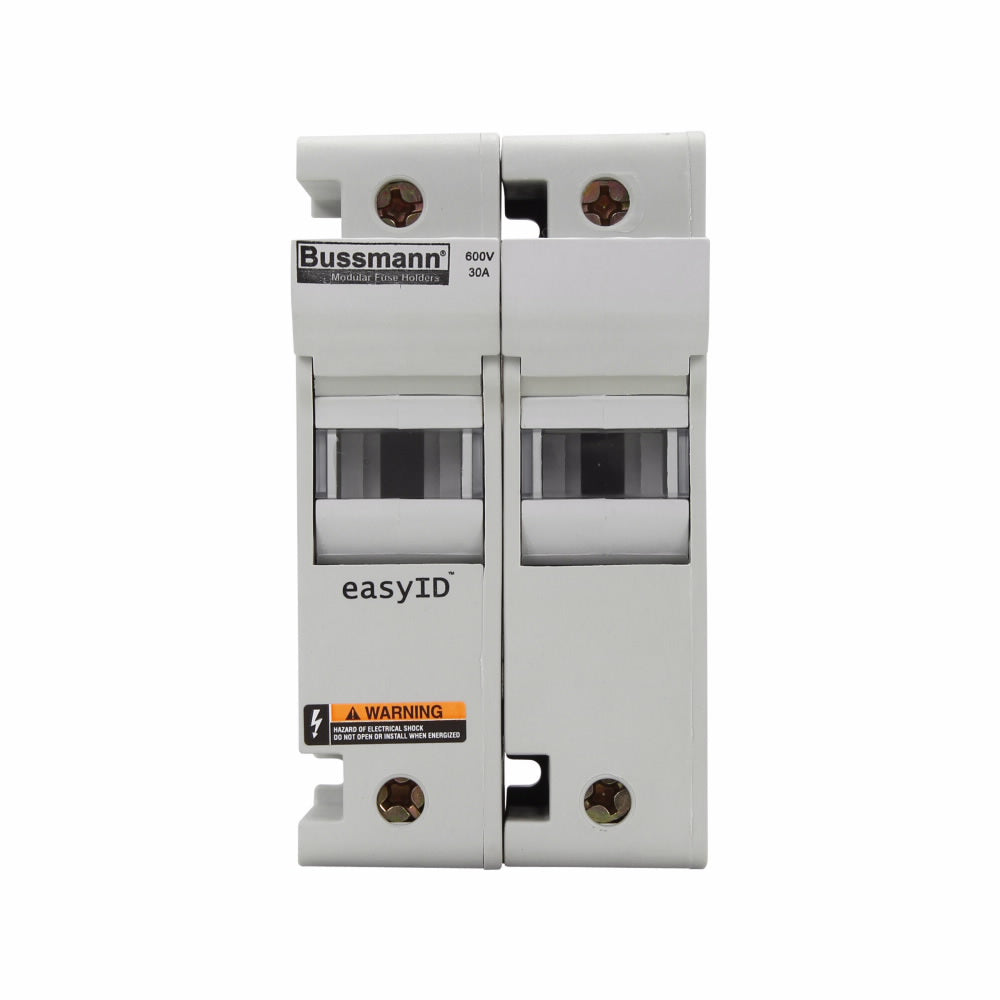

Eaton CH30J2 BUS CLASS J 2P 30A FUSEHOLDER

Product Description

The Eaton CH30J2 is a Bussmann easyID Fuse Holder, ideal for use in electrical assemblies and panels. This finger-safe modular fuse holder accommodates up to thirty amps with a voltage rating of six hundred VAC/VDC. Featuring a two-pole configuration, it supports wire sizes ranging from eighteen to one AWG. The holder is designed for DIN rail or panel mount installations.

• Finger-safe construction for enhanced electrical safety.
• Compatible with LPJ Series Time Delay and JKS Series Fast Acting fuses.
• Constructed from thermoplastic and tin plated copper for durability.

Product Highlights

This product simplifies panel layouts while ensuring compliance with safety standards.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171263084

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 2
• Mounting Type: DIN Rail/Panel
• Fuse Diameter: 0.81 in
• Fuse Length: 2-1/4 in
• Temperature Rating: 85 deg C
• Material: Thermoplastic/Tin Plated Copper
• Standards/Approvals: CE Certified, CSA C22.2 No. 39/6225-01, RoHS Compliant, UL 512
• Suitable For Use With: LPJ Series, JKS Series, DFJ Series
