Eaton CH240 Type CH Circuit Breaker 40 Amp

Product Description

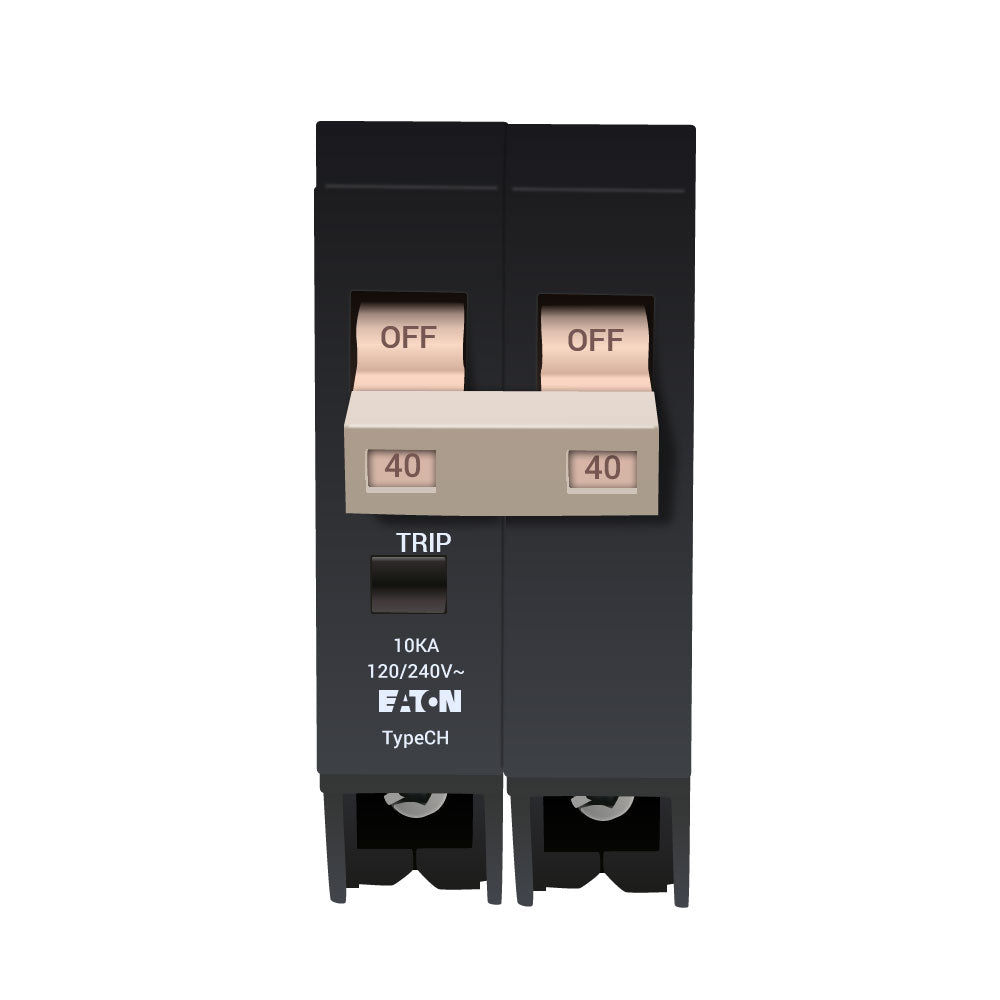

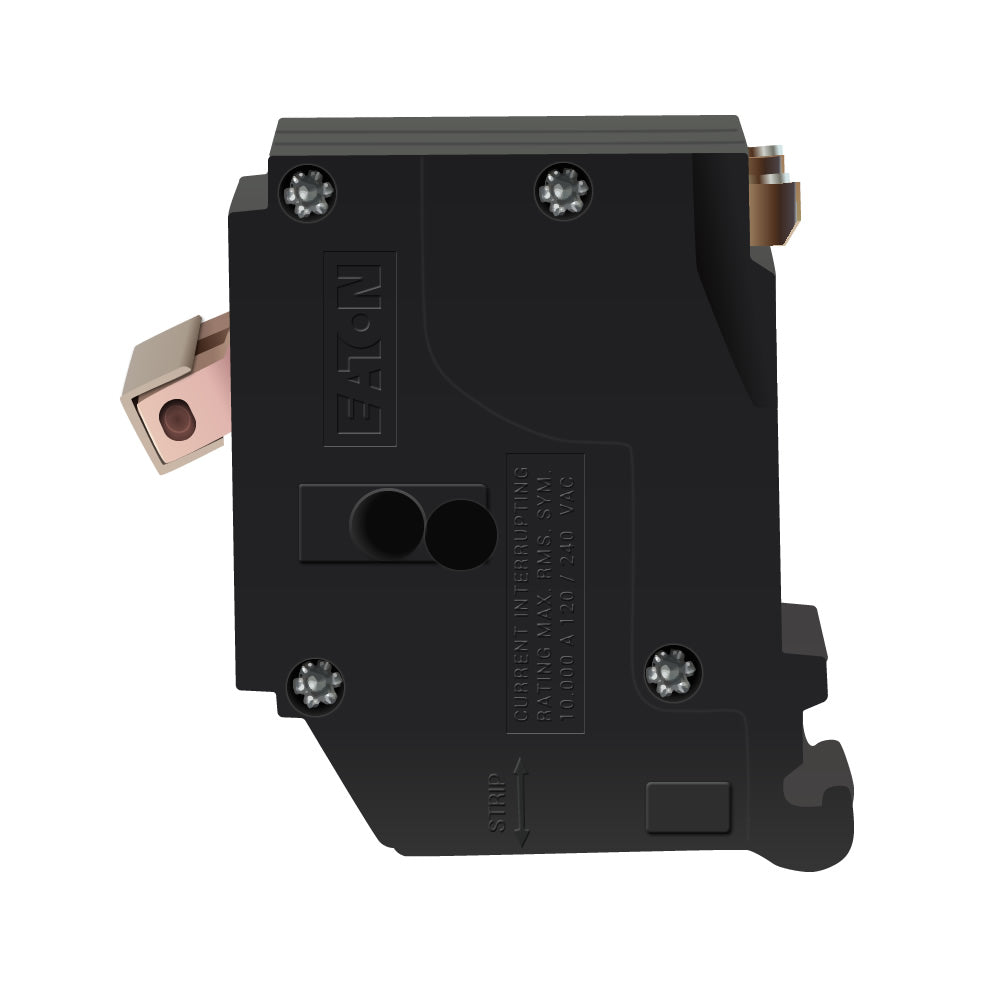

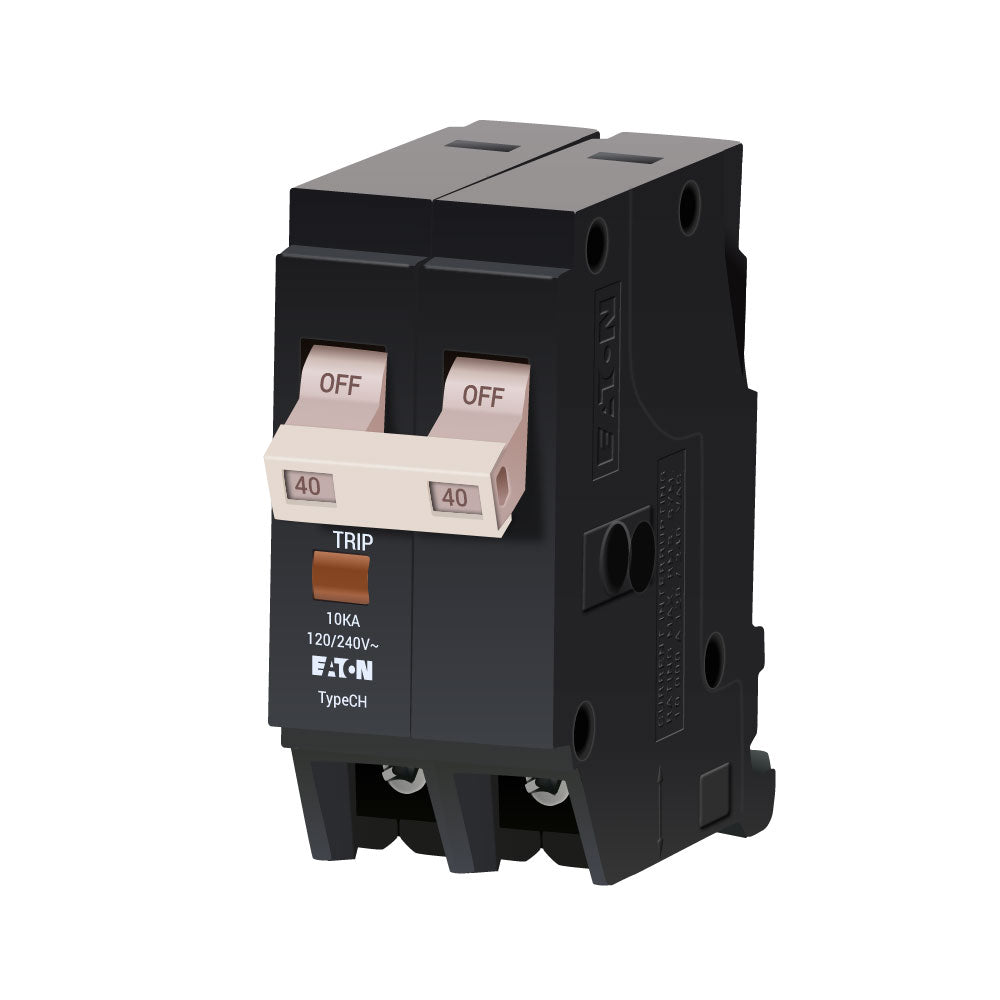

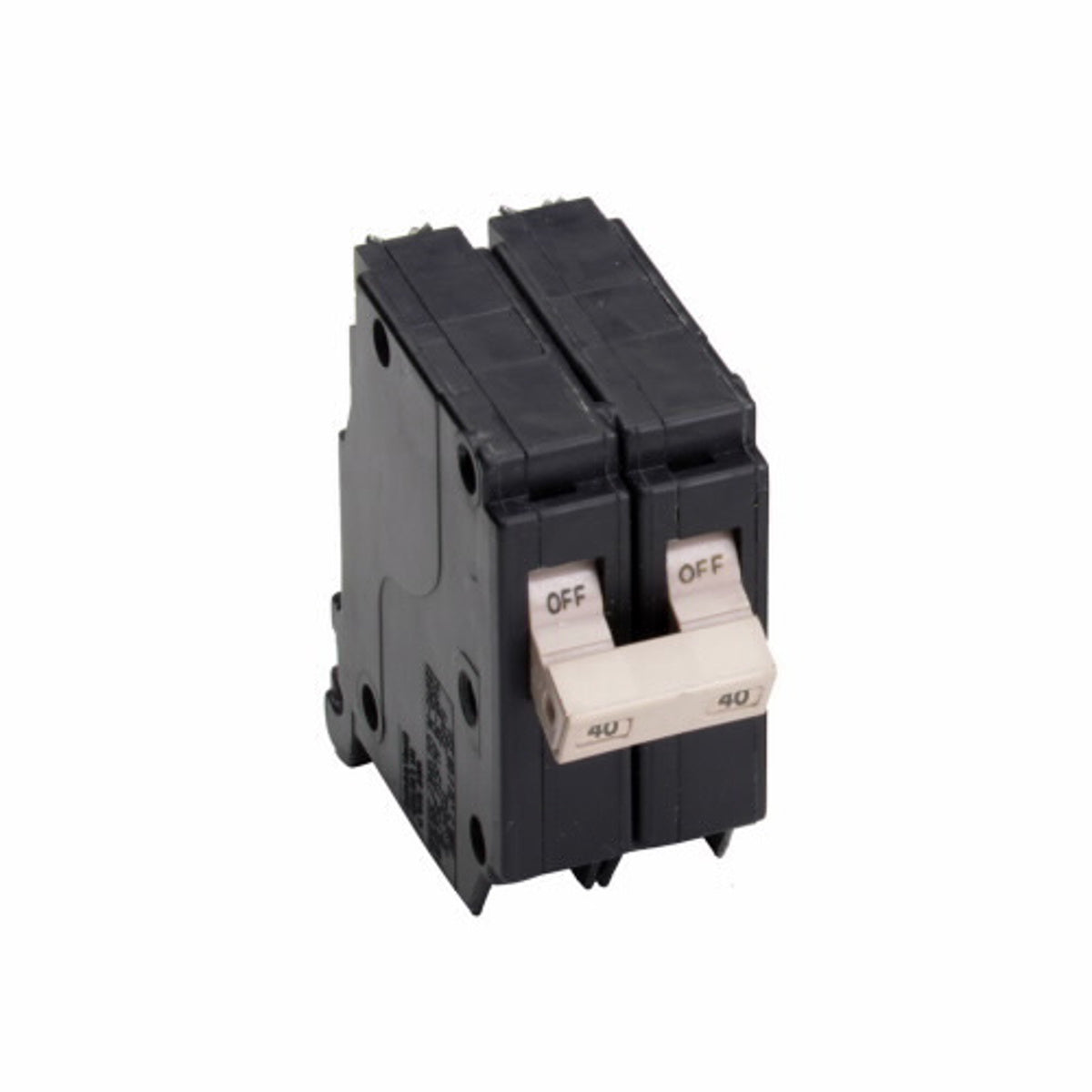

The EATON CH240 is a Type CH circuit breaker rated at 40A and designed for Eaton's Type CH Loadcenters. These 2-pole circuit breakers are 10 kAIC arc fault circuit interrupters and are rated for 120 VAC or 240 VAC applications, providing reliable circuit protection.

• Type CH circuit breaker
• Rated for 120/240 VAC applications
• 10 kAIC interrupt rating

Product Highlights

Eaton CH240 circuit breakers protect house wires from overheating and causing short-circuits.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CH240
• Country of Origin: China

Technical Specifications

• Type: Type CH 3/4-Inch standard circuit breaker
• Manufacturer: Eaton Cutler-Hammer
• Amperage Rating: 40 A
• Number of Poles: Double
• Interrupt Rating: 10 kAIC
• Width: 1 in
• Height: 2-1/2 Inch
• Length: 2 Inch
• Voltage: 240 Volt
• Standard: UL 489
• Trip Type: Common
• Voltage Rating: 120/240 V
• Compliance: HACR Rated
• Certifications: UL 489
• Poles [Features]: 2
• Voltage [Features]: 120/240V
• Amperage [Features]: 40
• Product Type [Features]: Circuit Breaker
• Maximum Amperage (A): 40 A
• Interrupting Rating: 10000 AIC
• Trip Curve: Thermal Magnetic
• Family: CH Series
• AIC Rating: 10kA@240V
• Amperage: 40 Amp
• Phase: 1 Phase
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• UL Listed: True
• Number of Throws: 1
• Suitable For: Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Maximum Amperage: 40 A
• Number of Phases: 1
• Material: ABS/Plastic, Metal
• Break Time: Instantaneous
• Item Height: 4.05 in
• Depth: 3.15in.
• Wire Size: #10-1/0 AWG Cu/Al
• Used With: Type CH Loadcenters
