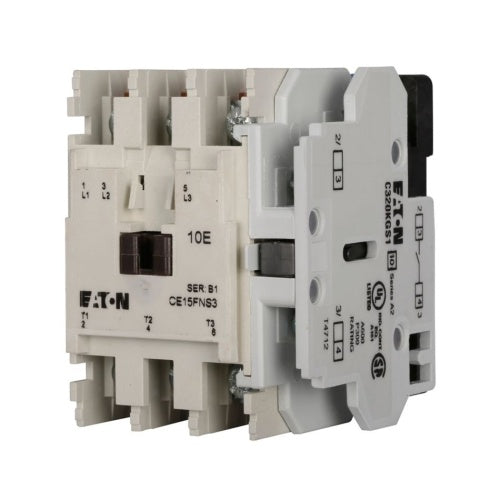

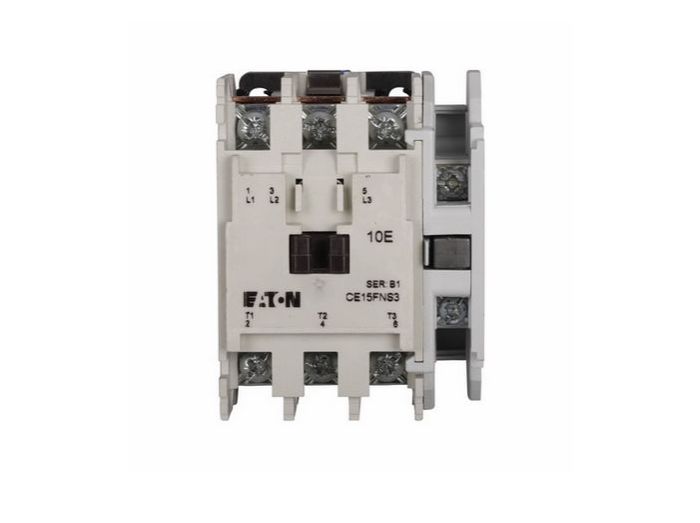

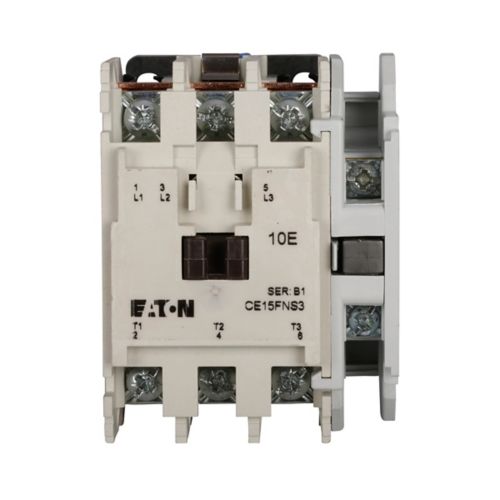

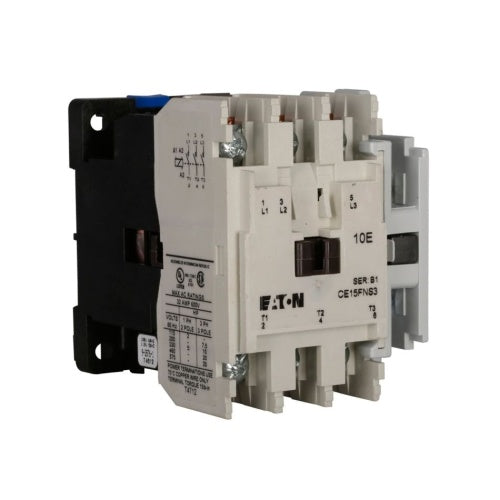

Eaton CE15FN2BB XT IEC Contactor 32A

Product Description

The EATON CE15FN2BB is an XT IEC contactor, designed for various applications. This contactor features a 32A amperage rating and operates at 220-240 Vac and 50-60 Hz. It is suitable for switching motor loads and provides excellent conductivity and superior resistance to welding and arc erosion. The contactor is a two-pole, non-reversing device with no overload relay.

• 32A amperage rating
• Operates at 220-240 Vac, 50-60 Hz
• Steel mounting plate

Product Highlights

The EATON CE15FN2BB is a reliable contactor suitable for motor load switching with robust construction and efficient operation.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CE15FN2BB

Technical Specifications

• Product Name: Eaton XT IEC contactor
• Catalog Number: CE15FN2BB
• UPC: 782113410272
• Product Length/Depth: 3.25 in
• Product Height: 2.96 in
• Product Width: 1.8 in
• Compliances: DIN VDE 0600 ISO 9000
• Certifications: IEC Rated UL Listed CSA Certified
• Catalog Notes: No enclosure
• Product Type: Contactors
• Amperage Rating: 32A
• HP rating - max: 5 hp
• Number of poles: Two-pole
• Type: AC Non-Reversing IEC
• Frequency rating: 50-60 Hz
• Frame size: 90 mm
• Coil Voltage: 240 VAC
• Continuous ampere rating: 32 A
• Relay: No overload relay
• Series: Freedom
• Operation: Non-reversing
• Mounting method: Steel mounting plate
• Starter Frequency: 50 Hz
• Component: IEC Contactor
• Starter Reversing Capability: Non-Reversing
• Starter Poles: Two Pole
• Starter Amperage: 32 Amp
• Manufacturer: Eaton
• Sub Component: IEC Non-Reversing Contactor
• Starter Class: Freedom
• Starter Enclosure Type: Open With Metal Mounting Plate
• Nominal Coil Voltage: 240 VAC
• Coil Type: Magnetic
• Poles: 2NO
• Frame Size: F
• Auxiliary Contact: None
• Termination: Box Lug
• Overload Relays: C306, C316
• General Purpose (AC1): 32 A
• UL Motor Switching (AC3): 32 A
• Approvals: CSA, UL
• Net Weight: 1.4 lbs
• Gross Weight: 1.4 lbs
