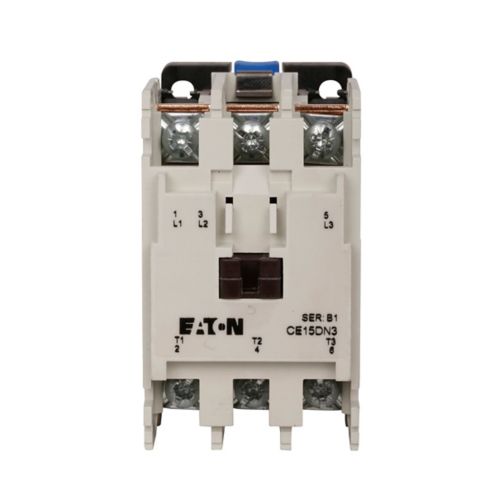

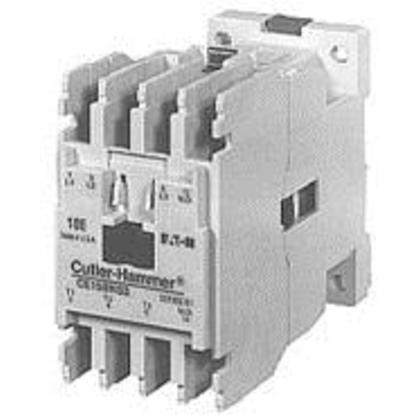

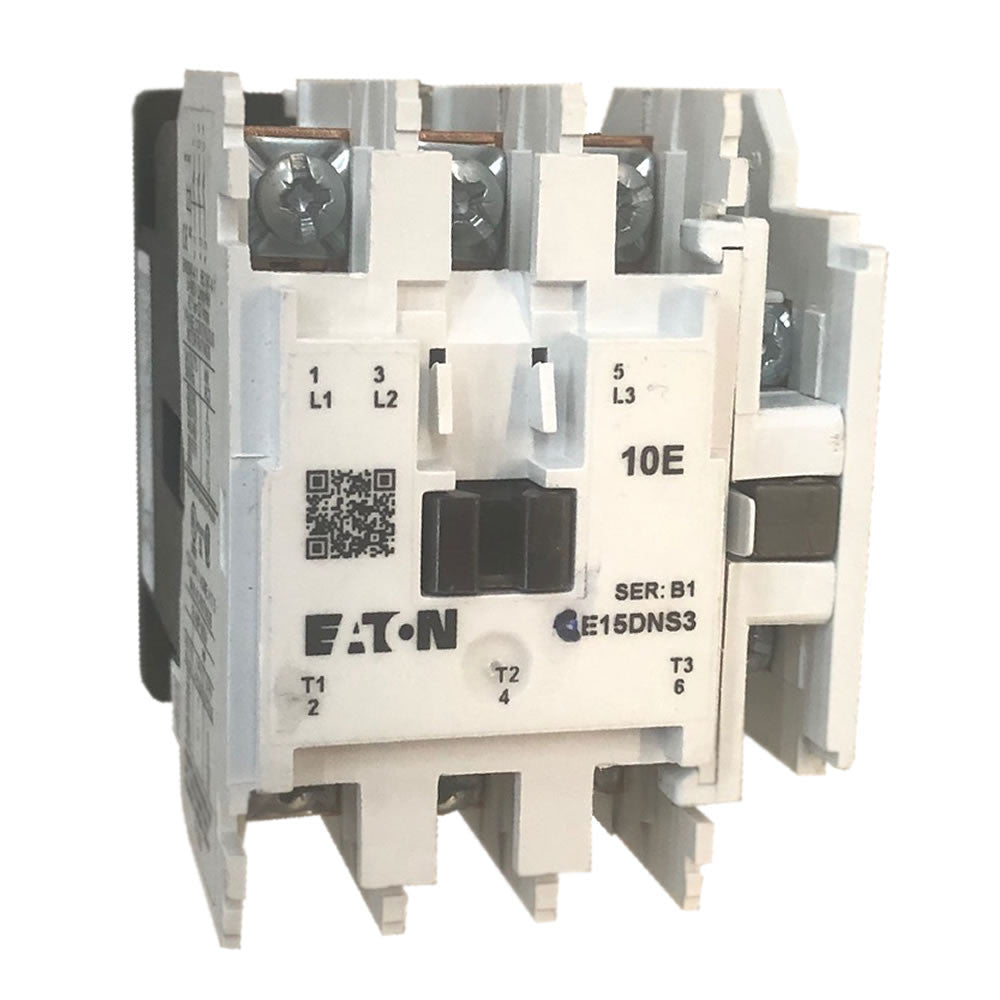

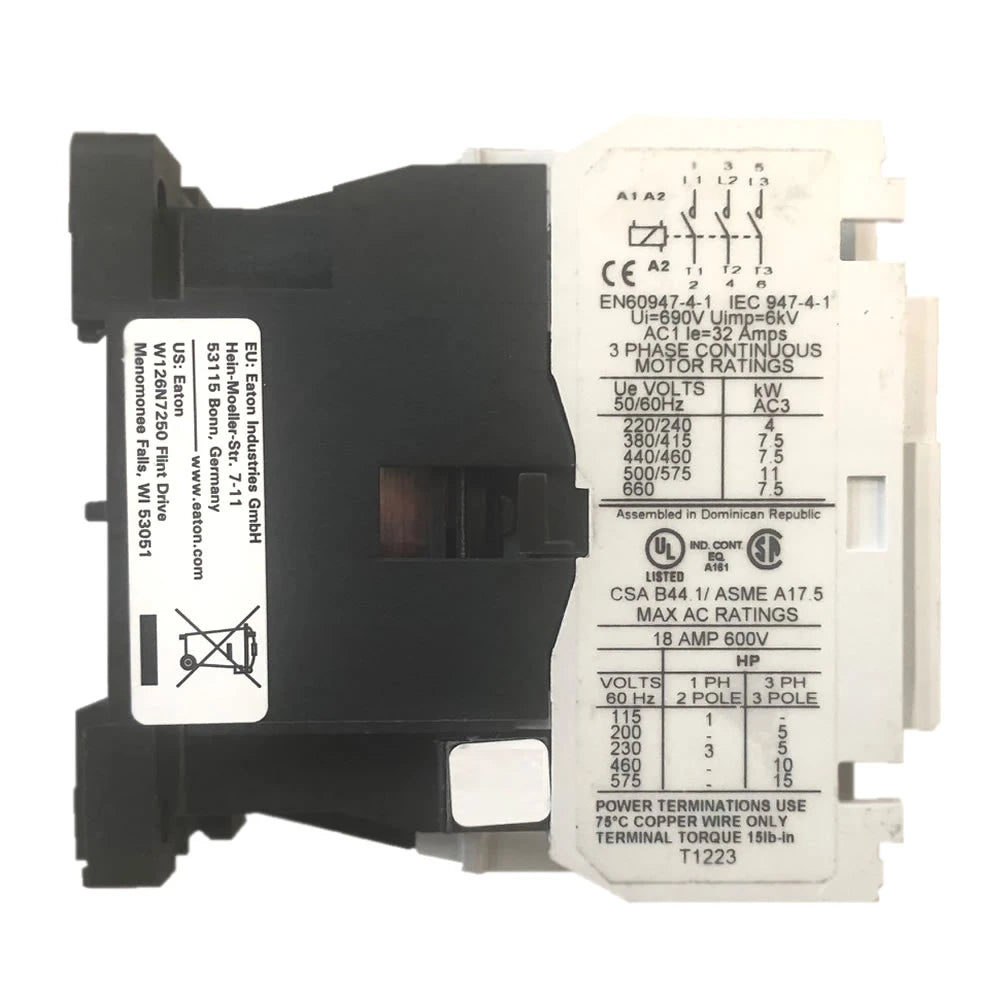

Eaton CE15DNS3BB XT IEC Contactor 18 A

Product Description

The Eaton CE15DNS3BB XT IEC Contactor is rated to 18A and features a 220-240 Vac, 50-60 Hz coil and a 1NO contact configuration. Designed for electrical assemblies, panels, and EOEM applications, this three-pole, non-reversing contactor excels in performance and durability. It has a compact design that optimizes space utilization and superior electrical conductivity.

• Side mounting method for easy installation and removal.
• Metal base and screw terminals.
• Suitable for motor and power control equipment applications.

Product Highlights

This Eaton contactor is a reliable and efficient component designed to meet the demands of various industrial applications. It is built to withstand harsh environmental conditions.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CE15DNS3BB

Technical Specifications

• Amperage Rating: 18A
• HP rating - max: 3 hp
• Number of poles: Three-pole
• Type: Contactor
• Frequency rating: 50-60 Hz
• Frame size: 55 mm
• Coil voltage: 220-240 Vac, 50-60 Hz
• Contact configuration: 1NO
• Continuous ampere rating: 18 A
• Relay: No overload relay
• Series: Freedom
• Operation: Non-reversing
• Mounting method: Side
• Product Length/Depth: 3.25 in
• Product Height: 2.96 in
• Product Width: 1.8 in
• Product Type: Contactors
• Catalog Notes: No enclosure
• Compliances: DIN VDE 0600 ISO 9000
• Certifications: IEC Rated UL Listed CSA Certified
• Brand: Eaton- Cutler Hammer
• Condition: New
• Amperage: 18 AMP
• Horsepower: 5 H.P. at 230 volt and 10 H.P. at 460 volt
• Poles: 3
• Auxiliary Contacts: Side mounted auxiliary with 1 normally open contact
• Terminals: Screw terminals
• Base: Metal base
• UNSPSC: 39121529
• Application: Electrical Assemblies, Panels and EOEMs Applications
• Mounting Type: Panel/Side
• Terminal Type: Screw
• Enclosure Type: Open
• Contact Type: Auxiliary
• Operating Temperature: -5 to 65
• Size: 55
• Maximum Load Current: 18
• Manufacturer Part Number: CE15DNS3BB
• XT IEC Series: XT IEC Series
• UPC Code: 782113778792
