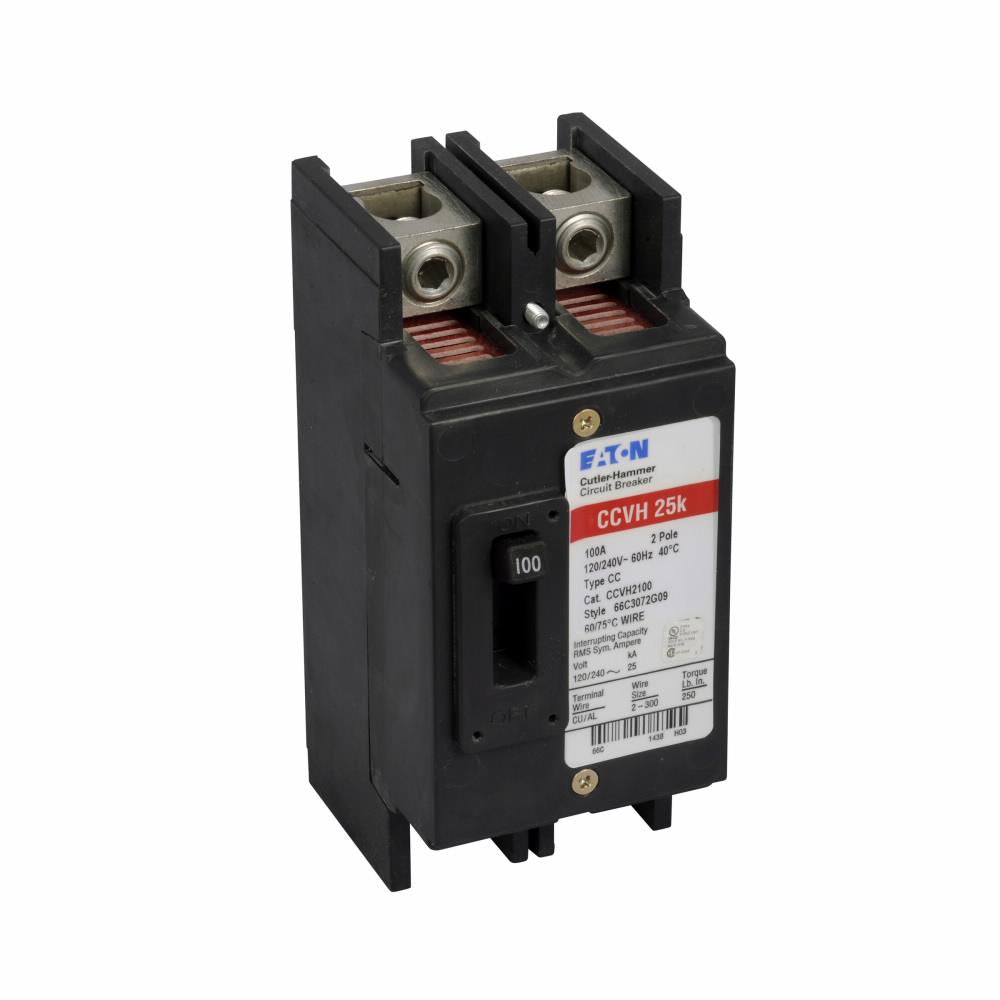

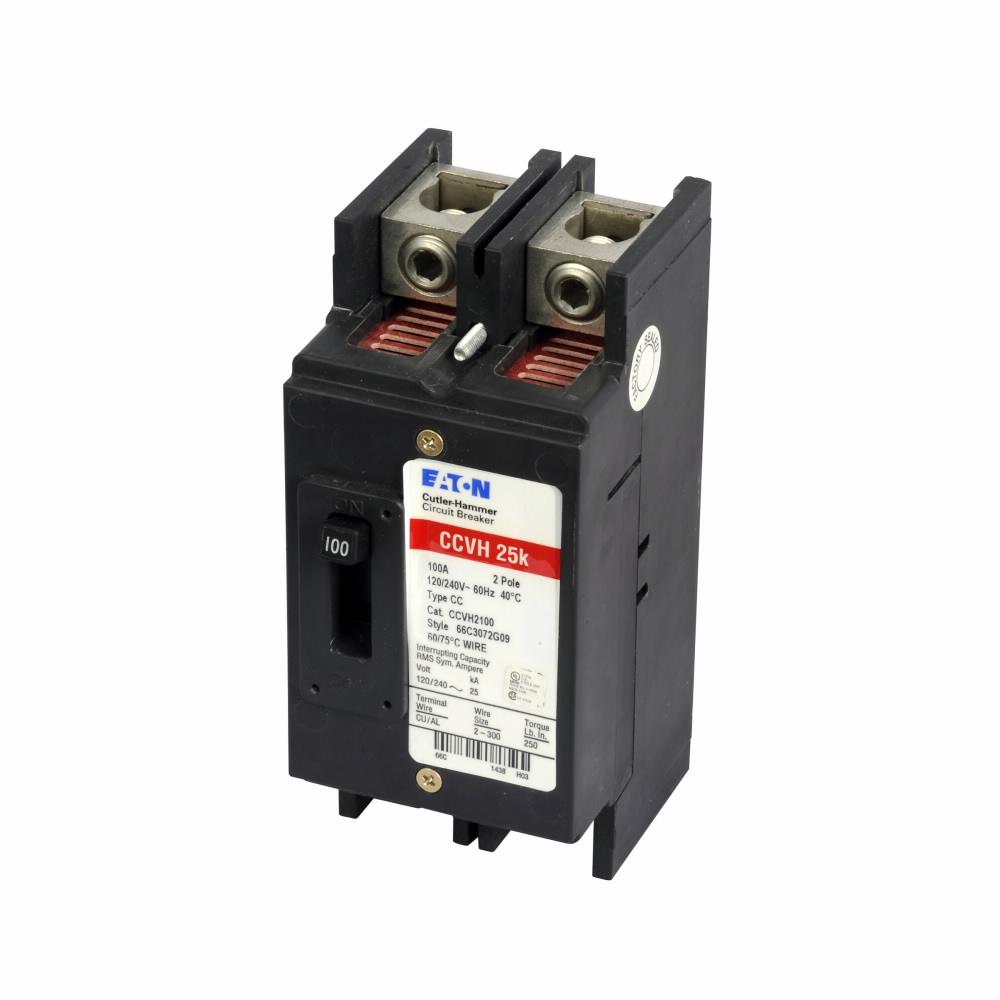

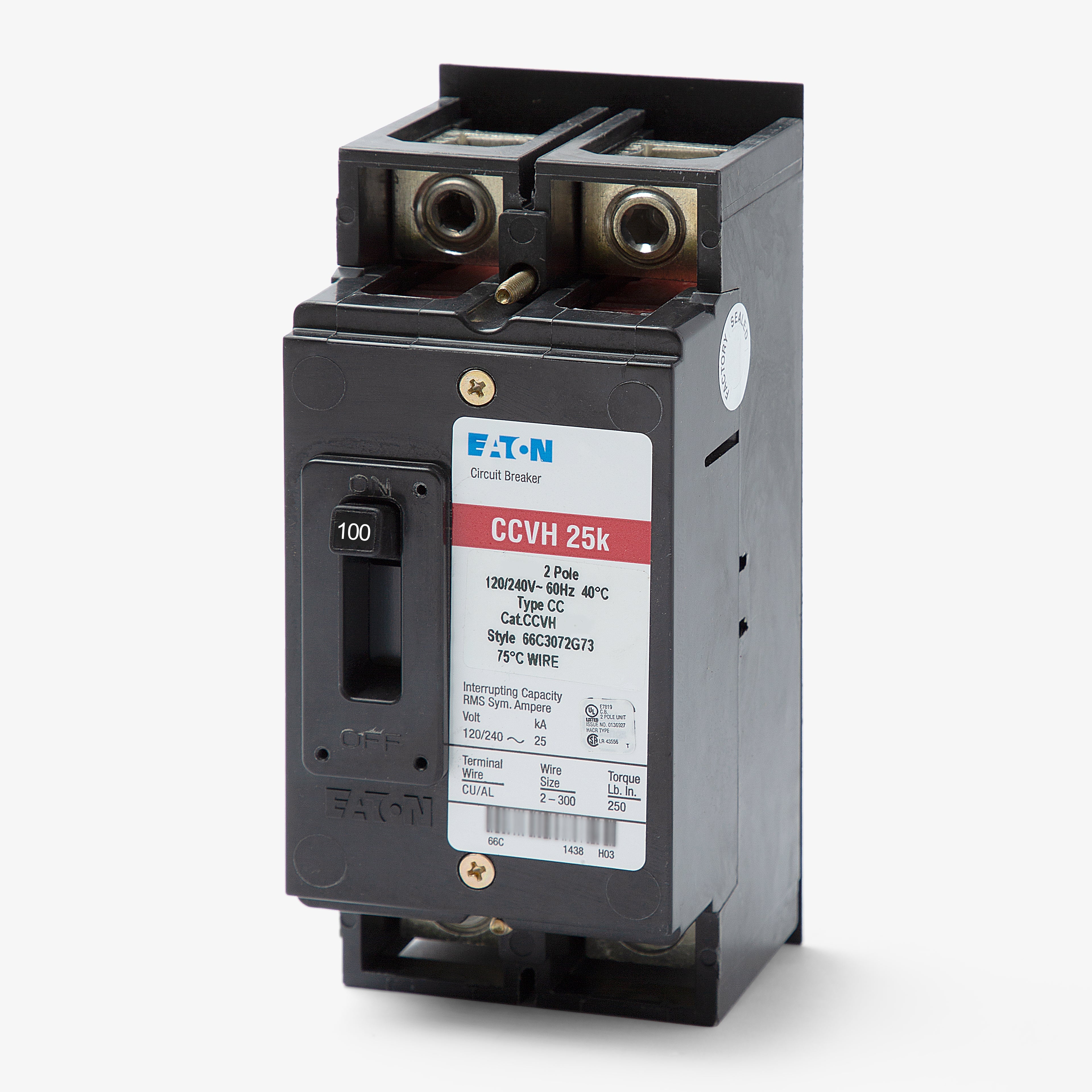

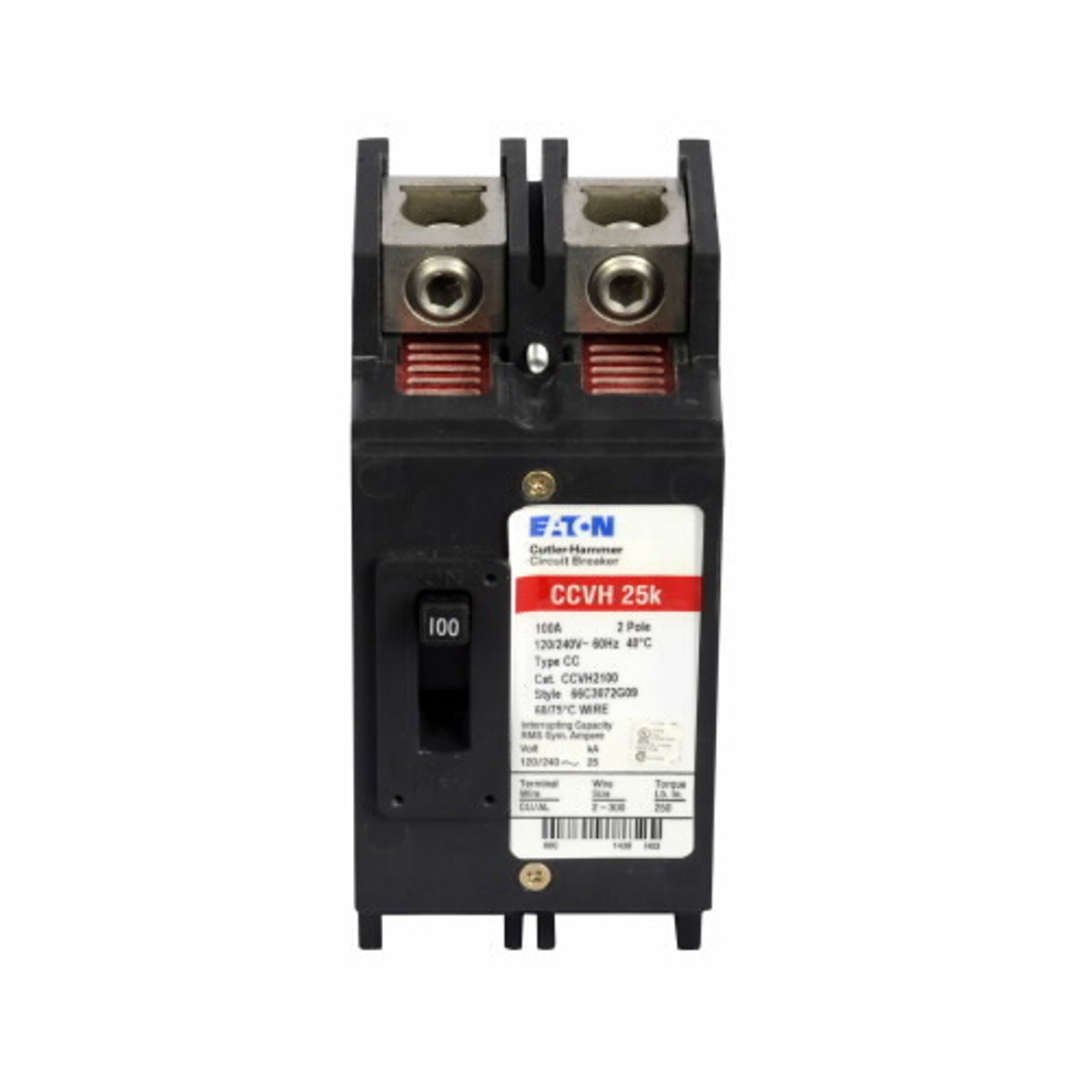

Eaton CCVH2100 CCVH breaker 100A 2 pole

Product Description

The Eaton CCVH2100 is a Type CCV Tenant Main Circuit Breaker designed for main or emergency disconnect applications. This two-pole breaker provides 100 A protection with a 25 kAIC interrupt rating, operating at 120/240 V. It accommodates wire sizes from #2/0 AWG to 300 kcmil (Cu/Al) and is compatible with Type ECC unit enclosures, making it suitable for group metering stacks.

• 100 A, two-pole design with a 25 kAIC interrupt rating.
• Operates at 120/240 V and accepts #2/0 AWG to 300 kcmil copper or aluminum wire.
• Designed as a tenant main circuit breaker for use in Type ECC unit enclosures.

Product Highlights

This Eaton CCVH2100 circuit breaker offers reliable 100A, 2-pole protection for tenant main applications, featuring a 25 kAIC interrupt rating and broad wire compatibility.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: CCVH2100
• Country of Origin: Dominican Republic

Technical Specifications

• Type: Tenant Main Circuit Breaker
• Brand: Eaton
• Voltage Rating: 120/240 V
• Amperage Rating: 100 A
• Wire Size: 2/0 AWG - 300 kcmil Cu/Al
• Number of Poles: 2
• Interrupt Rating: 25 kAIC
• Certifications: UL 489, CSA C22.2 No. 5
• Application: Generation - Conventional Energy - Conventional Energy|Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other|Generation - Renewable Energy - Alternative Energy|Datacenters - IT Space: CI and Hyper Converged
• Made in USA: No
• Phase: 1
• Mounting Type: Surface
• Enclosure Type: NEMA 1/3R
• Connection Type: Line/Load
• Temperature Rating: 60 to 75 deg C
• Series: CCV
• Enclosure Compatibility: Type ECC unit enclosures, Eaton Group Metering Stacks (1MP, 1MM, 3MM)
• Frame Type: CCVH
• Line Side Terminal Method: Lugs
• Load Side Terminal Method: Lugs
• Category: Circuit Breakers
• Trip Type: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch
• Construction Features: HACR Rated, High Interrupting Capacity, Tenant Main
• Voltage Type: AC
