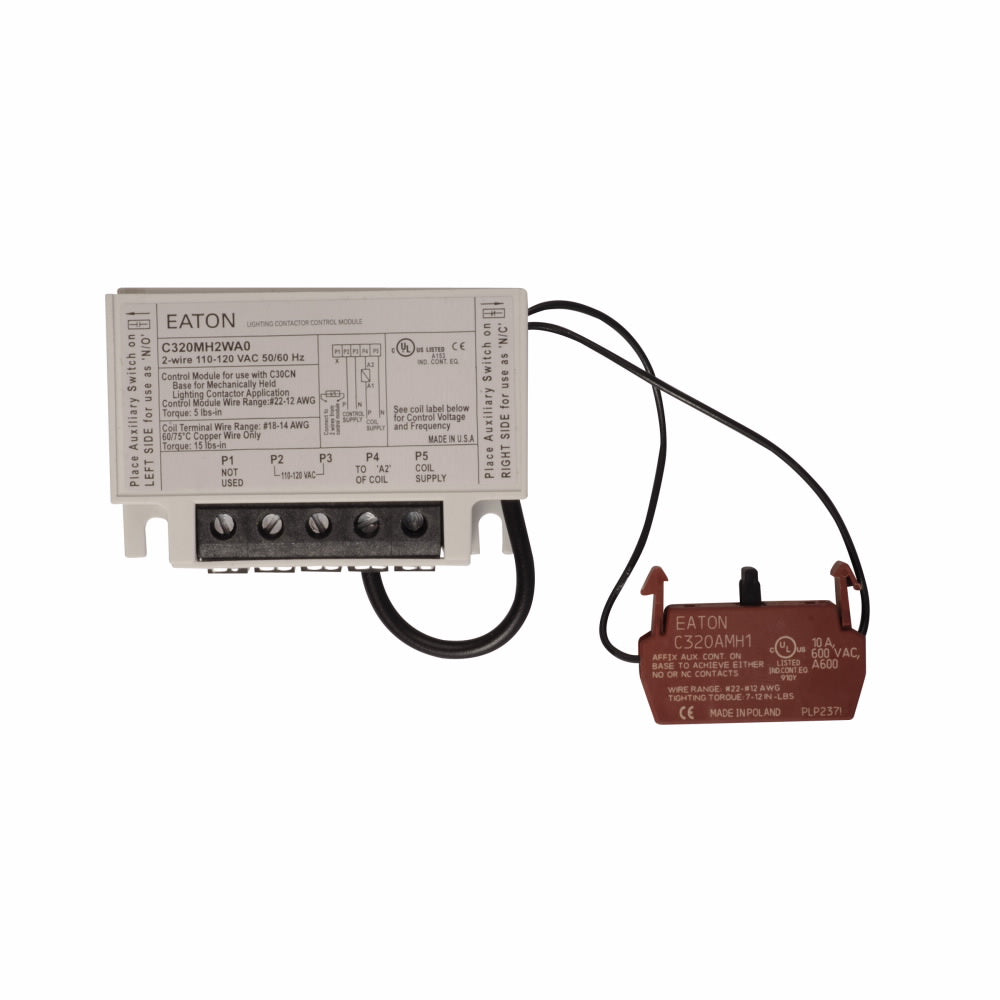

EATON C320MH2WA0 Mechanically Held Module Kit 30A 2-Wire 110-120V

Product Description

The EATON C320MH2WA0 is a mechanically held module kit designed for use with the C30 lighting contactor. This module operates on control voltages from one hundred ten to one hundred twenty volts alternating current (VAC) and is compatible with coil voltages ranging from twenty-four to two hundred seventy-seven VAC. The contactor has a thirty amp contact rating and employs a two-wire configuration.

• Designed to convert electrically held contactors to mechanically held units.
• Suitable for coil voltages of two hundred seventy-seven VAC and below.
• Includes control module, latch cover, latch, auxiliary contacts, and installation instructions.

Product Highlights

The compact design of the EATON C320MH2WA0 allows for efficient installation and use in various commercial and institutional power distribution applications.

Product Information

Standard Information

• Manufacturer: EATON
• Catalog Number: C320MH2WA0

Technical Specifications

• Voltage Control: 110 to 120 VAC
• Coil Voltage: 24 to 277 VAC
• Contact Rating: 30 A
• Configuration: 2-Wire
• Dimensions: 3-3/4 x 1-3/4 x 3-3/4 inches
• Application: Suitable for use with C30 lighting contactor
• Country of Origin: United States
• Standards/Approvals: cUL Listed
