Eaton C320KGT5 Auxiliary Contact 4NC

Product Description

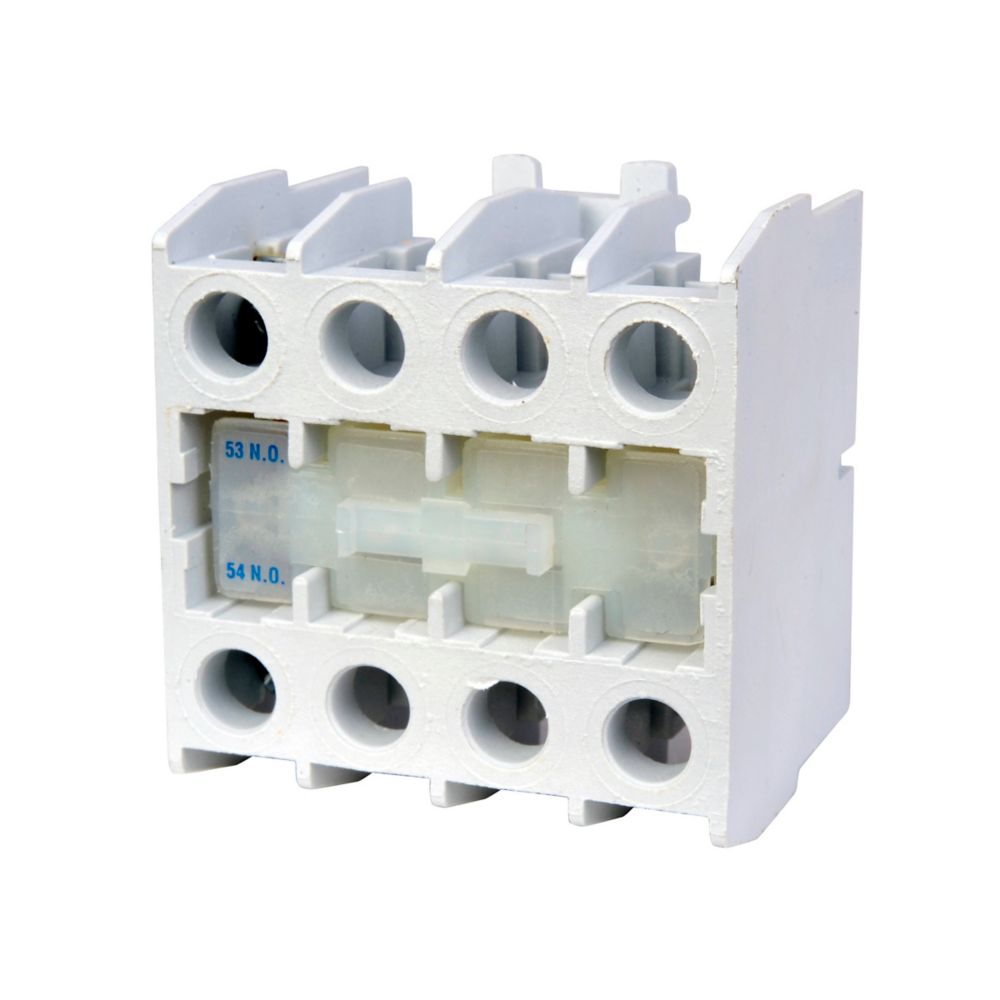

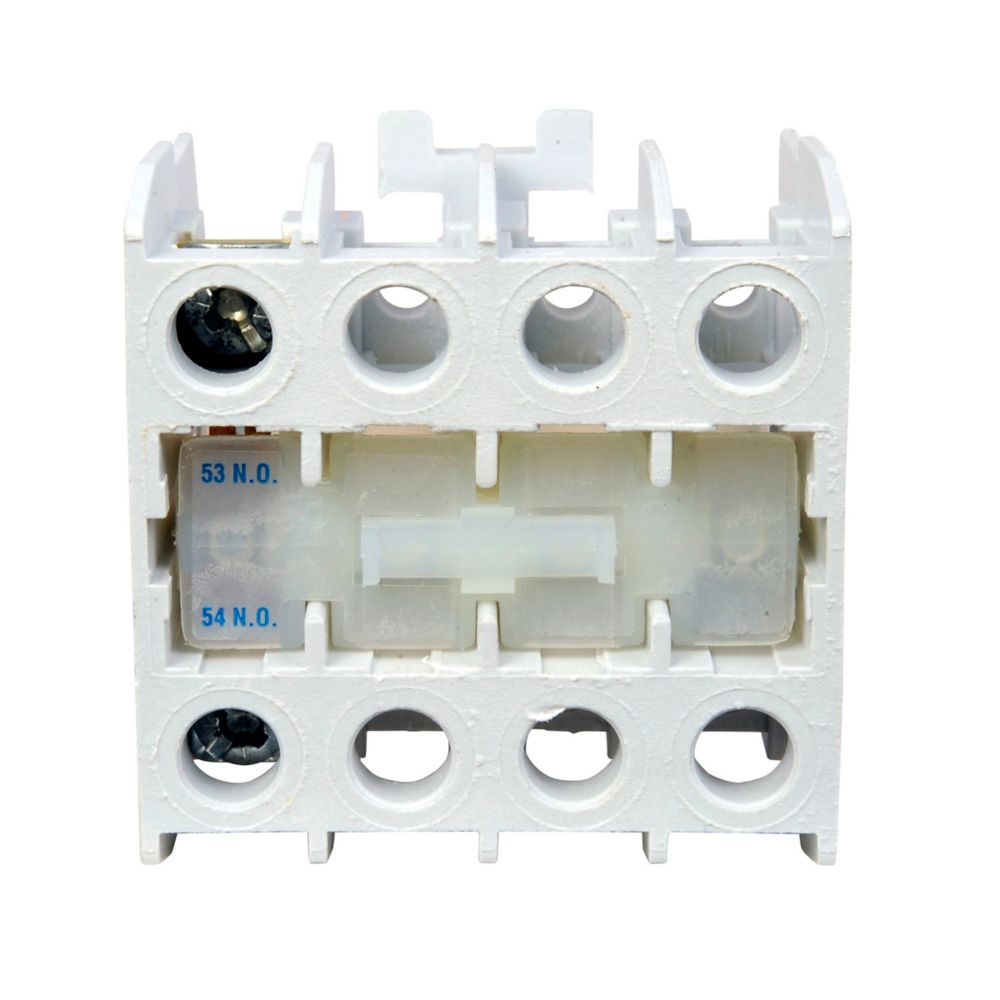

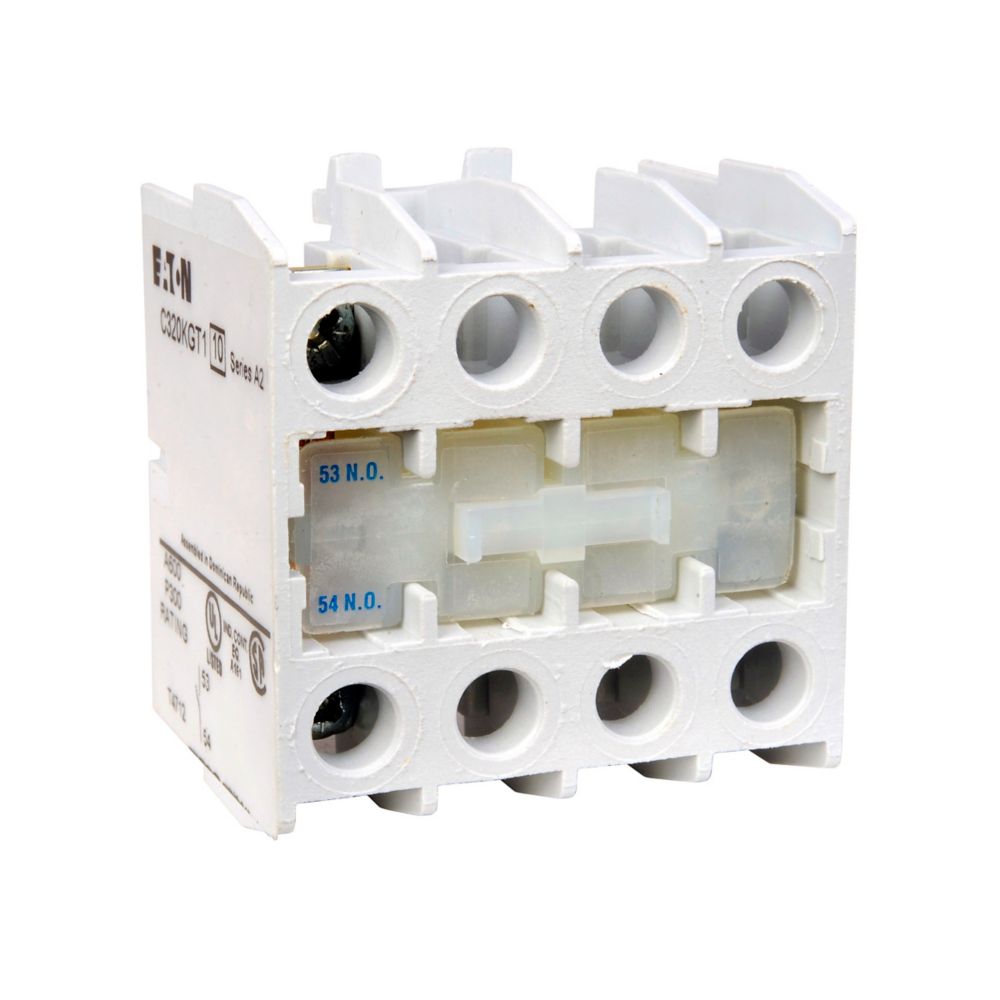

The Eaton C320KGT5 is an auxiliary contact used on starters and contactors. It features a top mounting method and a 4NC contact configuration. It is designed for use with size 00-2 AN16 starters and contactors. The C320KGT5 has a current rating of 10 Amps and a voltage rating of 600VAC.

• Used on Starter and Contactors
• 4NC contacts
• Top mounting

Product Highlights

The Eaton C320KGT5 auxiliary contact is designed for use with starters and contactors. It features a top mounting method and a 4NC contact configuration.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C320KGT5
• Country of Origin: United States

Technical Specifications

• Part Number: C320KGT5
• Manufacturer: Eaton - Cutler Hammer
• Family: Freedom Series
• Category: Contactors
• Type: C320
• Used With: Used on Starters and Contactors
• Accessories: Freedom NEMA
• Mounting Method: Top
• Contact Configuration: 4 NC
• Series: Freedom
• Product Name: Eaton Freedom NEMA auxiliary contact
• Catalog Number: C320KGT5
• UPC: 782113413600
• Product Length/Depth: 1.9 in
• Product Height: 2.2 in
• Product Width: 1.9 in
• Certifications: cUL Listed
• Catalog Notes: NCI = Normally Closed early opening designed for use in reversing applications. EC = Early Closing. LO = Late Opening.
• Product Type: Accessory
• Amperage: 10
• Voltage: 600VAC
• Poles: 2
• Approval: cUL
• For Use With: Size 00-2 AN16 Starters and Contactors
• Nema Size: 00 to 2
• Mounting: Top
• Brand: Eaton - Cutler Hammer
• Model: C320KGT5
