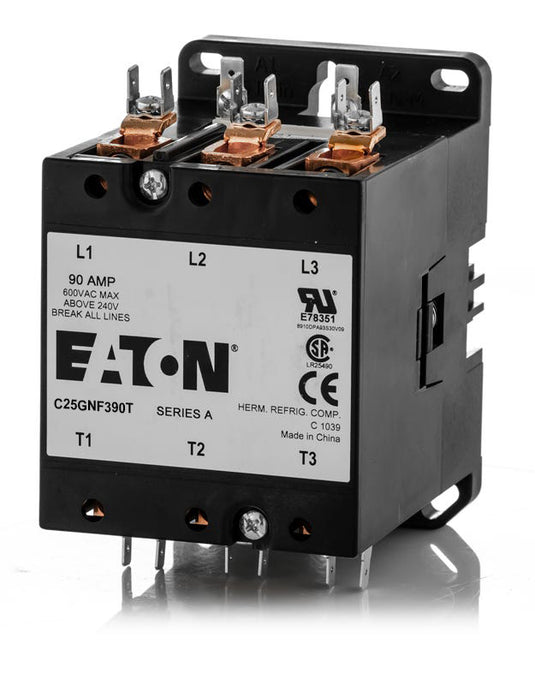

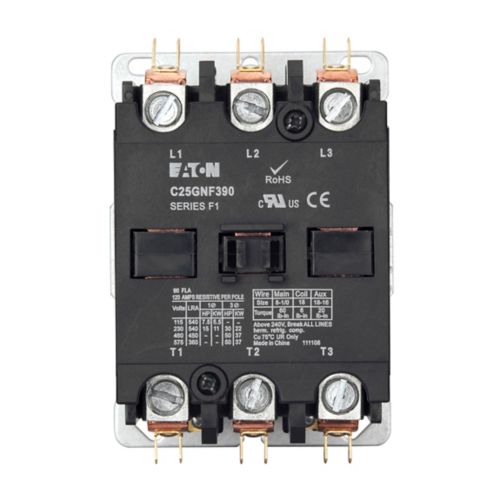

Eaton C25GNF390T Definite Purpose Contactor 120A

Product Description

The Eaton C25GNF390T definite purpose contactor, rated at 120A, is designed for motor control systems. This three-pole, non-reversing contactor features an open enclosure with a metal mounting plate. It has a coil voltage of 24 Vac at 50/60 Hz and includes quick connect auxiliary contacts. It is suitable for HVAC, refrigeration, and diverse OEM markets.

• Three-pole contactor with a 120A inductive full load rating.
• Features a coil voltage of 24 Vac at 50/60 Hz.
• Open enclosure with metal mounting plate for easy installation.

Product Highlights

The C25GNF390T contactor is ideal for definite purpose motor control applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C25GNF390T

Technical Specifications

• Product Name: Eaton definite purpose contactor
• Catalog Number: C25GNF390T
• UPC: 782114100196
• Product Length/Depth: 3.97 in
• Product Height: 3.75 in
• Product Width: 2.63 in
• Product Type: Definite purpose contactor
• Accessories: Mounting plate
• Amperage Rating: 120A
• Number of poles: Three-pole
• Options: Individual pkg.
• Type: Non-reversing
• Auxiliary contacts: Quick connect (side-by-side)
• Coil: 24 Vac, 50/60 Hz
• Coil voltage: 24 Vac, 50/60 Hz
• Contact configuration: 1 NO, 1 NC
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 120 A
• Model: Contactor
• Resistive load: 140 A
• Series: F1
• Terminals: Box lugs (posidrive setscrew)
• Connection: Quick
• Brand: Eaton
• Voltage: 600VAC
• Poles: 3
• Phase: 3
• Approval: UL, CSA, NEMA
• Frame Type: C25
• Connection Type: Pressure Plate
• Terminal Connection: Box Lugs
• For Use With: Definite Purpose Motor Control Systems
• Standards: RoHS
• Action: Non-Reversing
• Mpn: C25GNF390T
• Enclosure Type: Open
• Contact Rating (Current): 120 A
• Switching Voltage: 575VAC - Max
• Part Status: Active
• Termination Style: Screw Terminal
• Mounting Type: Chassis Mount, DIN Rail
• Operating Temperature: -25 C ~ 70 C
• Amps - inductive: 90A
• Amps - resistive: 120A
