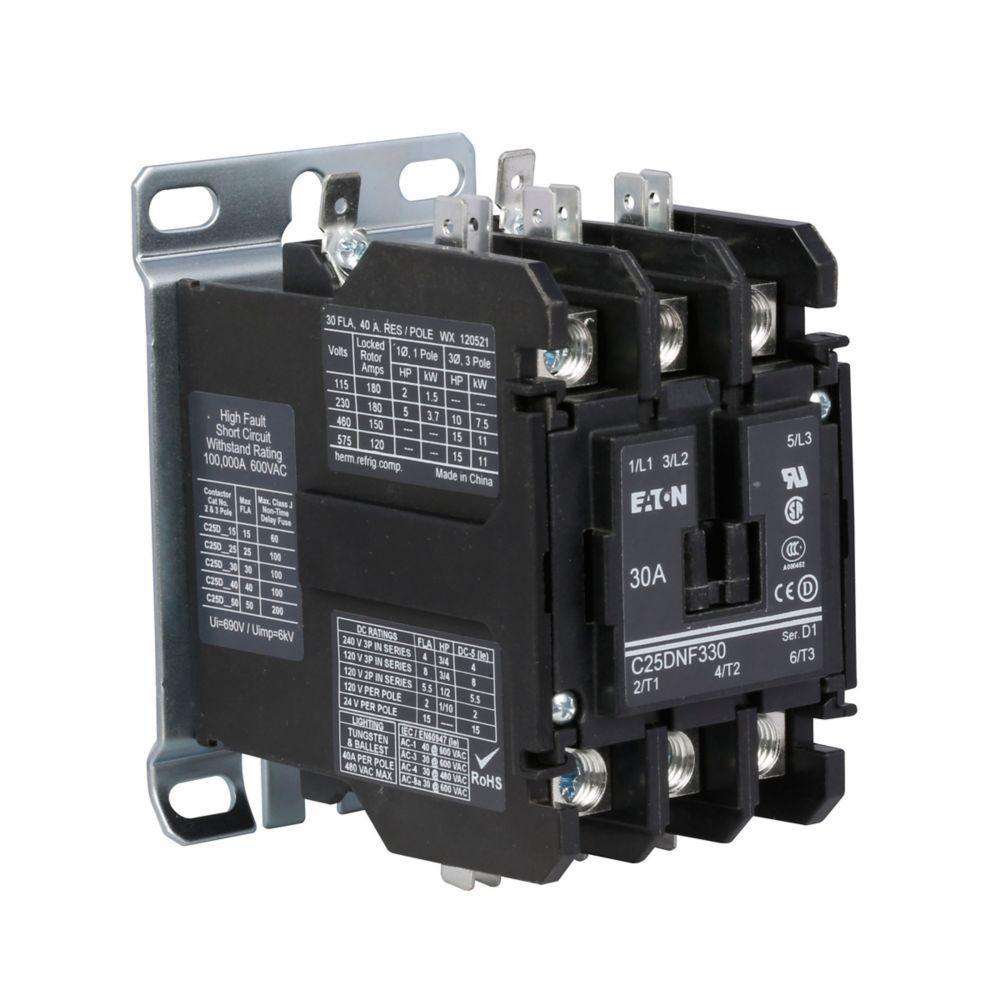

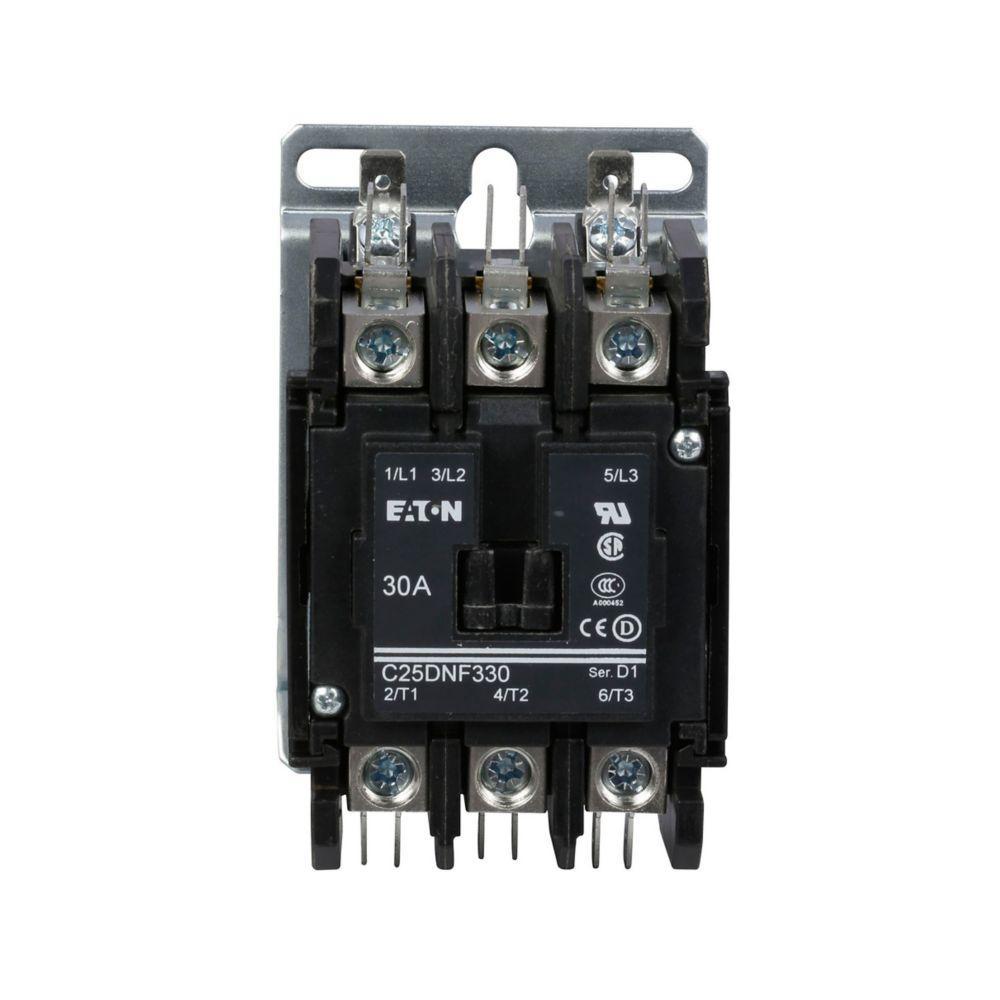

Eaton C25DNF330T Definite Purpose AC Contactor 30 A

Product Description

The EATON C25DNF330T definite purpose contactors are electrically operated switching devices designed for the HVAC industry. It features a 24 VAC coil, a maximum load current of 30 A inductive/40 A resistive, and a 3 pole configuration. The contactor has a double break contact and quick-connect (side by side) connection.

• The universal mounting plate eliminates changing hole patterns when replacing competitive devices
• Variety of terminal styles allows product to meet all specific application needs
• Snap-on accessories require no tools for hassle-free installation

Product Highlights

This contactor offers easy maintenance with quick coil changing ability and non-position sensitive mounting for fast setup.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: C25DNF330T

Technical Specifications

• Connection Type: Quick-Connect (Side by Side)
• Contact Type: Double Break
• Enclosure Type: Open
• Frequency Rating: 50/60 Hz
• Mounting Type: Surface
• Operating Temperature: 150 deg F Ambient
• Terminal Type: Box Lug (Posidrive Setscrew)
• Type: Non-Reversing
• Coil Voltage: 24 VAC
• Maximum Load Current: 30 A Inductive/40 A Resistive
• Number of Poles: 3
• Compliances: RoHS Compliant
• Certifications: CSA Certified UL Recognized UL Listed
• Product Type: Definite purpose contactor
• Amperage Rating: 30A
• Auxiliary contacts: Pressure plate and quick connect
• Coil: 24 Vac, 50/60 Hz
• Contact configuration: 1 NO, 1 NC
• Enclosure: Open with metal mounting plate
• Frame size: 15-50 A, two-pole and three-pole
• Inductive full load: 30 A
• Model: Contactor
• Resistive load: 40 A
• Terminals: Box lugs (posidrive setscrew) and quick connect terminals (side-by-side)
• Connection: Quick
