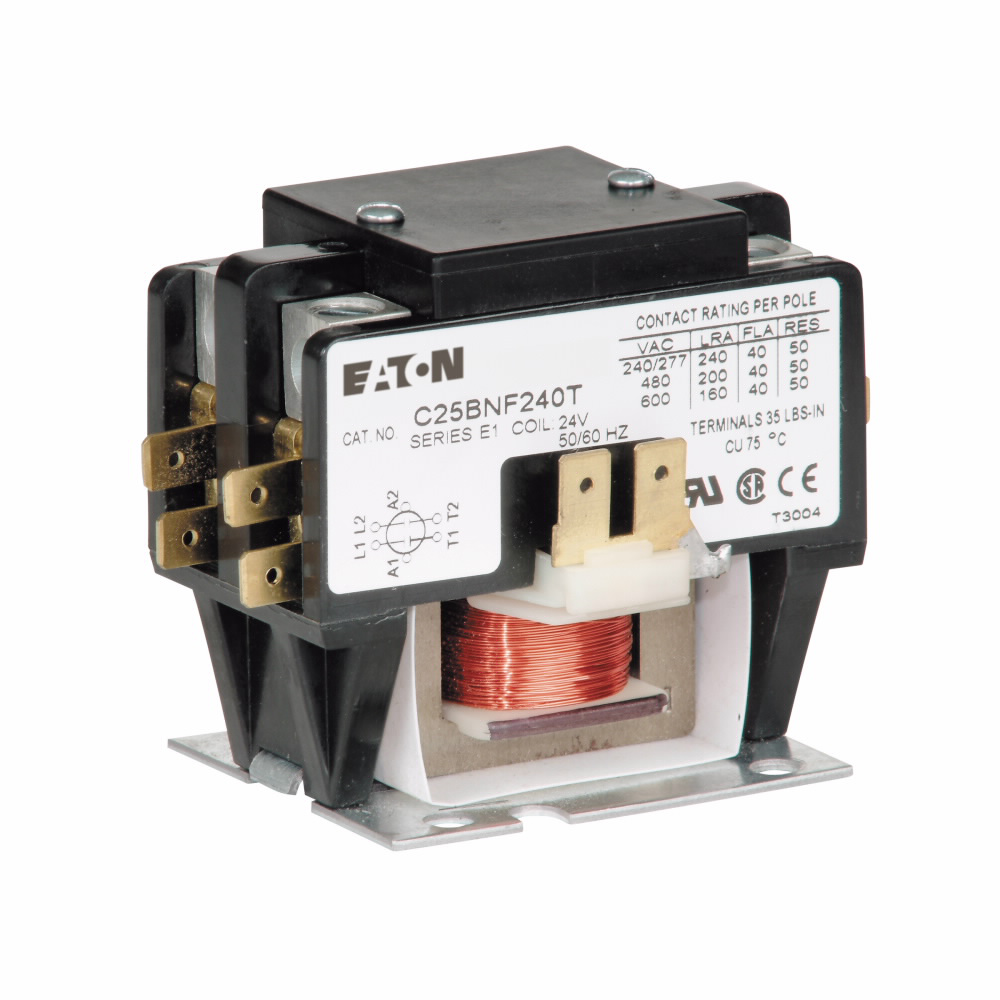

Eaton C25BNF240T Compact Definite Purpose Contactor 40A 24VAC Coil

Product Description

Eaton C25BNF240T is a compact definite purpose contactor designed for robust performance in industrial applications. With a 40A inductive current rating and 24VAC coil voltage, this two-pole contactor is engineered to facilitate efficient power control and automation processes.

• Non-reversing, quick-joint connection for swift installation
• Durable open frame with metal mounting plate ensures reliability in harsh environments
• Optimal for HVACR applications, including motors and power control equipment

Product Highlights

This Eaton model is notable for its compact design, allowing it to fit seamlessly into tight spaces while providing high-efficiency operation.

Product Information

Standard Information

• Brand: Eaton
• MPN: C25BNF240T
• Type: Non-Reversing Definite Purpose Contactor

Technical Specifications

• Coil Voltage: 24 VAC
• Maximum Load Current: 40 A Inductive/50 A Resistive
• Number of Poles: 2
• Enclosure Type: Open with Metal Mounting Plate
• Connection Type: Quick-Joint
• Terminal Type: Box Lugs/Quick-Connect
• Frequency Rating: 50/60 Hz
• Standards/Approvals: RoHS Compliant, UL Listed, CSA Certified, UL Recognized
