Product Description

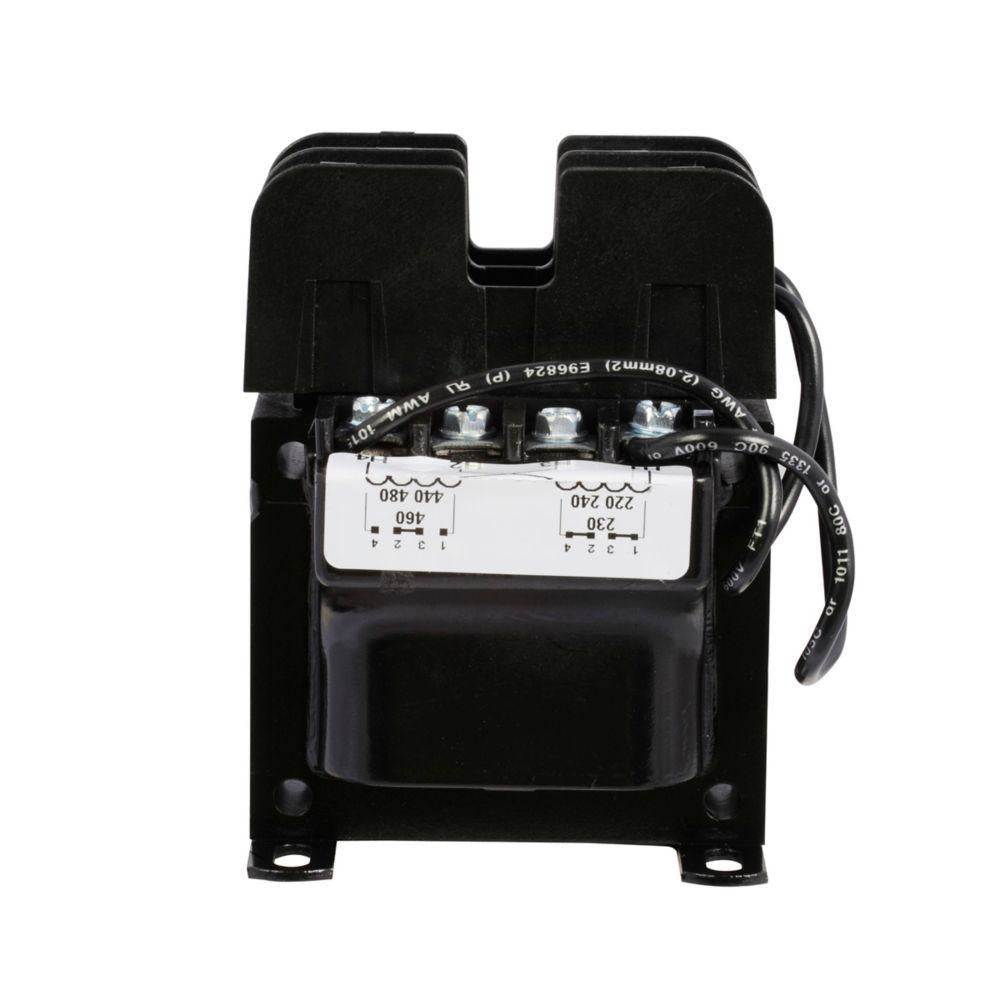

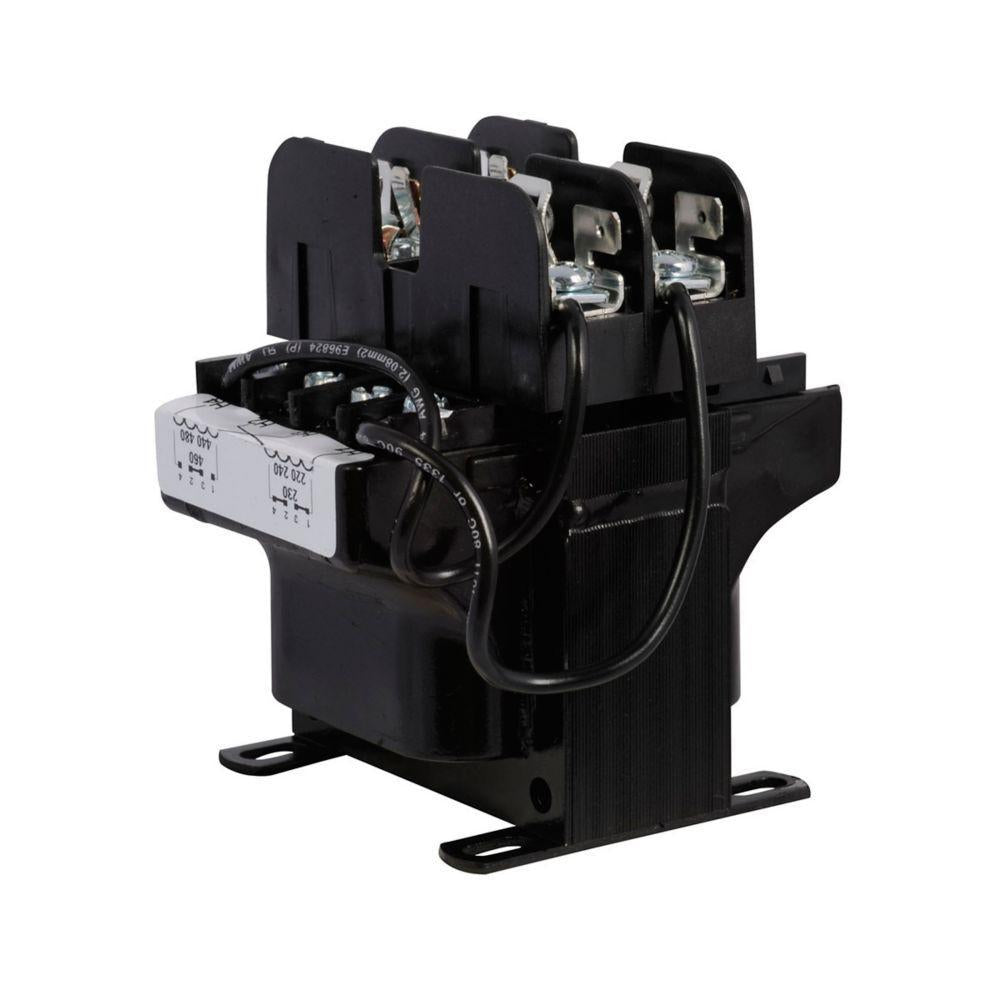

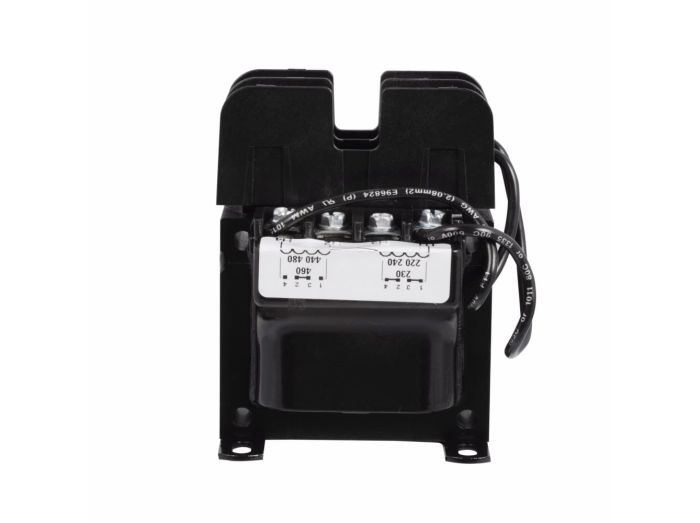

The EATON C0075E5EFB control transformer provides stepped down voltages to machine tool control devices, enabling control circuits to be isolated from all power and lighting circuits. It has a power rating of 75 VA and primary voltage of 240/480, 208/230/460, 200/220/440 V. This transformer is particularly adaptable on applications where compact construction is demanded.
- Epoxy encapsulated coil design
- Laminations of high quality, silicon steel minimize core losses and optimize performance
- Copper magnet wire for high quality, efficient operation
Product Highlights
The Eaton C0075E5EFB is a reliable control transformer with a compact design and high-quality components.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: C0075E5EFB
-
Country of Origin: US
Technical Specifications
-
Connection Type: Molded-In
-
Dimensions: 3.504 in L x 3.386 in W x 4.252 in H
-
Insulation: 130 deg C
-
Temperature Rating: 55 deg C
-
Type: Industrial Control Transformer
-
Primary Voltage: 200/220/440 V, 208/230/460 V, 240/480 V
-
Secondary Voltage: 23/110 V, 24/115 V, 25/120 V
-
Power Rating: 75 VA
-
Frequency Rating: 50/60 Hz
-
Phase: 1 ph
-
Product Name: Eaton Type MTE industrial control transformer
-
Catalog Number: C0075E5EFB
-
UPC: 786680421723
-
Product Length/Depth: 3.49 in
-
Product Height: 4.35 in
-
Product Width: 3.38 in
-
Product Weight: 4.3 lb
-
Compliances: RoHS Compliant
-
Certifications: CSA Certified cUL Certified UL Listed
-
Catalog Notes: Epoxy encapsulated, Laminations of high quality silicon steel to minimize core losses and optimize performance, 50/60Hz operation, 130
0
C insulation system standard, Molded-in terminals for maximum durability
-
Product Type: Industrial control transformer
-
Coil material: Copper windings
-
Design: MTE
-
Tap size: None
-
Special features: Primary fuse block
-
Enclosure Construction Style: Encapsulated
-
Terminal Type: Screw, Standard
-

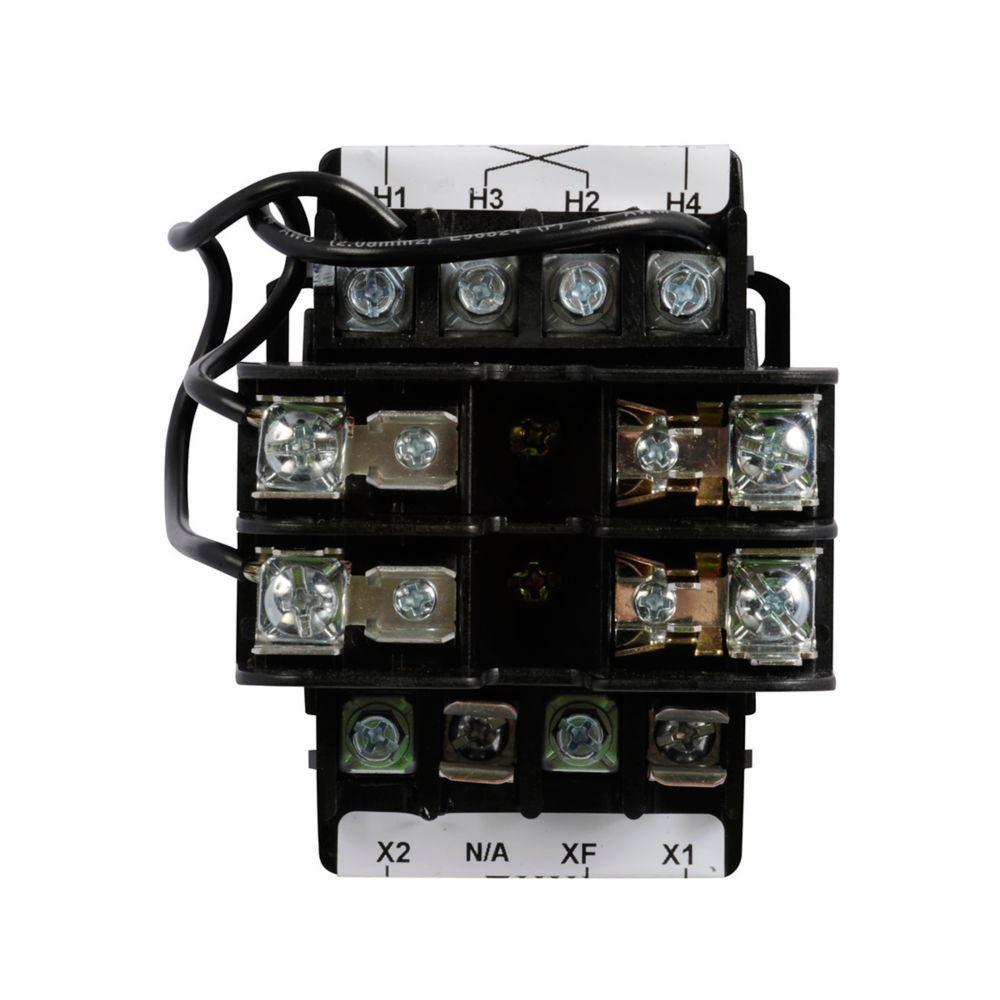

Fusing: 2-Pole Primary Rejection Type Fuse Block, Secondary Fuse Clips
-
Manufacturer: Eaton
-
Product Series: MTE
-
Family Series: Eaton Transformers, MTE Series
-
Enclosed: No
-
Primary Fuseholder: Included
-
Secondary Fuseholder: Included
-
Termination: Integrally Molded Terminal Blocks
-
Cover Included: No
-
Insulation Class: Class A
-
Temperature Rise (F): 131
0F
-
Approvals: CSA, UL
-
Volt Amps: 75
-
Mounting Type: Panel
-
Frame Type: C0
-
Terminal Connection: Screw
-
Standards: RoHS
