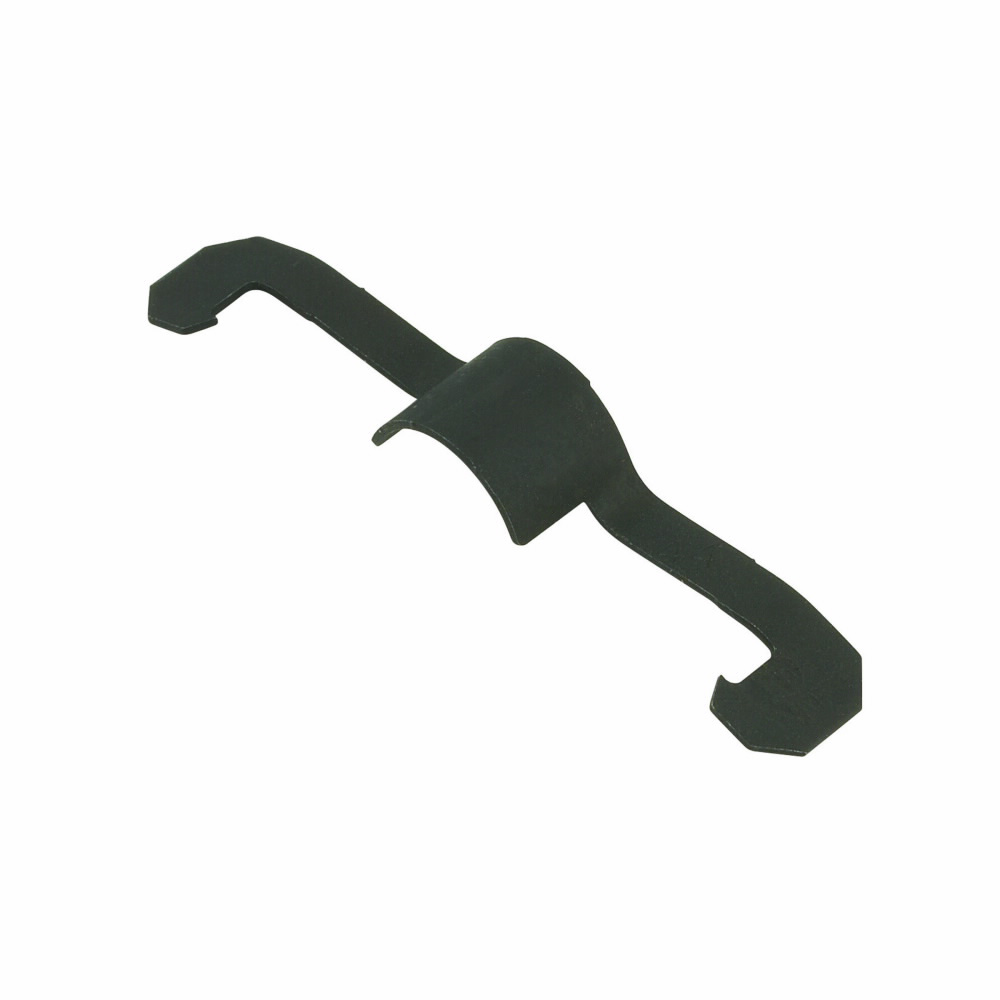

Eaton BW4 Multi-size Wire Fastener Threaded Rod Support

Product Description

The EATON BW4 is a multi-size wire fastener from the B-Line series of threaded rod and drop wire supports, designed for securing conduit and cable in commercial and industrial electrical installations. The BW4 accommodates rod sizes 12 through 8 and handles a vertical load capacity of 50 pounds and a horizontal load capacity of 25 pounds. Its compact form factor — 1 inch in height, 1 inch in length, and 1 inch in width — makes it well suited for tight spaces and high-density cable routing. Licensed electricians and electrical contractors are the primary installers of this type of support hardware.

The BW4 is used in conduit and cable support applications where drop wires or threaded rods serve as the primary suspension method. It is appropriate for both new construction and retrofit electrical work in commercial, industrial, and institutional settings. The multi-size design reduces the need to stock multiple single-size fasteners, making it practical for service vans and job-site inventory management.

Key Features

• Accepts rod sizes 12 through 8 in a single multi-size fastener
• 50 pound vertical load capacity for reliable conduit and cable support
• 25 pound horizontal load capacity
• Compact 1 inch x 1 inch x 1 inch footprint fits tight installations
• Part of the EATON B-Line series threaded rod and drop wire support system
• Lightweight at 0.009 pounds, minimizing added load to support structures

Compatibility

Designed as an OEM-style component within the EATON B-Line series for use with threaded rod and drop wire support systems in conduit and cable routing applications.

Installation Notes

Installation is performed by licensed electricians in accordance with the National Electrical Code (NEC). Power down all circuits in the work area before attaching or adjusting conduit and cable supports. Verify that the threaded rod diameter falls within the supported range of rod sizes 12 through 8 before securing the fastener. Do not exceed the rated vertical or horizontal load capacities.

Technical Specifications

• Rod Size Range: 12 through 8
• Vertical Load Capacity: 50 pounds
• Horizontal Load Capacity: 25 pounds
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.009 pounds
• Application: Conduit and cable support
• UPC: 781011197056

Standard Information

• Brand: EATON
• Manufacturer Part Number: BW4
