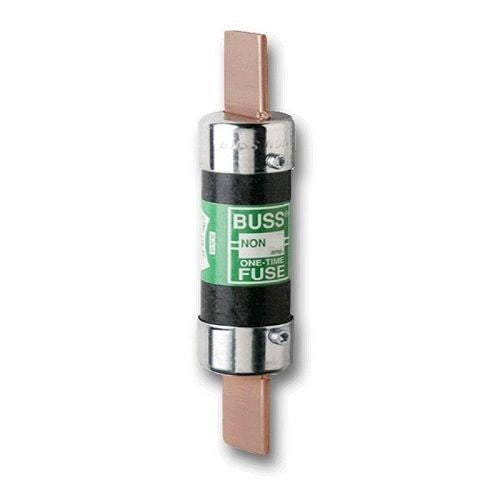

Eaton Bussmann NON-10 Fuse 10A 250VAC/125VDC

Product Description

The EATON BUSSMANN NON-10 is a 10A cylindrical, fast-acting melamine fuse designed for circuit protection. It supports 250VAC and 125VDC. This one-time fuse is non-current limiting and features a cylindrical body style. It is suitable for use in various commercial, industrial, and residential applications.

• Fast Acting
• Non-Current Limiting
• Cylindrical Body Style

Product Highlights

Provides fast-acting circuit protection with a cylindrical design and melamine body. Suitable for a range of applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: NON-10
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: EATON BUSSMANN
• MPN: NON-10
• Amperage: 10 A
• Voltage AC: 250 VAC
• Voltage DC: 125 VDC
• Interrupt Rating: 50 kA
• Class: H/K5
• Body Style: Cylindrical
• Speed: Fast Acting
• Series: NON
• Element: Single
• Diameter: 9/16"
• Body Material: Melamine
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 125V DC
• Equivalent Series: NLN, NON, OT
• Visual Indication: Non Indicating
• Fuse Voltage Rating: 250VAC/125VDC
• Fuse Size: 2" L x 9/16" dia
• Standards: CE, UL Listed, Guide JDDZ, File E4274, STD 248-9, CSA Certified Class 1421-01, File 53787
• Fuse Interrupt Rating: 50kA at 250VAC, 50kA at 125VDC
• Functionally Equal To: Mersen/Ferraz Shawmut OT
• Rejection / Nonrejection: Nonrejection
• Renewable / Nonrenewable: Nonrenewable
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann NON, Littelfuse NLN, Mersen OT
• Compatible Fuse Block Series: 2HKRFB, H250, HM250, HM600
• Voltage Rating: 250 Vac, 125 Vdc
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non current limiting
• Fuse Block Style: Non-Rejection
• Interrupt Rating - AC: 50 kA
• Interrupt Rating - DC: 50 kA
• Mounting Type: Holder
• Terminal Type: Ferrule
• Overall Diameter: 9/16 in
• Overall Length: 2 in
