EATON BUSSMANN MDL-3-R Time Delay Fuse

Product Description

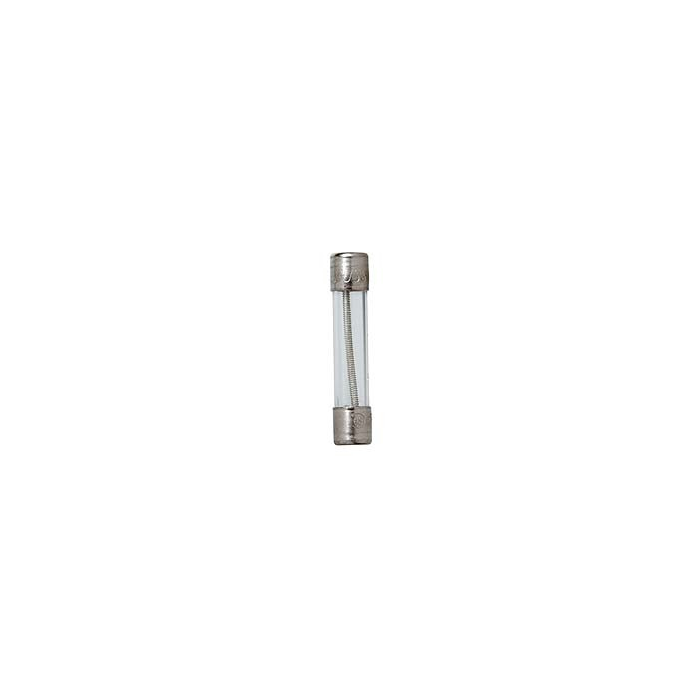

The EATON BUSSMANN MDL-3-R is a time delay fuse designed for reliable circuit protection. This fuse features a glass tube construction with nickel-plated bronze endcaps, making it durable and effective. It is rated for three amps and 250 volts AC. With an interrupting rating of one hundred AIC at 250 VAC and ten thousand AIC at 125 VAC, it ensures safety in various electrical applications.

• Amperage: 3 Amps
• Voltage Rating: 250 Volts AC
• Interrupting Rating: 100 AIC @ 250 VAC, 10,000 AIC @ 125 VAC

Product Highlights

This time delay fuse is UL Listed and CSA certified for quality assurance and compliance with safety standards.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: MDL-3-R

Technical Specifications

• Current Rating: 3 A
• Voltage Rating: 250 V AC
• Fuse Type: Glass Tube
• Time Delay: Time Delay
• End Cap Material: Nickel-plated bronze
• Size: 1/4 x 1 1/4
• Interrupting Rating @ 250 VAC: 100 AIC
• Interrupting Rating @ 125 VAC: 10,000 AIC
• Certifications: UL Listed, CSA Certified
