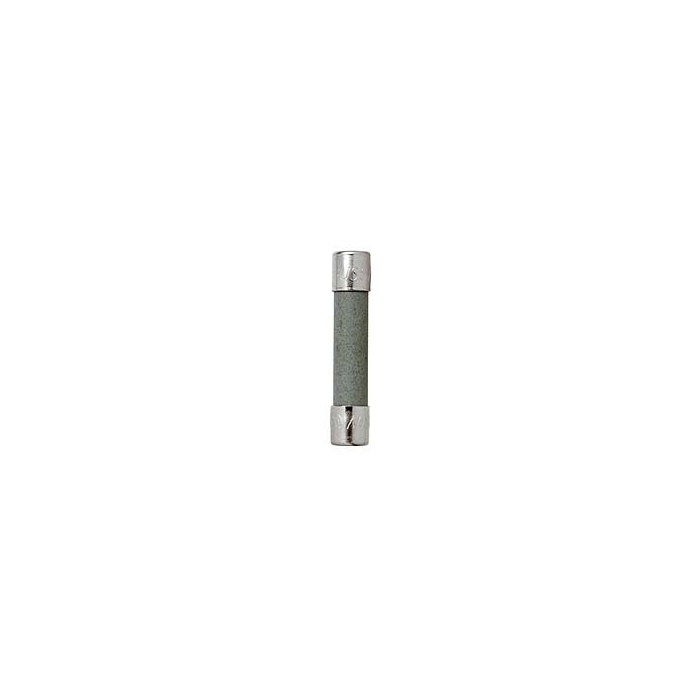

EATON BUSSMANN MDA-3-R Time Delay Ceramic Tube Fuse

Product Description

The EATON BUSSMANN MDA-3-R is a time-delay fuse for low voltage and general-purpose applications. This fuse has a ceramic tube design with nickel-plated bronze end caps. It is suitable for appliances and consumer electronics. The fuse offers an interrupting rating of 200 AIC at 250 VAC and 10,000 AIC at 125 VAC.

• Amperage: 3 A
• Voltage Rating: 250 VAC
• Physical Size: 1/4 inches by 1 1/4 inches

Product Highlights

The MDA-3-R is used in various settings requiring reliable fuse protection.

Product Information

Standard Information

• Manufacturer: Bussmann
• Series: MDA

Technical Specifications

• Manufacturer Part Number: MDA-3-R
• Fuse Type: Ceramic Tube
• Current Rating: 3 A
• Voltage Rating: 250 VAC
• Characteristic: Time Delay
• Material: Ceramic
• Interrupt Rating: 200 A @ 250 V
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
• Diameter: 0.25 inches
• Length: 1.25 inches
• Approvals: CSA, UL
• Net Weight: 0.007 lbs
• Gross Weight: 0.007 lbs
• Endcaps: Nickel-plated bronze
