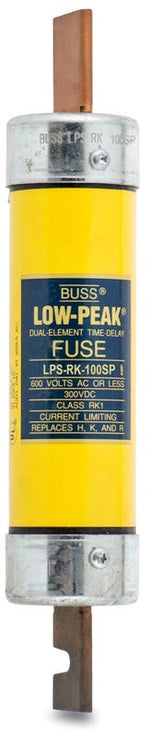

EATON BUSSMANN LPS-RK-100SP Class RK1 Time Delay Fuse

Product Description

The Eaton Bussmann LPS-RK-100SP is a Class RK1 time delay fuse. This fuse is designed for current limiting and offers protection against short circuits. It is ideal for high inrush current motor applications and suitable for use in feeders, branch circuits, transformers, motors, and solenoids.

• Time Delay with a minimum of ten seconds.
• Dual-element construction for enhanced performance.
• Current limiting feature to maximize short circuit protection.

Product Highlights

This fuse is UL Listed and CSA Certified, ensuring reliability in various applications.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: LPS-RK-100SP

Technical Specifications

• Amperage: 100 A
• Voltage Rating: 600 VAC, 300 VDC
• Class: Class RK1
• Interrupting Rating: 300 kAIC at 600V AC
• DC Interrupting Rating: 100,000 AIC
• Fuse Type: Time Delay, Current-Limiting
• Shape: Rectangular
• Length: 7.88 inches
• Height: 1.11 inches
• Width: 1.11 inches
• Approvals: CE, UL, CSA
