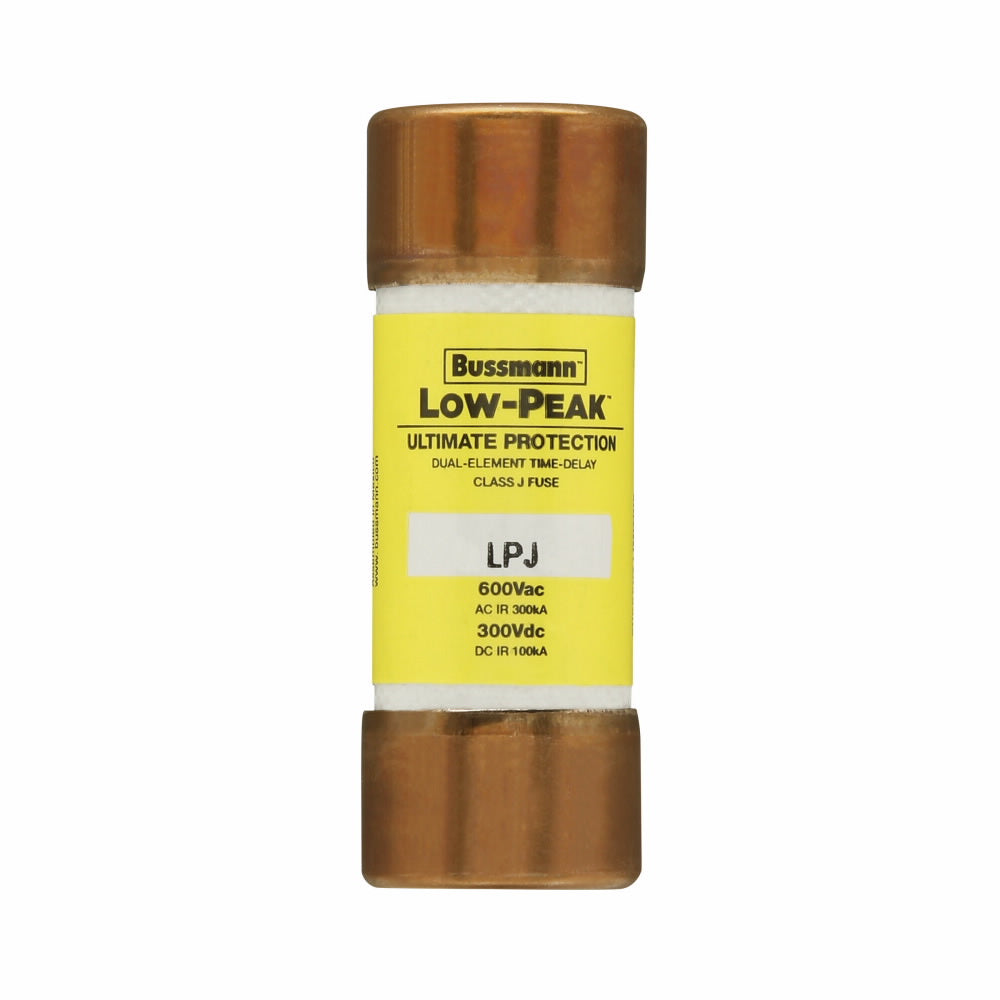

Eaton Bussmann LPJ-20SP Time Delay Fuse 20A 600VAC 300VDC

Product Description

Introducing the Eaton Bussmann LPJ-20SP, a reliable cylindrical time delay fuse designed to enhance protection in electrical circuits. This 20A fuse operates at 600VAC/300VDC, demonstrating a substantial interrupt rating of 300/100kA which ensures robust performance in demanding conditions.

• Dual element technology for precise time delay and current limiting functions.
• Non-indicating, non-rejection fuse with a cylindrical body made of durable melamine.
• Compatible with a wide range of fuse block series including CH30J, CH60J, and J600.

Product Highlights

Tailored for both industrial control and power panelboard applications, the LPJ-20SP provides extended protection against short circuits and overloads, thanks to its advanced current limiting capabilities.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: LPJ-20SP

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 600 VAC/300 VDC
• Interrupt Rating: 300/100 kA
• Body Material: Melamine
• Length: 2.25 inches
• Diameter: 0.81 inches
• Mounting Type: Holder mount
• Terminal Type: Ferrule
• Response Time: 10 s
• Standards/Approvals: CE Certified, CSA C22.2 No. 248.8, Class 1422-02
