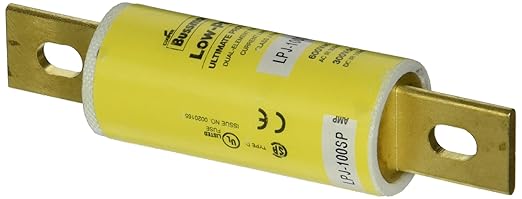

Eaton Bussmann LPJ-100SP Class J Time-Delay Fuse

Product Description

The Eaton Bussmann LPJ-100SP is a Class J, dual-element, time-delay fuse designed for electrical safety in power panelboards, machinery disconnects, and industrial controls. This fuse is built to protect electrical systems by limiting current and reducing the impact of fault currents. The time-delay feature allows it to handle temporary overloads, accommodating inrush currents from motors and transformers without disruption.

• UL Listed and CSA Certified for compliance.
• Interrupting rating of 300,000 AIC at 600 Vac.
• Time-delay of ten seconds minimum at five hundred percent rating.

Product Highlights

Ideal for specialized circuits and industrial control applications.

Product Information

Standard Information

• Brand: Bussmann
• MPN: LPJ-100SP

Technical Specifications

• Current Rating: 100 A
• Voltage Rating AC: 600 V
• Voltage Rating DC: 300 V
• Fuse Class: UL Class J
• Time Delay: 10 seconds minimum at 500% rating
• Element: Dual element
• Dimensions: 1.13 x 4.63 inches
• Interrupting Rating AC: 300,000 AIC RMS @ 600 Vac
• Interrupting Rating DC: 20,000 AIC
• UL Listing: UL Listed Special Purpose, Guide JFHR, File E56412
• CSA Certification: CSA Certified, Class J per CSA C22.2 No. 248.8, Class 1422-02, File 53787
• Material: Alloy steel
• Specification Met: CSA, IEC, UL, RoHS
• Shape: Rectangular
