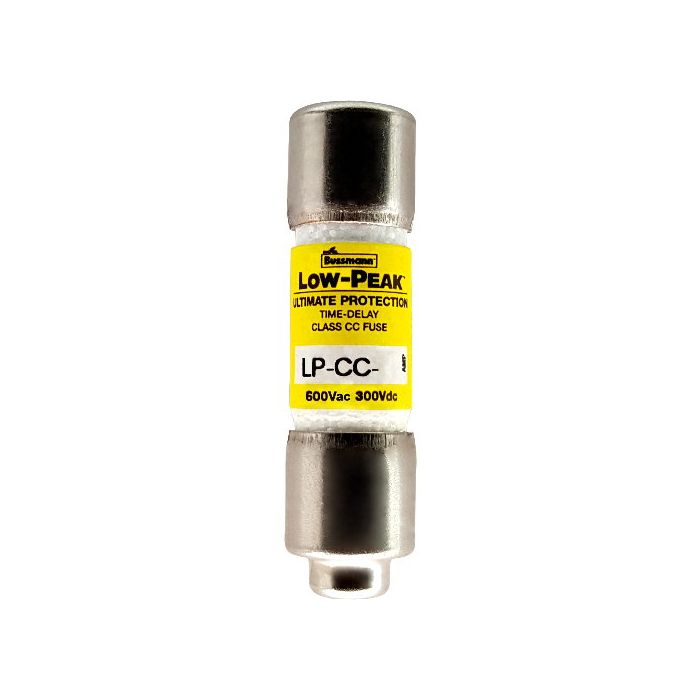

EATON BUSSMANN LP-CC-2-1/2 Class CC Fuse

Product Description

The EATON BUSSMANN LP-CC-2-1/2 is a Class CC fuse suitable for protecting small horsepower motor circuits. It is a time-delay, dual-element fuse featuring a rejection-type design. This fuse supports a maximum AC voltage of six hundred volts and a DC voltage of three hundred volts. It has an interrupting rating of two hundred thousand AIC RMS at six hundred VAC and a twenty thousand AIC rating for DC.

• UL Class CC Fuse
• Time Delay - Twelve Seconds Minimum
• Dual Element Design

Product Highlights

This fuse is designed for reliability in motor applications, ensuring effective circuit protection under typical operating conditions.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: LP-CC-2-1/2

Technical Specifications

• Current Rating: Two and a half Amp
• Voltage Rating: Six hundred Volts AC
• Voltage Rating: Three hundred Volts DC
• Fuse Class: Class CC
• Fuse Type: Time Delay
• Element: Dual Element
• Type: Rejection Type
• Size: Zero point four one by one point five Inches
• Interrupting Rating (VAC): Two hundred thousand AIC RMS at six hundred VAC
• Interrupting Rating (VDC): Twenty thousand AIC
• Standards: CE, Std. 248-4, Class CC, UL Listed
• UL Guide: JDDZ
• UL File: E4273
• CSA Certified Class: 1422-02
• CSA Certified File: 53787
