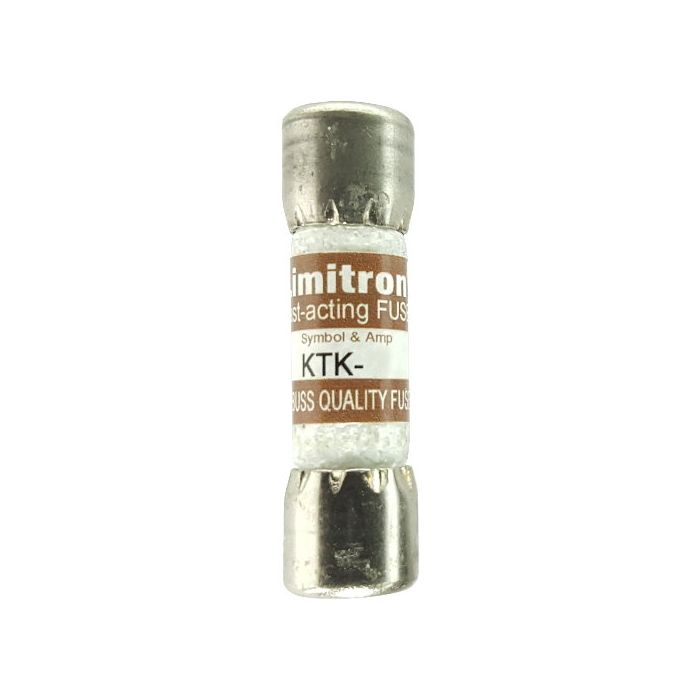

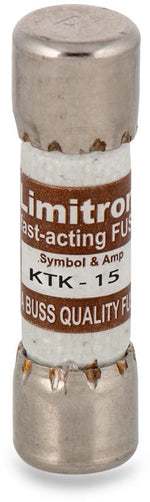

EATON BUSSMANN KTK-15 Fast Acting Midget Fuse

Product Description

The Eaton Bussmann KTK-15 is a fast-acting midget fuse with a voltage rating of six hundred volts AC and a current rating of fifteen amps. This fuse is specifically designed to protect control circuit transformers and features a melamine tube and nickel-plated bronze end caps. It meets UL and CSA standards, ensuring reliable performance in various applications.

• Fast Acting Fuse
• Voltage Rating: 600V AC
• Interrupting Rating: 100,000 AIC RMS @ 600VAC

Product Highlights

The KTK-15 fuse is ideal for applications requiring quick response times and high interrupting capacity.

Product Information

Standard Information

• Brand: Eaton Bussmann
• MPN: KTK-15

Technical Specifications

• Series: KTK
• Current Rating: 15 Amps
• Voltage Rating: 600 Volts AC
• Fuse Type: Fast Acting
• Tube Material: Melamine
• End Cap Material: Nickel-plated bronze
• Dimensions: 0.41 inches x 1.5 inches
• Interrupting Rating: 100,000 AIC RMS @ 600VAC
• UL Listed: STD. 248-14, (Guide #JDYX, File #E19180)
• CSA Certified: C22.2 NO. 248.14 (File #53787?Class #1422-01)
• UPC: 051712420198
• GTIN: 51712420198
