Eaton Bussmann FRN-R-5 Fuse Dly Time 5A 250 VAC/125 VDC RK5 Cyl

Product Description

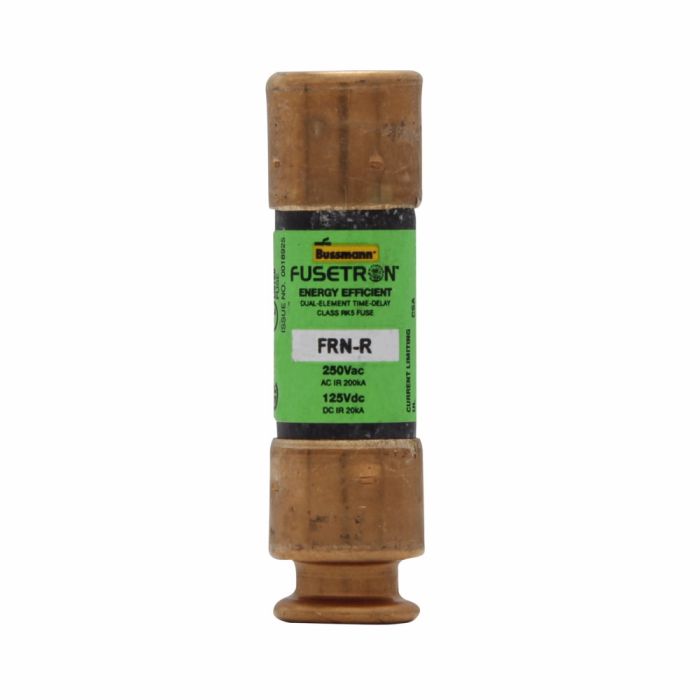

The EATON BUSSMANN FRN-R-5 is a Fusetron™ current limiting time delay fuse. Rated at 5 A, 250 VAC/125 VDC, with a 20/200 kA interrupt rating and RK5 class. It features a cylindrical body and provides current limiting and time delay for circuit protection.

• Current Limiting
• Time Delay
• Cylindrical Body Style

Product Highlights

The EATON BUSSMANN FRN-R-5 fuse provides time delay and current limiting protection in a cylindrical body.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: FRN-R-5
• Country of Origin: Mexico

Technical Specifications

• Amperage: 5 A
• Voltage: 250 VAC/125 VDC
• Interrupt Rating: 20/200 kA
• Class: RK5
• Body Style: Cylindrical
• Fuse Amps: 5A
• Fuse Size: 2" L x 9/16" dia
• Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
• Body Material: Fiberglass
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: H
• AC Voltage Rating: 250V AC
• DC Voltage Rating: 125V DC
• Equivalent Series: ECNR, FLNR, FRN-R, TR-R
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 250VAC/125VDC
• Fits Fuse Block Style: Rejection
• Fuse Interrupt Rating: 200kA at 250VAC, 20kA at 125VDC
• Rejection / Nonrejection: Rejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FRN-R, Edison ECNR, Littelfuse FLNR, Mersen TR-R
• Compatible Fuse Block Series: HM600, R250
• Compliances: CE Marked
• Product Type: Fuse
• Amperage Rating: 5 A
• Response time: 8 sec at 500%
• Voltage rating: 250 Vac, 125 Vdc
• Number of elements: Dual
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Type: Current Limiting
• Series: FRN-R
• Terminal Type: Ferrule
• Mounting Type: Holder
• Element: Dual
• Material: Fiberglass
• Body Size: 0.56 in Dia x 2 in L
• Speed: Time Delay
• Length: 2"
• Diameter: 9/16"
