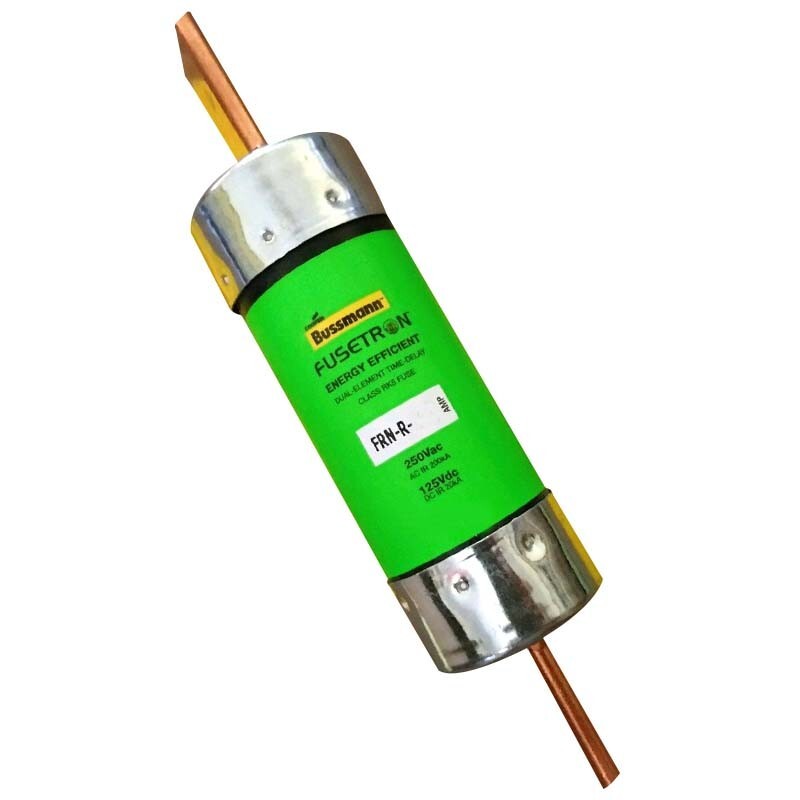

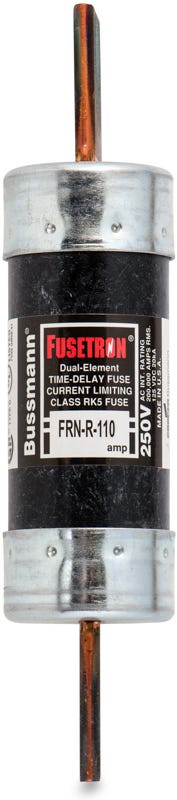

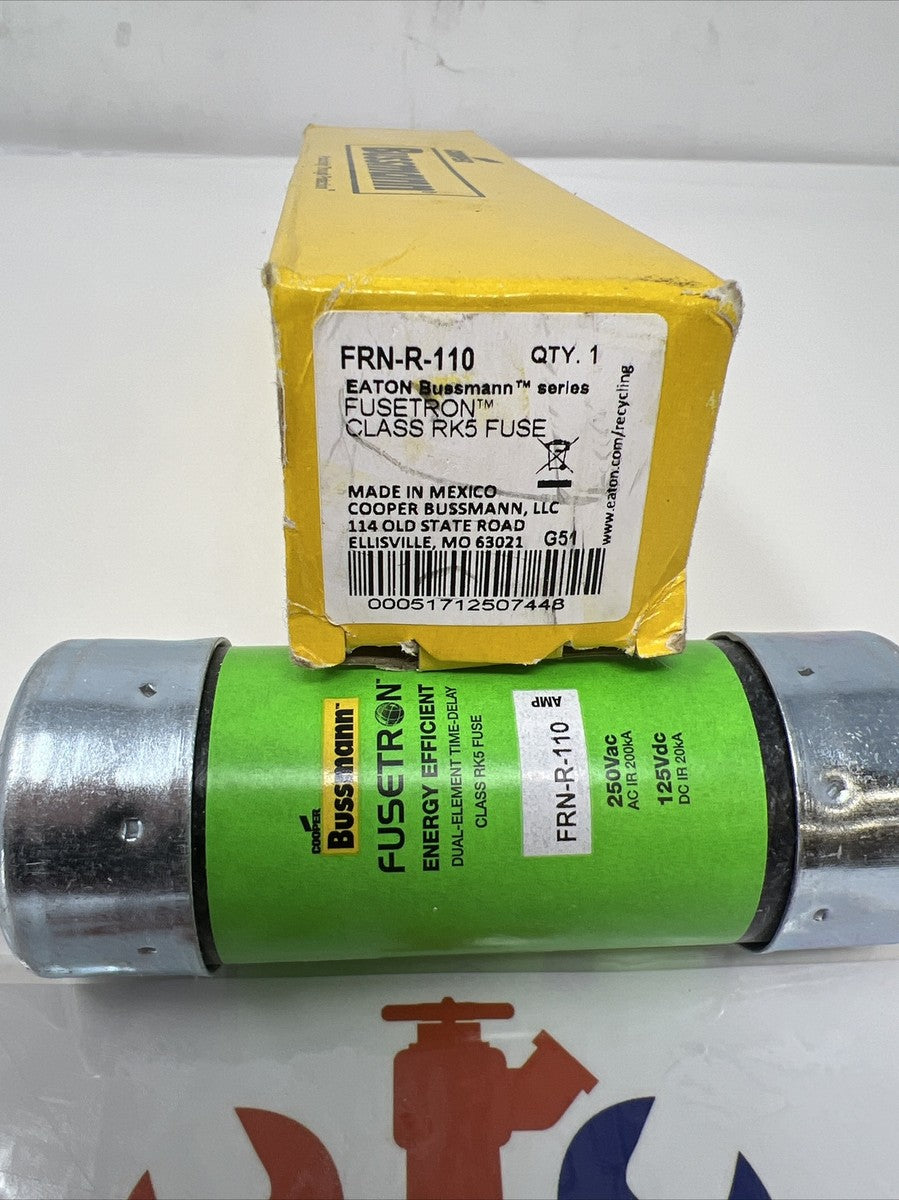

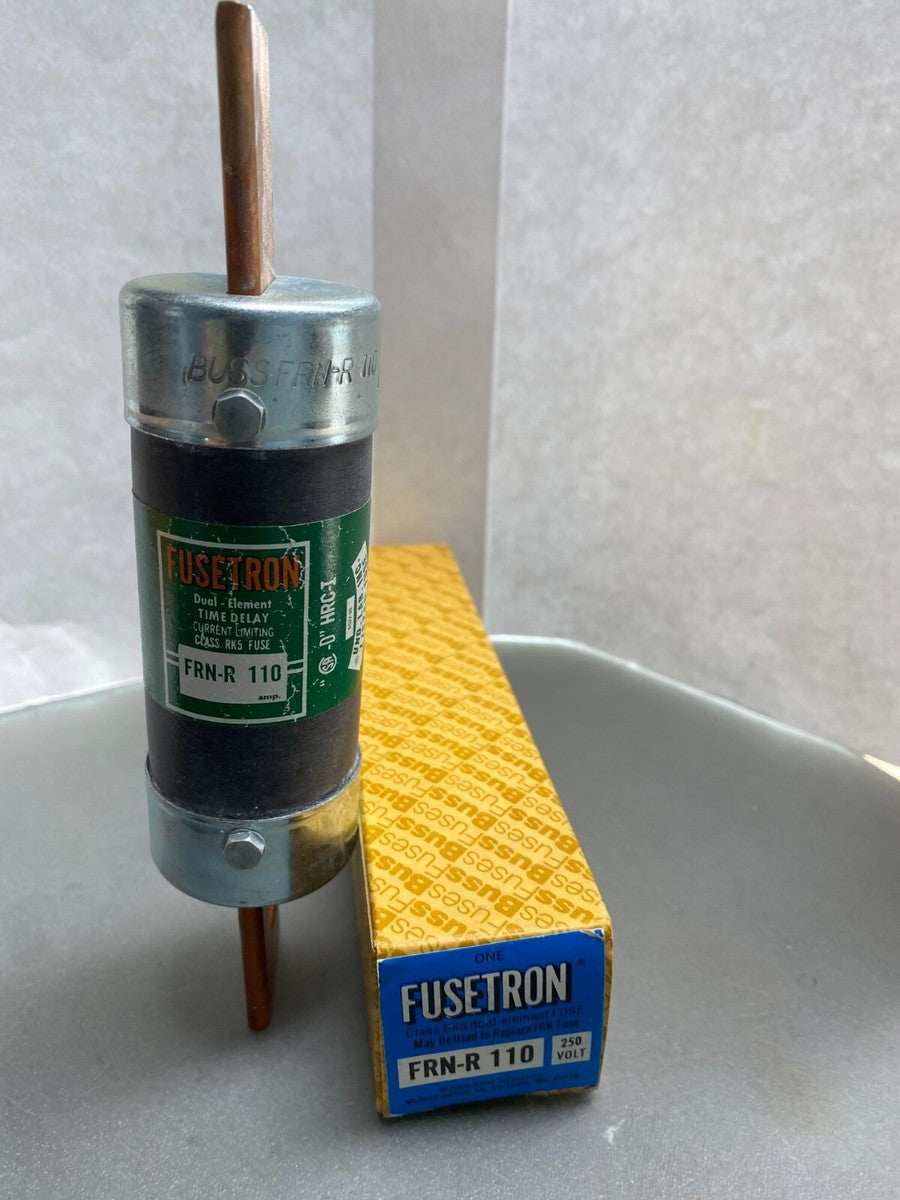

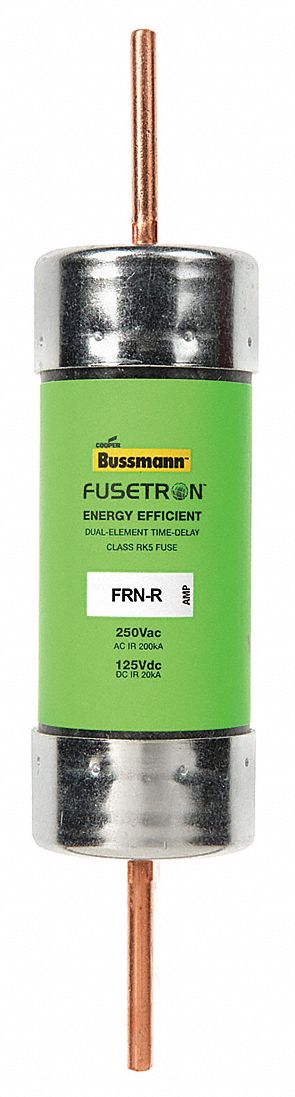

EATON BUSSMANN FRN-R-110 Fuse

Product Description

The EATON BUSSMANN FRN-R-110 is a durable fuse focused on protecting electrical circuits. It is a Class RK5, time-delay, dual-element, current limiting fuse. The design features blade terminals for holder mounting, enhancing installation ease. This fuse provides critical protection against motor overloads, ground faults, and short circuits, making it essential for maintaining system integrity.

• Provides motor overload, ground fault, and short circuit protection.
• Helps protect motors against burnout from overloads and single phasing.
• Simplifies and improves blackout prevention through selective coordination.

Product Highlights

This fuse protects motors and circuits from damage due to various electrical faults, improving system reliability.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• MPN: FRN-R-110

Technical Specifications

• Amperage Rating: 110 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupt Rating: 200/20 kA
• Class: RK5
• Response Time: 10 s
• Terminal Type: Knife Blade
• Mounting Type: Holder
• Body Type: Cartridge
• Element: Dual
• Material: Fiberglass
• Body Size: 1.56 inches Diameter x 7.13 inches Length
• Indicating/Non-Indicating: Non-Indicating
• Rejection/Non-Rejection: Rejection
• Series: FRN-R
• Type: Current Limiting
