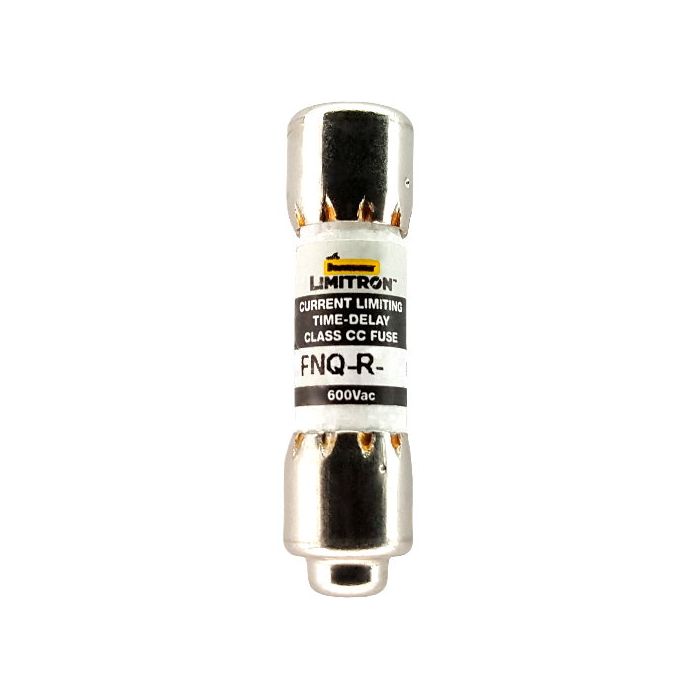

EATON BUSSMANN FNQ-R-3/4 Class CC Time Delay Fuse

Product Description

The EATON BUSSMANN FNQ-R-3/4 is a Class CC time-delay fuse used for control circuit transformer protection. This fuse offers a voltage rating of six hundred volts AC with an interrupting rating of two hundred thousand AIC. It features a cylindrical body type and ferrule end terminals, ensuring it fits various applications.

• Amperage: 0.75 A
• Voltage Rating: 600 V AC
• UL Listed and CSA Certified

Product Highlights

This fuse is designed with a dual element structure and a melamine tube, enhancing its reliability. The FNQ-R-3/4 provides current limiting capabilities, suitable for various circuit protection needs.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Class: CC

Technical Specifications

• AC Voltage Rating: 600
• Interrupting Rating: 200,000 AIC @ 600 VAC
• UL Listed: Std. 248-4, Guide JDDZ, File E4273
• CSA Certified: Class CC, Class 1422-01 File 53787
• Amperage Rating: 0.75 A
• Body Type: Cylindrical
• Type: Current Limiting Time Delay
• Element: Dual
