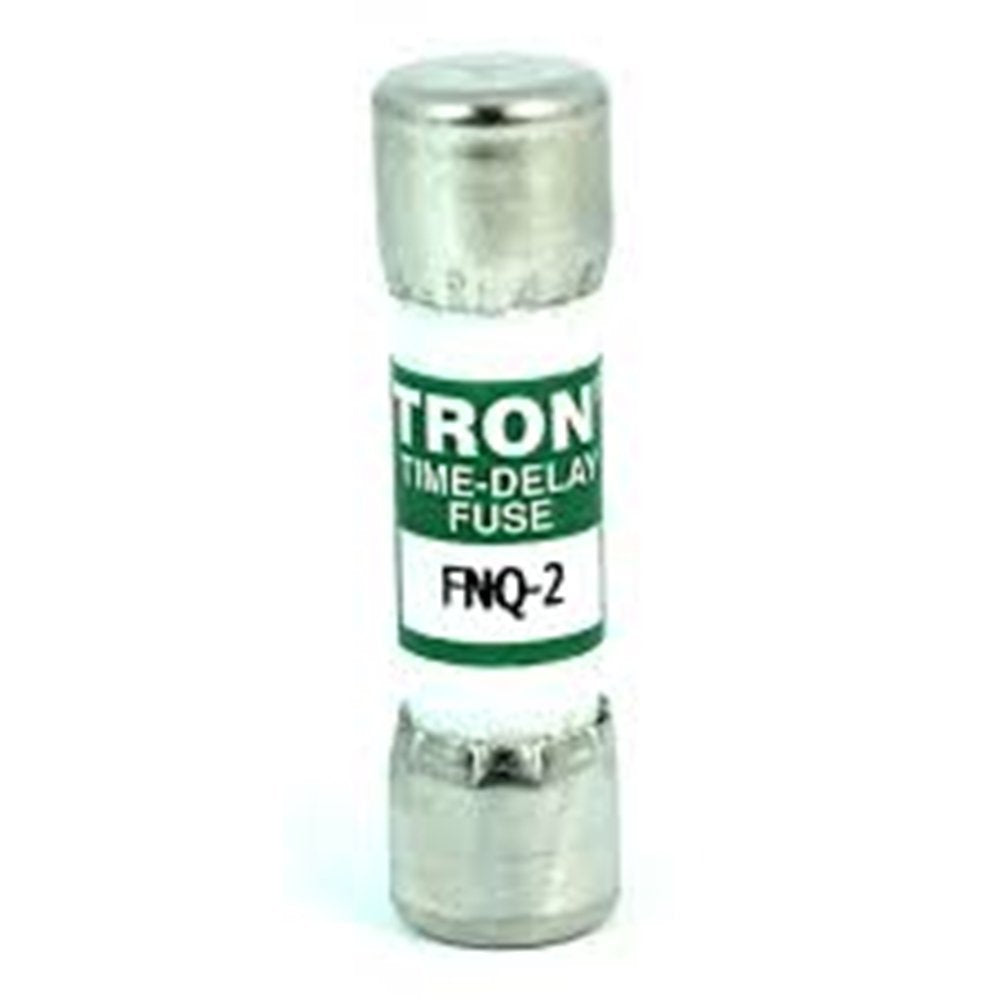

Eaton Bussmann FNQ-2 Fuse 2A 500VAC

Product Description

The EATON BUSSMANN FNQ-2 is a 2A time delay cylindrical midget fuse with a 500VAC voltage rating. This fuse is designed with a fiberglass body and dual element construction. It features a nonindicating design and ferrule end connections. Suitable for motor control transformers and circuits with in-rush currents.

• Time Delay
• 500V AC
• Nonindicating

Product Highlights

The EATON BUSSMANN FNQ-2 fuse provides time-delay protection in a compact cylindrical design, ideal for various applications.

Product Information

Standard Information

• Brand: EATON BUSSMANN
• Manufacturer Part Number: FNQ-2
• Country of Origin: Mexico

Technical Specifications

• Product Type: Fuse
• Manufacturer: EATON BUSSMANN
• Brand: Eaton
• Model / MPN: FNQ-2
• Amps: 2A
• Item: Fuse
• Class: Midget
• Speed: Time Delay
• Length: 1-1/2"
• Series: FNQ
• Element: Dual
• Diameter: 13/32"
• Fuse Amps: 2A
• Fuse Size: 1-1/2" L x 13/32" dia
• Standards: CE, CSA Class 1422-01, UL-248-14 Guide JDYX
• Body Style: Cylindrical
• Fuse Speed: Time Delay
• Body Material: Fiberglass
• Connection Type: Ferrule End x Ferrule End
• Fuse Holder Code: D
• Interrupt Rating: 10kA at 500V AC
• AC Voltage Rating: 500V AC
• DC Voltage Rating: Not Rated
• Equivalent Series: ATQ, FLQ, FNQ, HC10S
• Visual Indication: Nonindicating
• Fuse Voltage Rating: 500VAC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Littelfuse FLQ, Mersen/Ferraz Shawmut ATQ
• Fuse Interrupt Rating: 10kA at 500VAC
• Rejection / Nonrejection: Nonrejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FNQ, Littelfuse FLQ, Mersen ATQ, Power First HC10S
• Compatible Fuse Block Series: BM, BMM, C2617, C5268, CHM, HEB, HET, HEX, HPG, HPS, OPM-1038, OPM-NG
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
• Product Name: Eaton Bussmann series FNQ fuse
• Catalog Number: FNQ-2
• UPC: 051712786027
• Product Length/Depth: 1.5 in
• Product Height: 0.41 in
• Product Width: 0.41 in
• Amperage Rating: 2 A
• Voltage rating: 500 V
• Material: Nickel-plated bronze endcap
• Packaging type: Standard
• Connection: Ferrule end x ferrule end
• Fuse indicator: Non-indicating
• Special features: Non-indicating
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Current Rating: 2 A
• Interrupt Rating - AC: 10 kA
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• UNSPSC: 39121609
