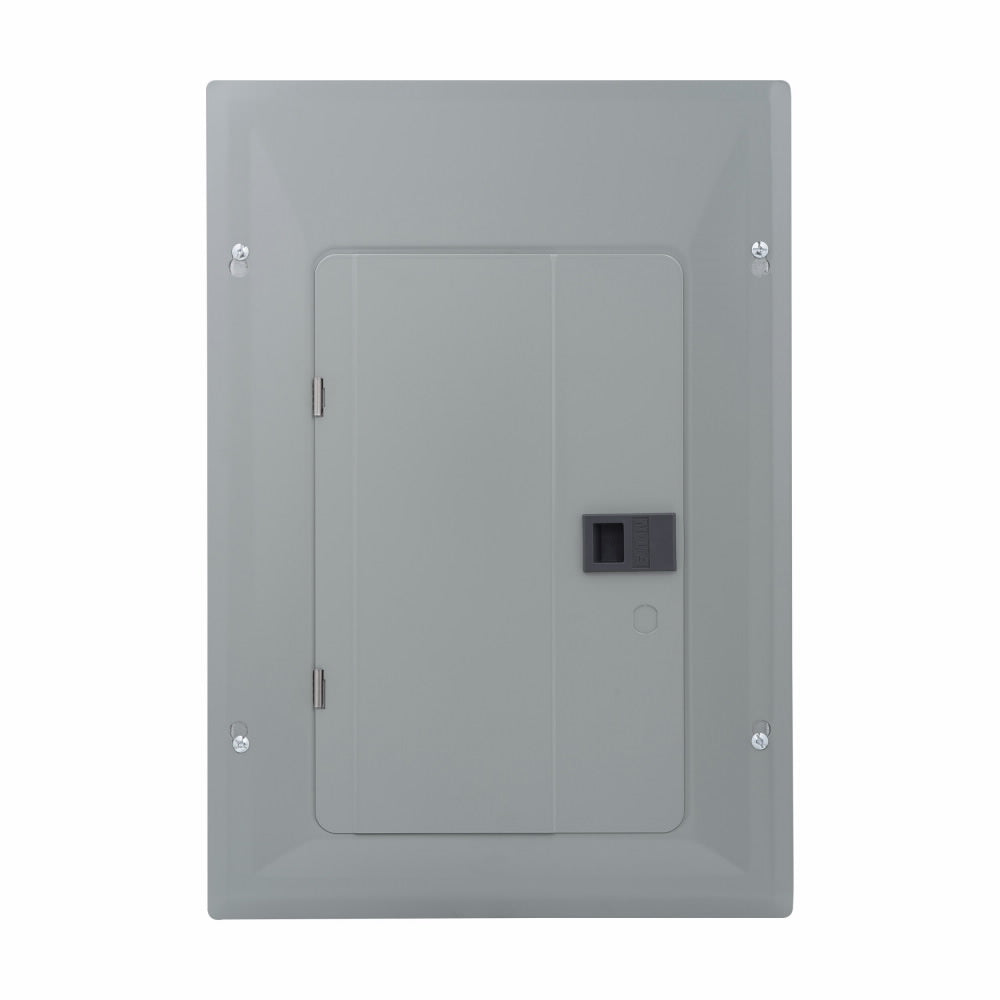

Eaton BRP16B125 Type BR Single-Phase Plug-on Neutral Main Circuit Breaker Load Center 125 Amp 16 Space

Product Description

The Eaton BRP16B125 is a Type BR Single-Phase Plug-on Neutral Main Circuit Breaker Load Center with a capacity of 125 Amps and voltage rating of 120/240 VAC. This load center supports up to 16 spaces and 32 circuits, providing a reliable solution for power distribution. Designed for easy installation, it can serve as a main breaker or a sub-panel. The robust NEMA 1 enclosure promotes protection and durability.

• Designed for 1-phase electrical systems
• Includes a cover for added protection
• Compatible with Plug-On Neutral Circuit Breakers

Product Highlights

The Eaton BRP16B125 is engineered for safety and efficiency. Its plug-on neutral design simplifies installation and maintains a clean appearance.

Product Information

Standard Information

• Manufacturer: Eaton
• Model Number: BRP16B125

Technical Specifications

• Type: 1-Phase
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 1
• Number of Spaces: 16
• Enclosure Type: NEMA 1
• Dimensions: 21 in L x 14.31 in W x 3.88 in H
• Interrupt Rating: 10 kA
• Housing Material: Sheet Steel
• Applications: Electrical Assemblies, Panels and EOEMs
