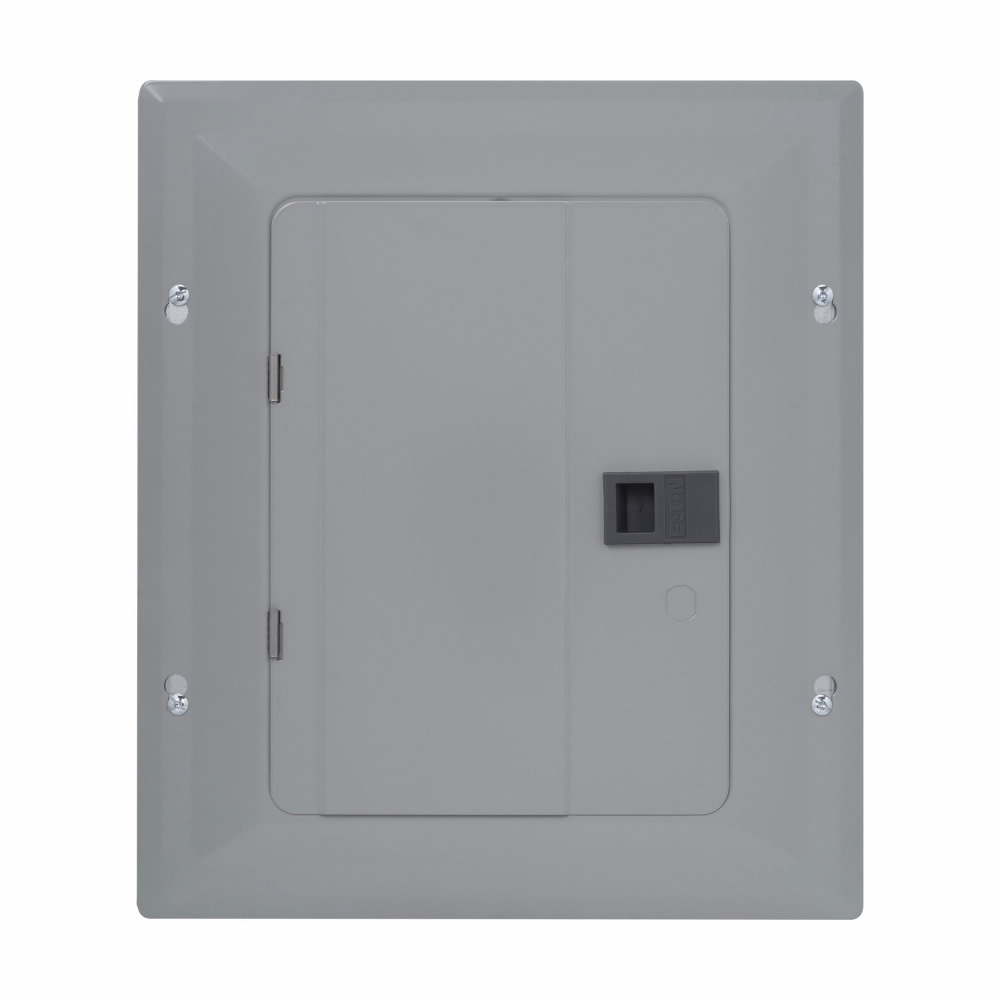

EATON BRP12B100 1-Phase Main Breaker Load Center 120/240 VAC 100 A 12 Circuits 10 kA Interrupt

Product Description

The Eaton BRP12B100 is a one-phase main breaker load center designed for 120/240 volts and rated for a hundred amps. This load center features twelve circuits and is equipped with a plug-on neutral main circuit breaker. The NEMA 1 enclosure is suitable for indoor applications.

• 1-phase design for residential or light commercial use
• Includes a cover and combination trim for easy installation
• Safe and reliable galvanized steel housing

Product Highlights

This load center houses branch circuit breakers and wiring, allowing for efficient power distribution. It serves as a main breaker at service entrances.

Product Information

Standard Information

• Brand: Eaton
• Type: Main breaker load center

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 100 A
• Number of Poles: 1
• Number of Spaces: 12
• Interrupt Rating: 10 kA
• Wire Size: 6 to 1/0 AWG
• Enclosure Type: NEMA 1
• Dimensions: 18.75 in L x 14.31 in W x 3.88 in H
