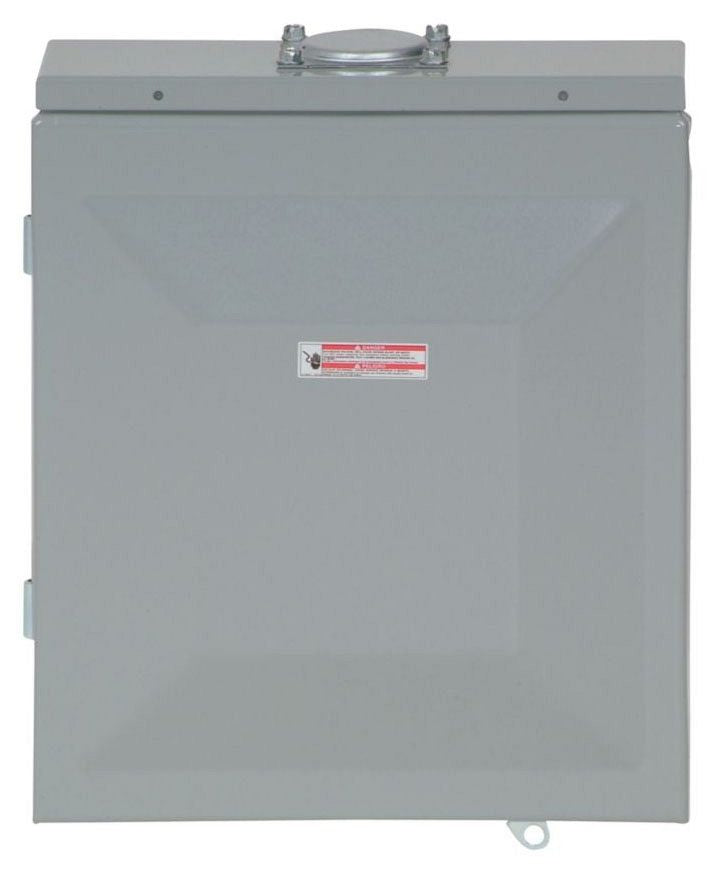

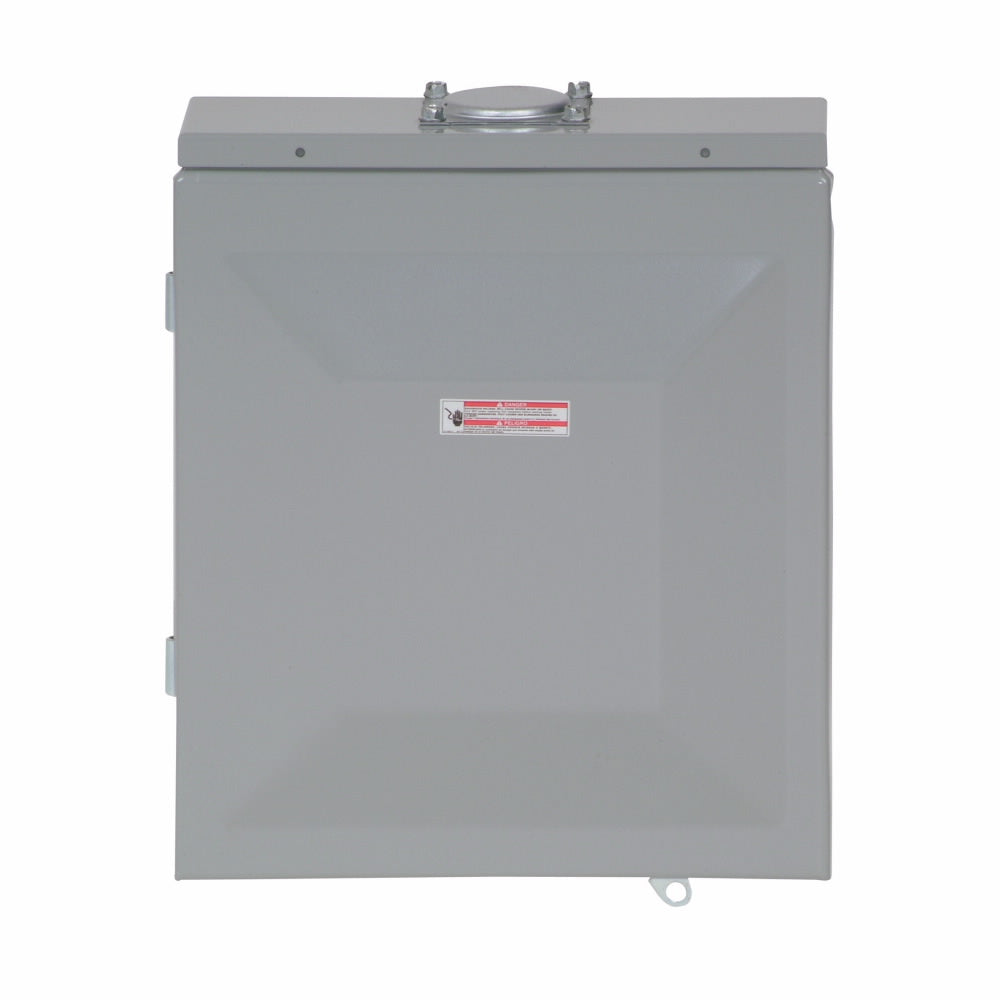

Eaton BR816L125RP Type BR Single-Phase Main Lug Load Center 125 Amp

Product Description

Eaton BR816L125RP is a load center designed for effective power distribution in single-phase applications. It offers a reliable solution with a voltage rating of 120/240 VAC and an amperage rating of 125 amps. This model can accommodate up to sixteen circuits. Its NEMA 3R enclosure provides protection against various environmental conditions.

• Eight spaces for circuit breakers
• Metal housing material
• Compatible with various circuit configurations

Product Highlights

This load center is suitable for residential and light commercial applications. It is designed for easy installation and can serve both as a main breaker for service entrances and as a main lug when adding circuits.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer Part Number: BR816L125RP

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Poles: 16
• Number of Circuits: 16
• Enclosure Type: NEMA 3R
• Dimensions: 3.56 inches L x 11 inches W x 13 inches H
• Interrupt Rating: 10 kA
• Wire Size: 14 to 1 AWG
