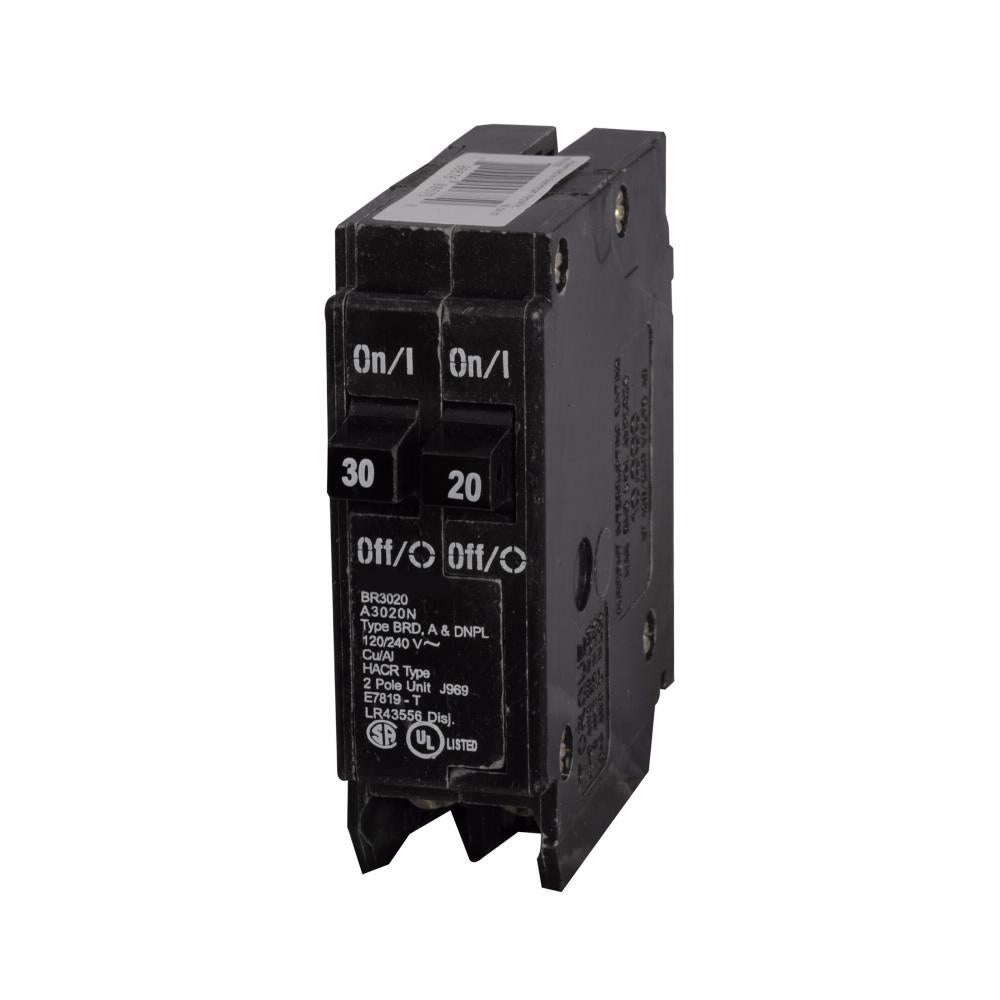

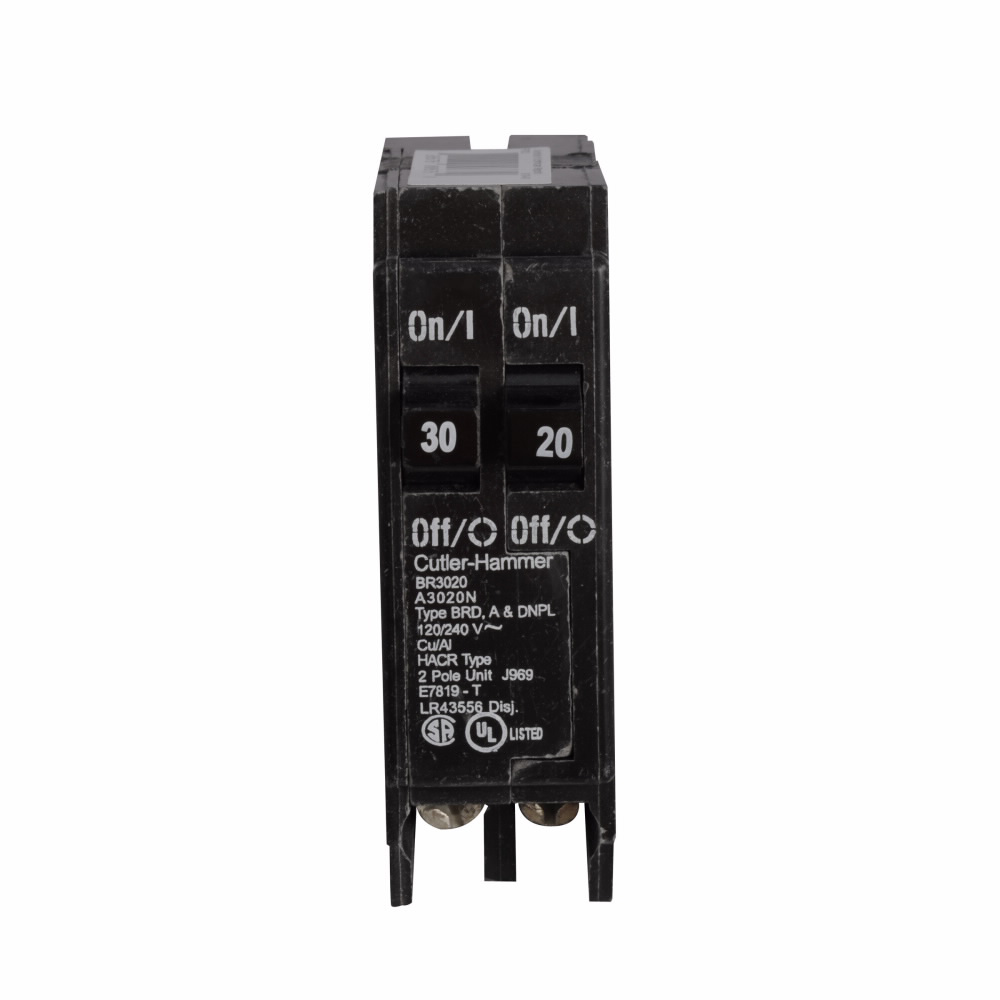

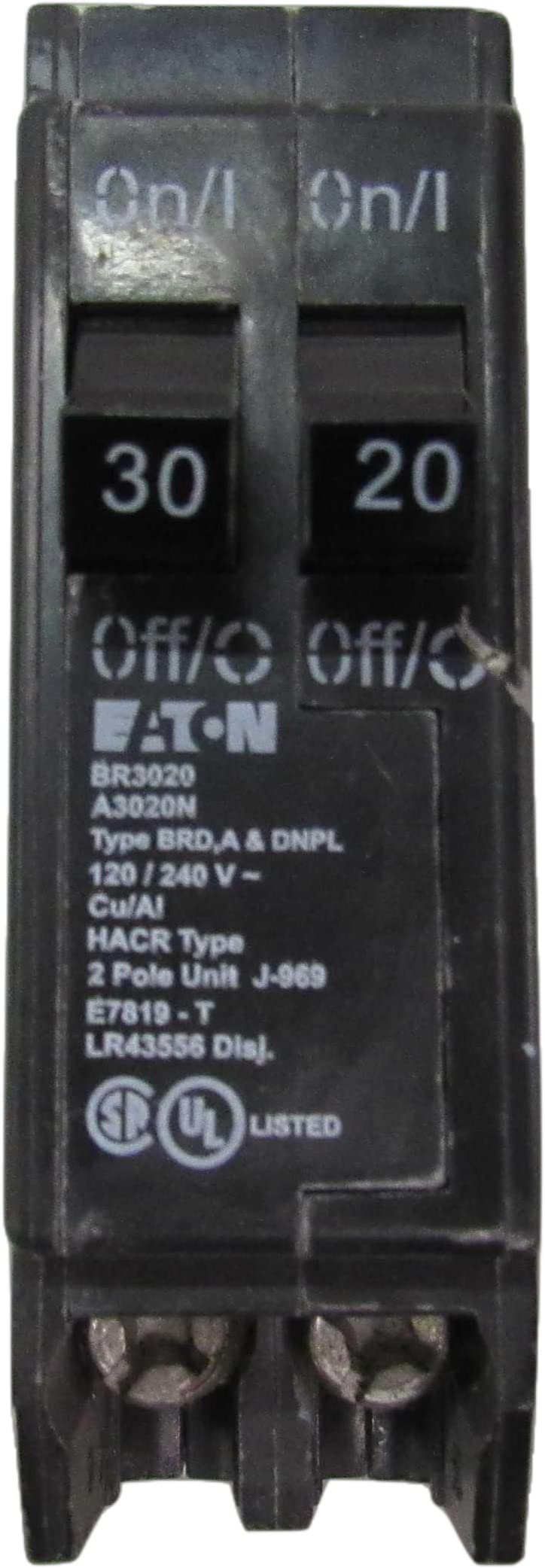

Eaton BR3020 BR 1 Inch Duplex Circuit Breaker 20/30 A

Product Description

The Eaton BR3020 is a BR thermal magnetic circuit breaker, a Type BR 1-Inch duplex circuit breaker. Rated at 20/30 A, 120/240V, with a 10 kAIC interrupt rating, this three-pole breaker features a common breaker trip and accepts #14-4 AWG Cu/Al conductors. It is designed for use with Type BR Loadcenters.

• Thermal magnetic circuit breaker
• Type BR 1-Inch duplex circuit breaker
• Common breaker trip

Product Highlights

Eaton BR3020 duplex circuit breaker designed for residential load centers and panelboards. It provides reliable circuit protection with a common trip mechanism.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BR3020

Technical Specifications

• Brand: Eaton
• Voltage: 120/240 Volt
• Amperage: 20 Amp
• Trip Type: Common Breaker Trip
• Wire Size: 14-4 AWG
• Conductor Size: 14-4 AWG
• Number of Poles: 2 Pole
• Interrupt Rating: 10 kAIC
• Material: Thermoset
• Mounting Type: Plug-On
• Voltage Rating: 120/240 VAC
• Amperage Rating: 20/30 A
• Product Length/Depth: 3 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489

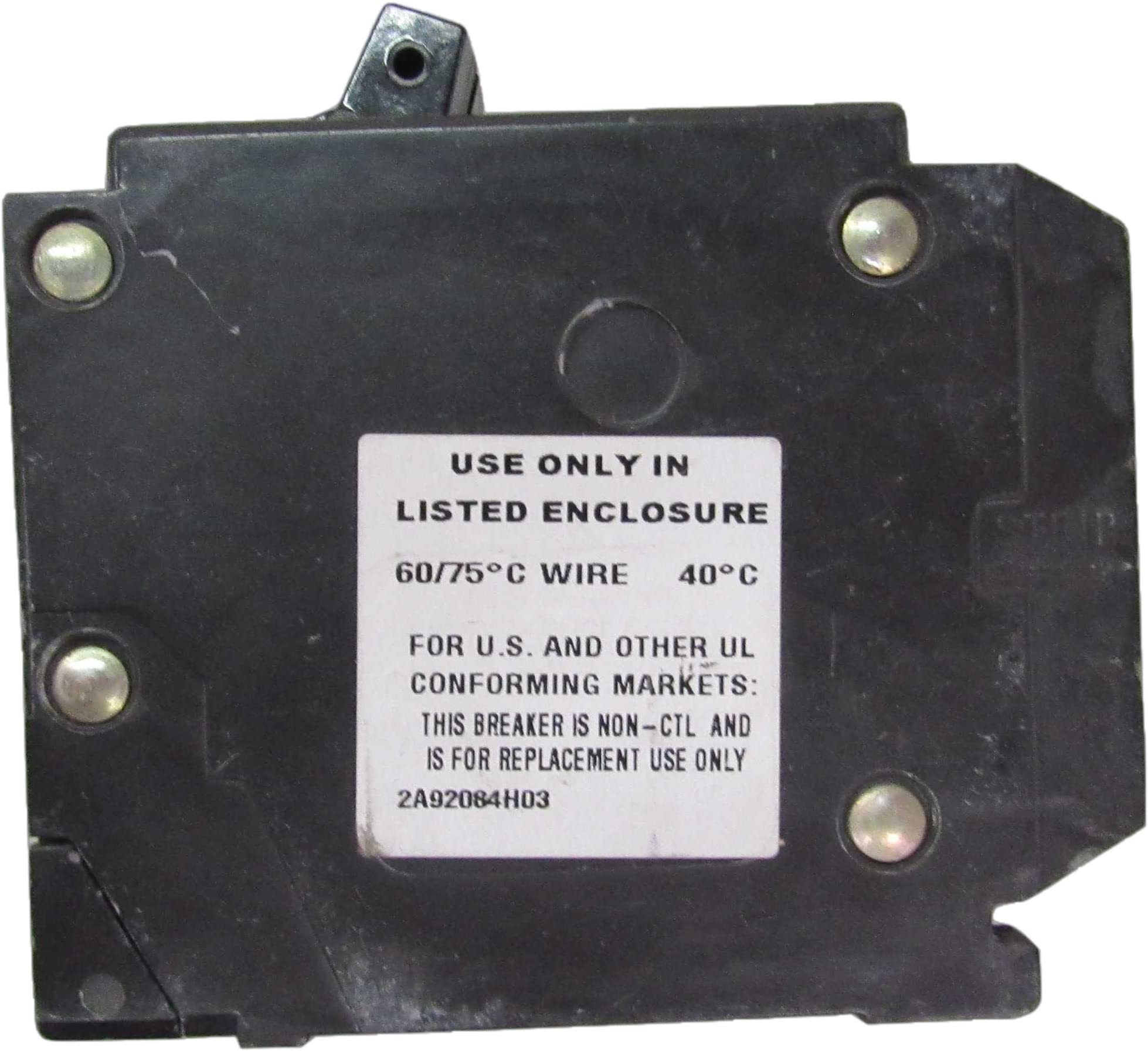

• Catalog Notes: Non-CTL
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Main Circuit Breaker: BR
• Volts AC: 120, 240
• Amps: 20, 30
• Family / Style: BR
• Interrupt Rating AC: 10 kA
• Application: Type BR Loadcenter Applications
• Warranty: Limited lifetime residential, 1 year commercial
