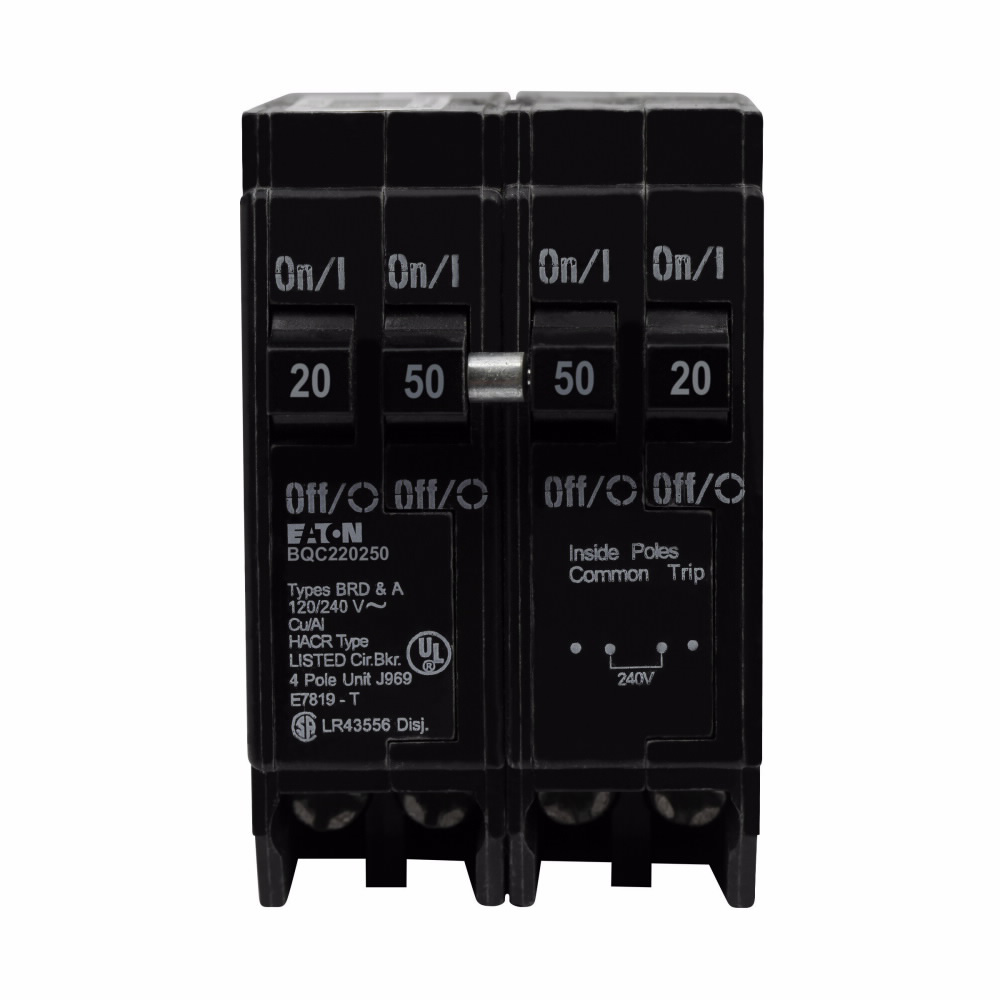

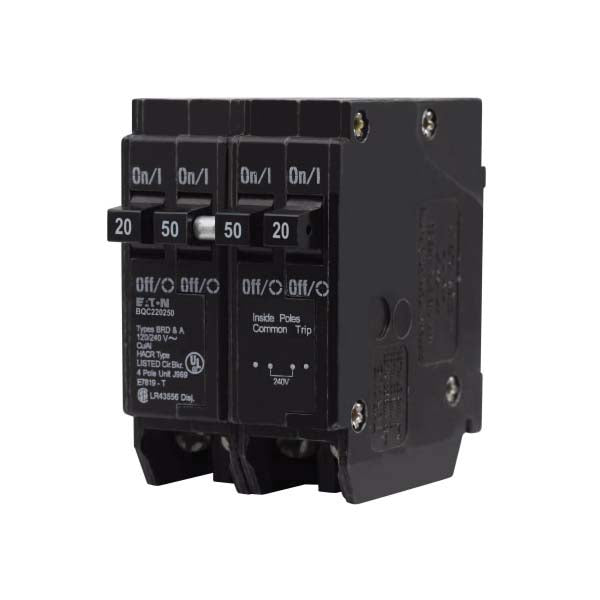

Eaton BQC220250 1 Inch CTL Class Type BQC Plug-On Circuit Breaker

Product Description

Eaton offers the BQC220250, a thermal magnetic circuit breaker designed for residential applications. This device is a Type BQC one-inch CTL plug-on circuit breaker. It features a rejection tab for enhanced safety and is suitable for various environments.

• Type BQC with thermal magnetic function.
• Contains a rejection tab for added safety.
• Four-pole configuration supporting two-pole 20 amp and 50 amp circuits.

Product Highlights

This circuit breaker is ideal for load centers, panelboards, and similar devices. It is versatile for multiple applications, including arc fault and ground fault protection.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Cutler-Hammer / Eaton

Technical Specifications

• Catalog Number: BQC220250
• Voltage Rating: 120/240 Volt
• Amperage Rating: 20 to 50 Amp
• Interrupt Rating: 10 kAIC
• Number of Poles: 4
• Mounting Type: Plug-On
• Wire Size: 14 to 4 AWG
• Trip Type: Common breaker trip
• Standards: UL 489, Federal Specifications Classification W-C375
• Made in: USA
