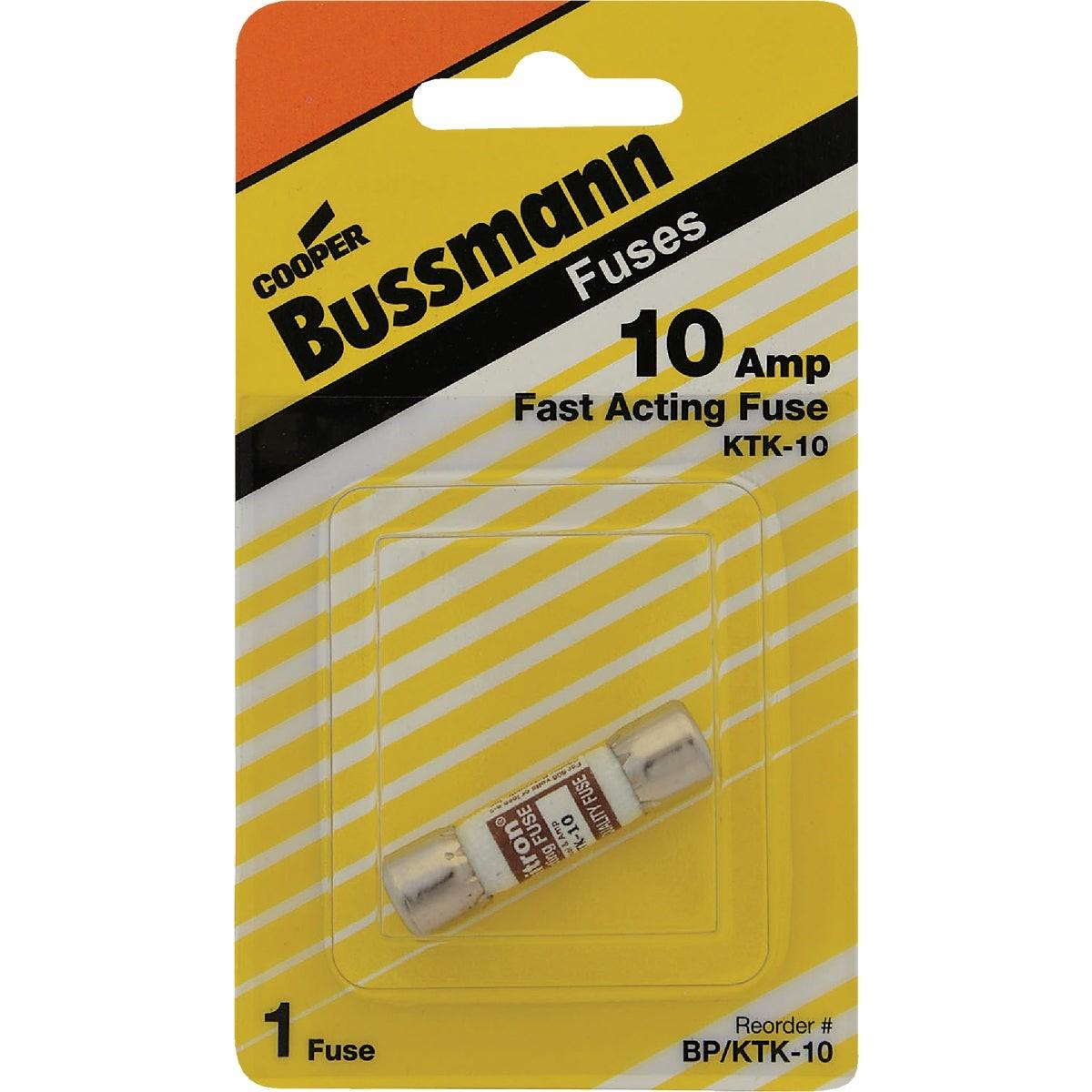

Eaton BP/KTK-10 Limitron Ktk Midget Fuse 10A 600V

Product Description

The EATON BP/KTK-10 is a fast-acting supplemental midget cartridge fuse in the Limitron KTK series, rated at 10 amps and 600 volts maximum. It is built with a high-strength melamine tube that supports a high interrupting rating, making it suitable for demanding control and distribution panel applications. The fuse measures 1.5 inches in length and 0.406 inches in diameter. Licensed electricians and industrial maintenance technicians install this fuse in low-voltage supplemental overcurrent protection roles where compact form factor and fast response time are required.

The BP/KTK-10 is designed for use in control circuits, lighting circuits, and meter circuits across residential, commercial, and light industrial settings. Its midget cartridge form factor fits standard KTK fuse holders and supplemental fuse blocks. The fast-acting characteristic responds quickly to overcurrent events, protecting sensitive downstream equipment from damage caused by sustained fault conditions.

Key Features

• Fast-acting response for protection of sensitive control and lighting circuits
• High-strength melamine tube construction supports high interrupting rating
• Rated 10 amps at 600 volts maximum
• Compact midget cartridge form: 1.5 inches long by 0.406 inches in diameter
• UL listed for supplemental overcurrent protection applications
• Fits standard KTK-series fuse holders and supplemental fuse blocks

Compatibility

Designed as an OEM-compatible replacement for KTK-series midget fuse holders used in control circuits, lighting circuits, and meter circuit applications requiring a 10A fast-acting supplemental fuse at up to 600 volts.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC). Always de-energize and lock out the circuit before replacing a fuse. Verify that the replacement fuse amperage and voltage ratings match the original equipment specification before inserting into the fuse holder. Do not install a higher-amperage fuse as a substitute for a blown fuse without first identifying and correcting the root cause of the overcurrent condition.

Technical Specifications

• Amperage Rating: 10 amps
• Voltage Rating: 600 volts maximum
• Fuse Type: Fast-acting supplemental midget cartridge
• Series: Limitron KTK
• Length: 1.5 inches
• Diameter: 0.406 inches
• Tube Material: High-strength melamine
• Weight: 0.035 pounds
• Listing: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/KTK-10
