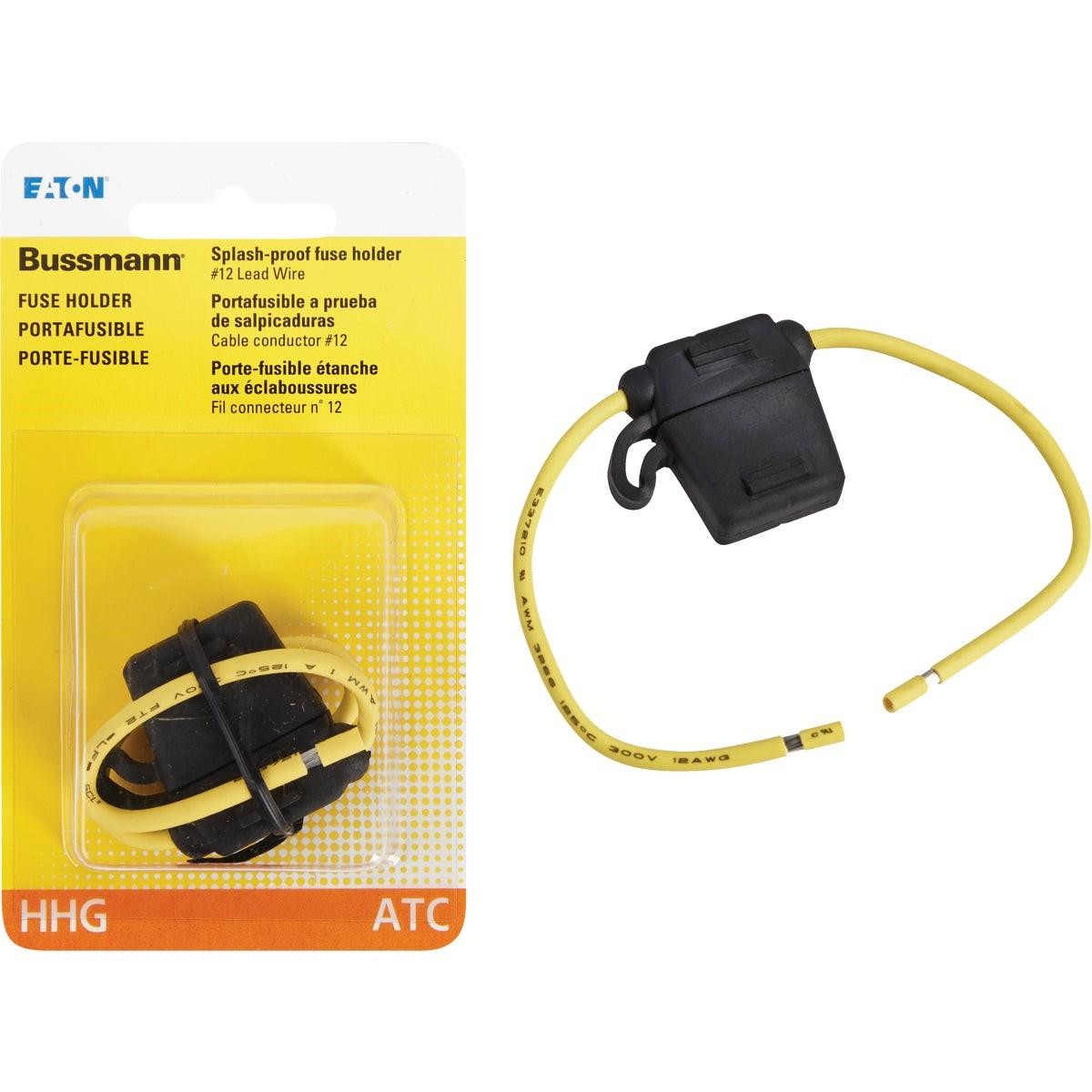

Eaton BP/HHG-RP Inline Blade Fuse Holder 30 Amp Atc

Product Description

The EATON BP/HHG-RP is an inline fuse holder designed for blade-type ATC fuses rated at 30 amps. It provides a secure, in-line connection point for protecting automotive-style low-voltage circuits commonly found in vehicles, trailers, marine applications, and light commercial equipment. The wire insulation meets UL 3266 standards, and the connector assembly conforms to SAE J2030 heavy-duty electrical connector performance requirements. Electricians and equipment technicians install this holder when a fuse-protected tap or circuit extension is needed outside of a standard fuse block.

This fuse holder is suited for blade-type ATC fuse installations where an inline, serviceable fuse point is required. Typical applications include automotive wiring harnesses, trailer lighting circuits, marine electrical systems, and auxiliary power runs on light commercial vehicles or equipment. The SAE J2030 rating makes it appropriate for environments where vibration and connector durability are a concern.

Key Features

• Accepts standard blade-type ATC fuses up to 30 amps
• Wire insulation rated to UL 3266 for durability and heat resistance
• Meets SAE J2030 heavy-duty electrical connector performance standard
• Inline design installs directly into a circuit without a fuse panel
• Provides a serviceable fuse point for easy fuse replacement in the field

Compatibility

Designed as an OEM-style inline fuse holder compatible with standard blade-type ATC fuses rated up to 30 amps.

Installation Notes

Installation is typically performed by a licensed electrician or qualified automotive or marine technician. Disconnect or isolate the circuit from its power source before cutting into any wire or making connections. Observe applicable standards such as ABYC E-11 for marine applications or relevant SAE guidelines for automotive wiring. Do not exceed the 30-amp fuse rating of this holder.

Technical Specifications

• Fuse Type: ATC Blade
• Amp Rating: 30 amps
• Wire Standard: UL 3266
• Connector Standard: SAE J2030
• Weight: 0.082 pounds
• UPC: 00051712182478

Standard Information

• Brand: EATON
• Manufacturer Part Number: BP/HHG-RP
