Eaton BL1450 Conduit Hanger Clamp 2 Inch Trade Size 5

Product Description

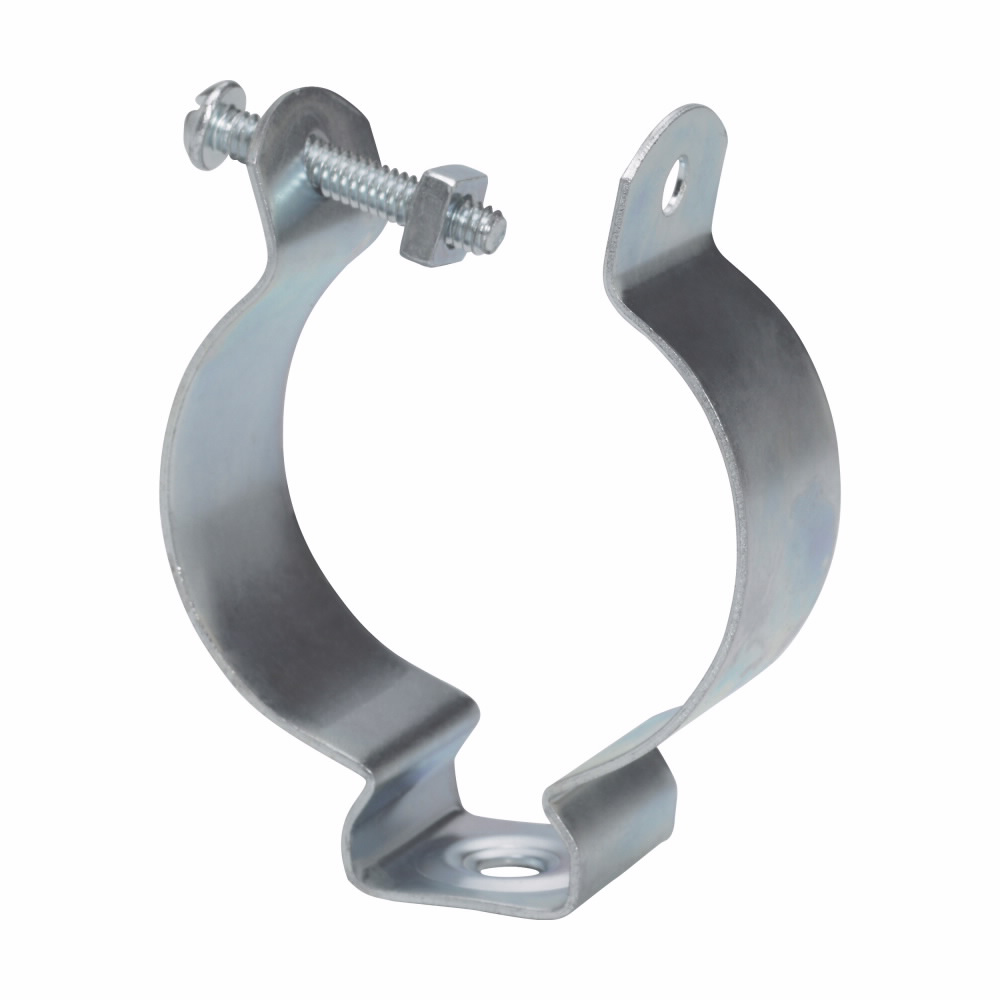

The EATON BL1450 is a zinc-plated conduit hanger clamp designed to support 2-inch EMT and 2-inch rigid conduit in overhead and structural mounting applications. Built to Trade Size 5 specifications, this fastener is part of the Eaton B-Line series of conduit and cable support hardware. It handles a rated load capacity of 400 pounds, making it suited for industrial and commercial electrical installations where reliable conduit retention under load is required. The mounting range spans 0.5 inches minimum to 4 inches maximum, accommodating a variety of beam flange thicknesses and structural members. Licensed electricians and electrical contractors are the primary installers of this hardware.

The BL1450 is used in commercial and industrial electrical installations where 2-inch EMT or 2-inch rigid conduit must be supported from structural steel, concrete inserts, beam clamps, or similar mounting points. It fits within standard conduit support systems and is appropriate for both new construction and retrofit work where a secure, corrosion-resistant conduit hanger is needed. The zinc plating provides baseline corrosion resistance for indoor and protected outdoor environments.

Key Features

• Supports 2-inch EMT and 2-inch rigid conduit
• Rated load capacity of 400 pounds
• Mounting range: 0.5 inches minimum to 4 inches maximum
• Zinc-plated finish for corrosion resistance
• Trade Size 5 designation for standard conduit support system compatibility
• Lightweight at 0.24 pounds for easy handling during installation

Compatibility

Designed as an OEM-style conduit hanger for use with 2-inch EMT and 2-inch rigid conduit systems in commercial and industrial electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit support spacing and fastener ratings. De-energize all circuits in the work area before installing or adjusting conduit support hardware. Verify that the mounting structure can support the combined load of the conduit, conductors, and hanger assembly before final tightening. Do not exceed the rated 400-pound load capacity of this hanger.

Technical Specifications

• Conduit Size: 2 inches EMT, 2 inches Rigid
• Trade Size: 5
• Load Capacity: 400 pounds
• Minimum Mount Size: 0.5 inches
• Maximum Mount Size: 4 inches
• Finish: Zinc Plated
• Weight: 0.24 pounds
• UPC: 781011198060

Standard Information

• Brand: EATON
• Manufacturer Part Number: BL1450
