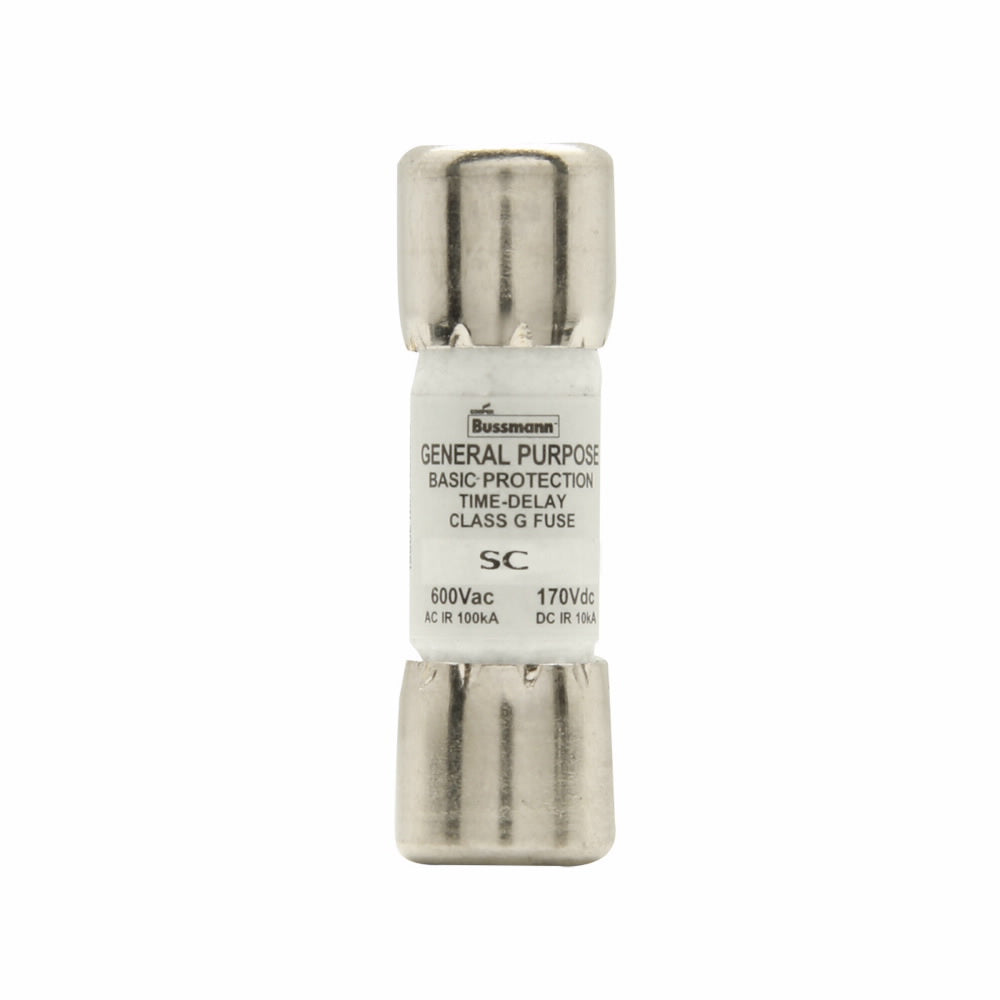

Eaton BK/SC-15 BUS SC FUSE CLASS G

Product Description

The Eaton BK/SC-15 is a Bussmann time delay fuse with a rating of 15 amperes. It is suitable for use in applications that require 600 volts alternating current or 170 volts direct current. This fuse has a 10/100 kA interrupt capacity and is classified as G. The response time is twelve seconds at twice the rated current. The fuse features a ferrule terminal and has a body size measuring zero point four one inches in diameter by one point three one inches in length.

• Suitable for fusible branch panel boards
• Class G for circuit protection
• CE and CSA certified, compliant with RoHS

Product Highlights

The BK/SC-15 fuse provides reliable circuit protection for various electrical applications.

Product Information

Standard Information

• MPN: BK/SC-15
• Manufacturer: Eaton

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 600 VAC/170 VDC
• Response Time: 12 s at 200%
• Body Size: 0.41 in Dia x 1.31 in L
• Class: G
• Terminal Type: Ferrule
• Standards/Approvals: CE Certified, CSA Certified, RoHS Compliant, UL 248-5
• Application: Fusible Branch Panel Boards, HV Branch Circuit Protection, Safety and Security Systems Applications
