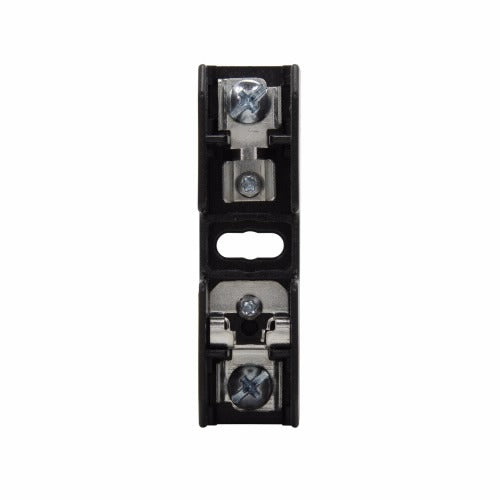

Eaton BC6031S Bussmann Series Fuse Block 30A 600V (1 Pole)

Product Description

The Eaton BC6031S is a Bussmann series Class CC single-pole fuse block rated 30 A and 600 VAC/VDC. It features screw-terminal connections with bronze contacts and a thermoplastic base, and measures 3.000 in L x 0.828 in W x 1.210 in H. The block accepts 14 to 10 AWG conductors, accepts Class CC cartridge fuses (13/32 in x 1-1/2 in), and supports DIN rail or panel mounting for panel and control applications.

• Class CC single-pole fuse block rated 30 A, 600 VAC/VDC with screw terminal connection
• Thermoplastic body with bronze contacts; dimensions 3.000 in x 0.828 in x 1.210 in
• Accepts 14 to 10 AWG conductors and Class CC cartridge fuses (13/32 in x 1-1/2 in); supports DIN rail or panel mounting

Product Highlights

Single-pole Class CC fuse block, 30 A/600 V rating, screw terminals, 3.00 x 0.828 x 1.21 in, accepts 14–10 AWG and Class CC cartridge fuses

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: BC6031S
• Country of Origin: Mexico
