Eaton BC442 Beam Fastener 1/4-20 Threaded Rod Mount

Product Description

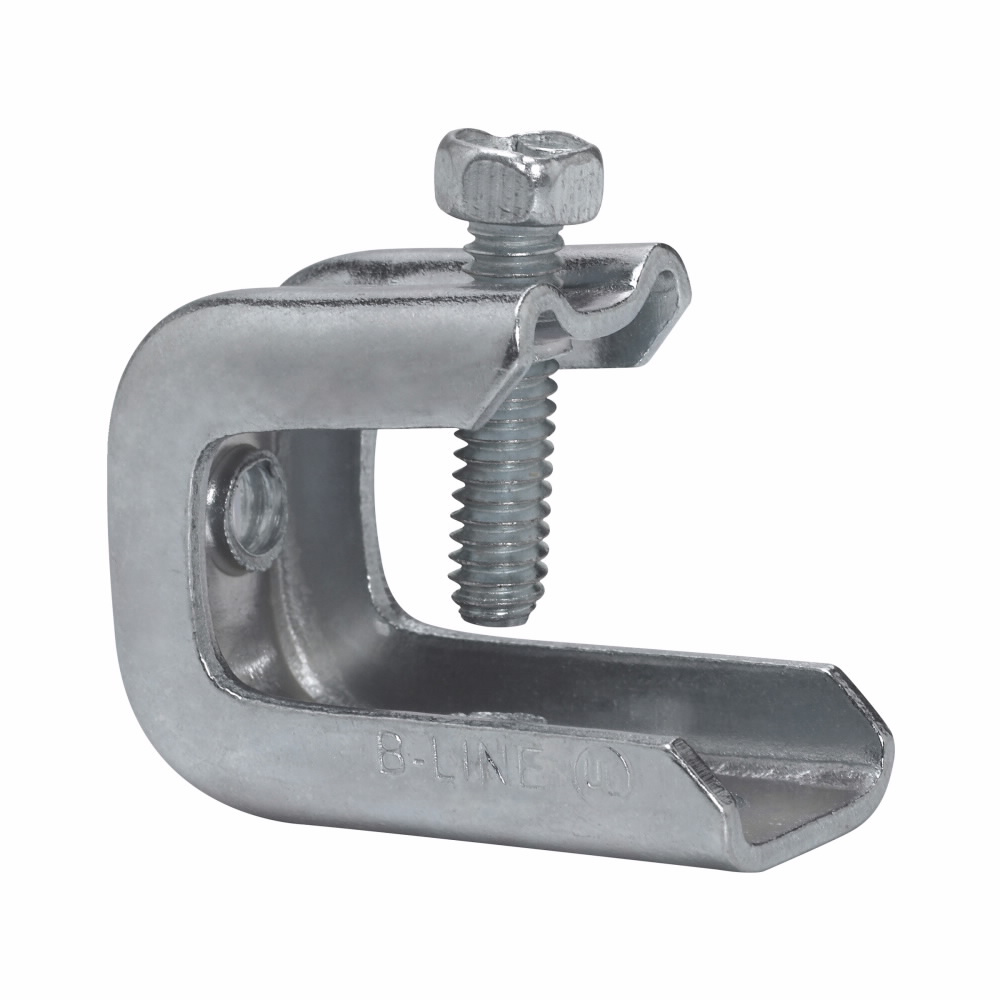

The EATON BC442 is a beam fastener from the B-Line series, designed to attach 1/4-20 threaded rod or bridle rings directly to structural beams. Weighing 0.105 pounds and measuring 1 inch in height, 1 inch in length, and 1 inch in width, this compact fastener provides a rated load capacity of 100 pounds. It is used in electrical, mechanical, and plumbing support systems where conduit, cable tray, or pipe hangers must be anchored to beam flanges without welding or drilling. Licensed electricians, pipefitters, and mechanical contractors install this type of hardware as part of suspended support assemblies in commercial and industrial construction.

The BC442 is suited for use in commercial buildings, industrial facilities, and institutional construction projects where beam-mounted support infrastructure is required. It accommodates 1/4-20 threaded rod connections, making it compatible with standard strut and hanger rod systems used in conduit support, cable management, and pipe hanging applications. This fastener is typically installed during rough-in phases by electrical or mechanical trades working overhead on structural steel framing.

Key Features

• Rated load capacity of 100 pounds for reliable overhead support
• Accepts 1/4-20 threaded rod or bridle ring connections
• Compact 1 inch x 1 inch x 1 inch profile fits tight beam flange clearances
• Lightweight at 0.105 pounds, simplifying overhead installation
• Part of the EATON B-Line series, a widely used commercial support system platform

Compatibility

Designed as an OEM-style beam fastener compatible with 1/4-20 threaded rod and bridle ring hardware used in standard commercial and industrial support system assemblies.

Installation Notes

Installation is typically performed by licensed electricians or mechanical contractors working on structural steel in accordance with applicable NEC or building code requirements. Before installation, verify that the beam flange thickness and geometry are within the fastener's design range. Do not exceed the rated 100-pound load capacity. Inspect the fastener and beam contact surfaces for damage or corrosion before applying load.

Technical Specifications

• Load Capacity: 100 pounds
• Thread Size: 1/4-20
• Height: 1 inch
• Length: 1 inch
• Width: 1 inch
• Weight: 0.105 pounds
• UPC: 781011182786

Standard Information

• Brand: EATON
• Manufacturer Part Number: BC442
