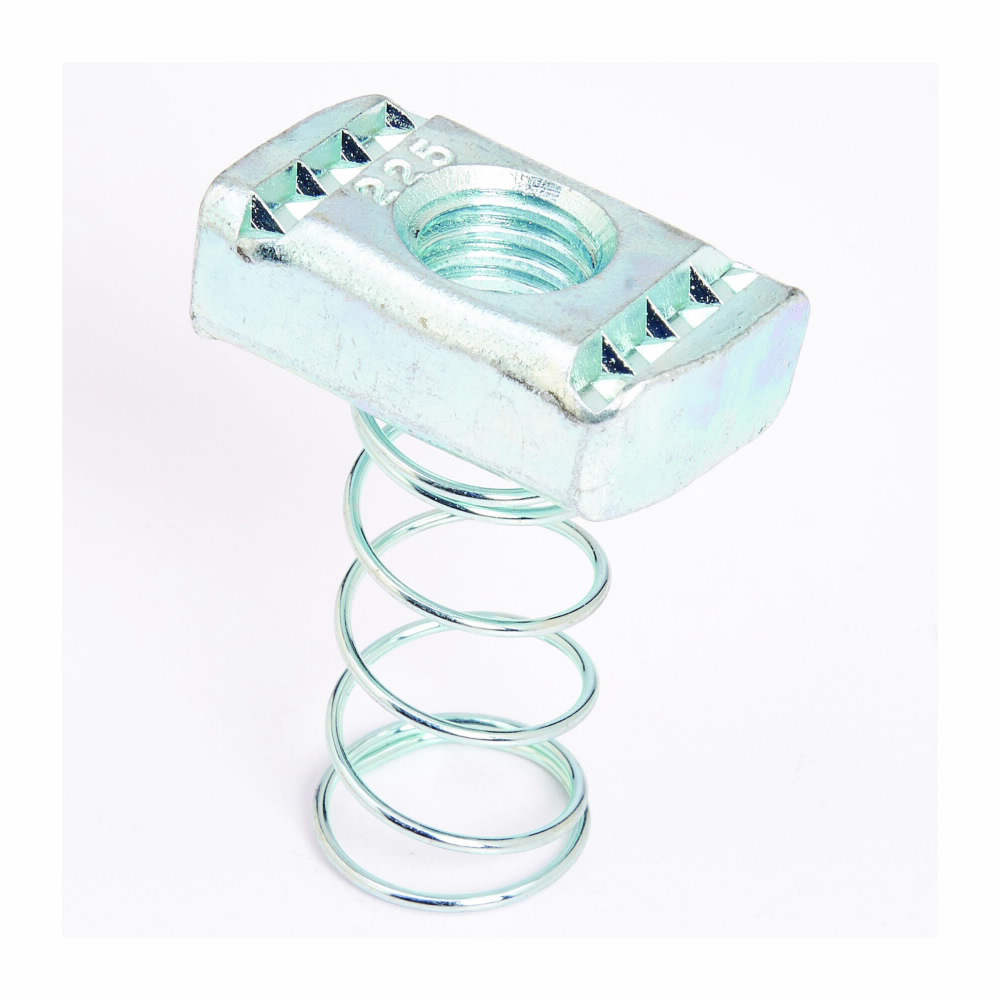

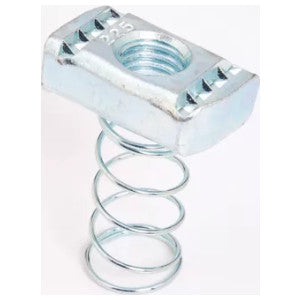

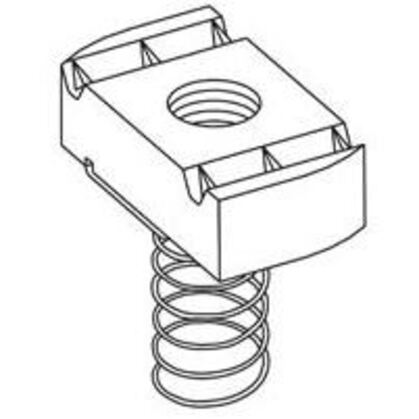

Eaton B-Line N228SS6 Spring Nut 3/8-In.-16

Product Description

The EATON B-LINE N228SS6 spring nut is designed to provide essential gripping power and ease during installation. Constructed from steel with a stainless steel type 316 finish, this spring nut is compatible with B22/B24/B26/B32 channels. It features a 3/8-in.-16 bolt size and provides 1100 lbs pull out strength and 800 lbs slip strength.

• Press Formed, Machined and Hardened From Steel
• Meets the Requirements of ASTM A108 or ASTM A36 For Larger Sizes
• Designed to provide essential gripping power and ease during installation

Product Highlights

The EATON B-LINE N228SS6 spring nut is a reliable component of metal framing systems, ensuring strength and durability.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: N228SS6
• Country of Origin: TW - Taiwan

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series spring nut
• Catalog Number: N228SS6
• UPC: 781011403669
• Product Length/Depth: 1.75 in
• Product Height: 0.85 in
• Product Width: 1.375 in
• Product Weight: 0.114 lb
• Product Type: Spring nut
• Model: Bolt/thread/rod size
• Bolt/thread/rod size: 3/8"-16
• Product Category: Channel nuts
• Type: Nut without spring
• Load rating (pull out strength): 1100 lbs
• Load rating (slip strength): 800 lbs
• Finish: Stainless steel type 316
• Material: Steel
• ECCN: EAR99
• UNSPSC: 39121311
• Use With: B22/B24/B26/B32 Channel
• Fitting Type: Channel Spring Nut
• Hole Diameter: 3/8 in.
• No. of Holes: 1
• Applications: STRUT FITTINGS,BF-CHANNEL NUTS (BF)
• Size: 3/8 In-16 TPI
• Brand: B-Line
• Sub Brand: Bolted Framing
• 12-Digit UPC: 781011403669
• GTiN: 00781011403669
• Product UPC: 78101140366
• Series: B-Line
• Pull Out Strength: 1100 lbs
• Slip Strength: 800 lbs
• Thread Size: 3/8"-16
• Diameter: 3/8 in
