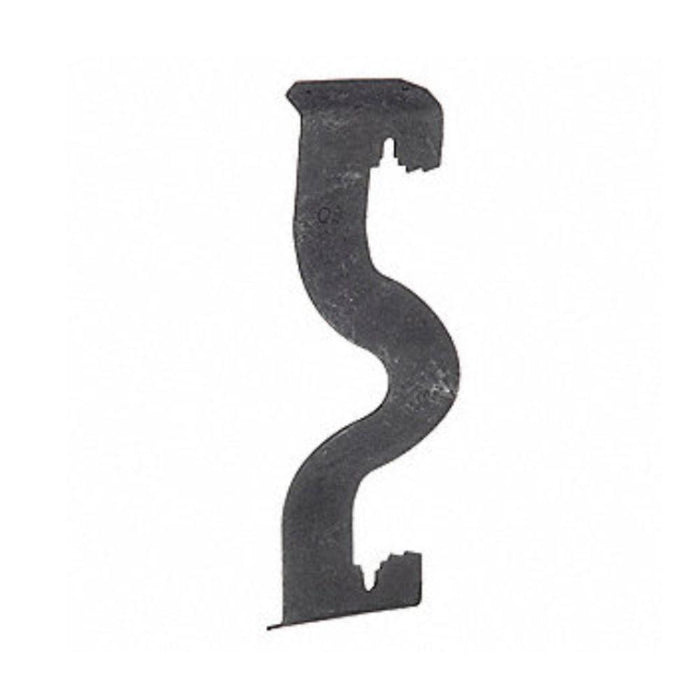

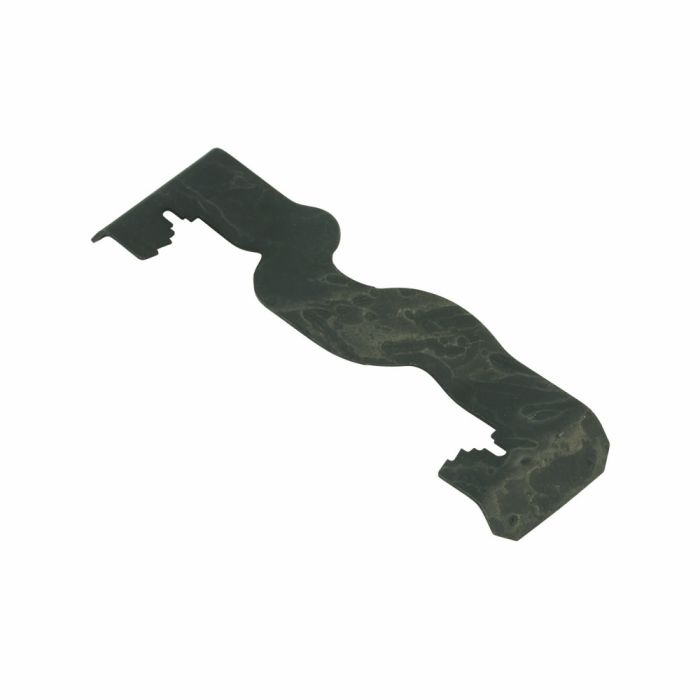

Eaton B-Line BW8 Rod and Wire Fastener

Product Description

The Eaton B-Line BW8 is a rod and wire fastener designed to attach conduit to wire rods or flanges. It supports all threaded rods and drop wires for conduit and cable applications. This fastener is suitable for use with flexible metallic tubing or armored cable.

• Attaches conduit to wire rods or flanges
• Clip on installation
• Can be used for flexible metallic tubing, armored cable, portable cable, control cable, and communication cable

Product Highlights

The Eaton B-Line BW8 rod and wire fastener provides secure support for conduit and cable installations.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BW8

Technical Specifications

• Product Name: Eaton B-Line series rod and wire fastener
• Catalog Number: BW-8
• UPC: 781011197100
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Certifications: UL/CUL listed
• Product Type: Rod and wire fastener
• Application: Attaches conduit to wire rods or flanges
• Material: Steel
• Manufacturer: EATON
• Load Capacity: 25/50/100 lb
• Flange Thickness: 1/8 to 1/4 in
• Suitable For Use With: Flexible Metallic Tubing or Armored Cable
• Specifications: 9 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in EMT/Rigid Conduit
• Applications: For Commercial, Institutional Buildings, Structures
• Cable Size: 12-8 AWG
• Trade Size: 1/2 Inch
• Type: Threaded
• Brand: Eaton
• Sub Brand: B-Line series
• 12-Digit UPC: 781011197100
• GTiN: 00781011197100
• Product UPC: 78101119710
• Used With: Conduit and Cable
• Diameter: 1/2 in
