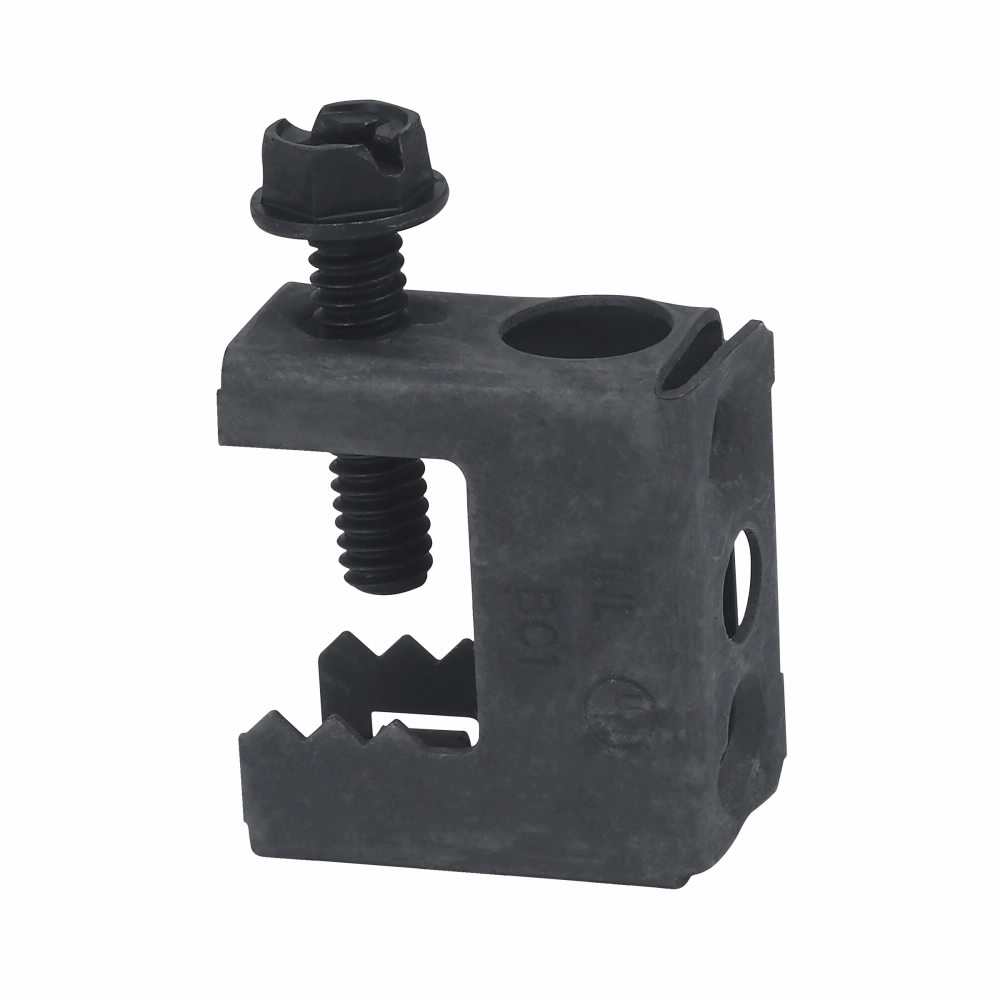

Eaton B-Line BC1 Adjustable Beam Clamp Through 1/2 Inch Flange

Product Description

The EATON B-LINE BC1 is an adjustable beam clamp suitable for 1/2 inch conduit with a 100 lb load capacity. Constructed from high carbon steel with a zinc plated finish. It supports conduit and electrical boxes and fits beam flanges thru 1/2-Inch thick.

• Adjustable beam clamp
• Suitable for 1/2 inch conduit
• 100 lb load capacity

Product Highlights

The EATON B-LINE BC1 beam clamp is designed to support conduit and electrical boxes with a 100lb load capacity.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: BC1
• Country of Origin: US - United States

Technical Specifications

• Conduit Size: 1/2 in
• Thickness: 1/2 in
• Load Capacity: 100 lb
• Material: High Carbon Steel
• Finish: Zinc Plated
• Jaw Opening: 1/2-Inch
• Flange Thickness: 1/2-Inch
• Rod Size: 1/4 - 20
• Accepts: S hooks, 1/4-Inch threaded rod and 3/8-Inch threaded rod, 1/4-Inch 20-threaded bridle rings as well as size 10-24 threaded bridle rings
• Product Length/Depth: 1 in
• Product Height: 1 in
• Product Width: 1 in
• Certifications: UL Listed
• Product Type: Conduit to beam fastener
• Applications: For Commercial, Institutional Buildings, Structures
• Trade Size: 1/2 Inch
• Type: Beam fasteners
• Maximum Jaw Capacity Decimal: .5
• Load Capacity In Lb Uom: LB
• Model: BC
• Maximum Jaw Capacity Decimal Uom: in
• Suitable For Use With: Conduit and Electrical Box
