Eaton B-Line B3373-1 1/2PLN Riser Clamp 1 1/2 inches

Product Description

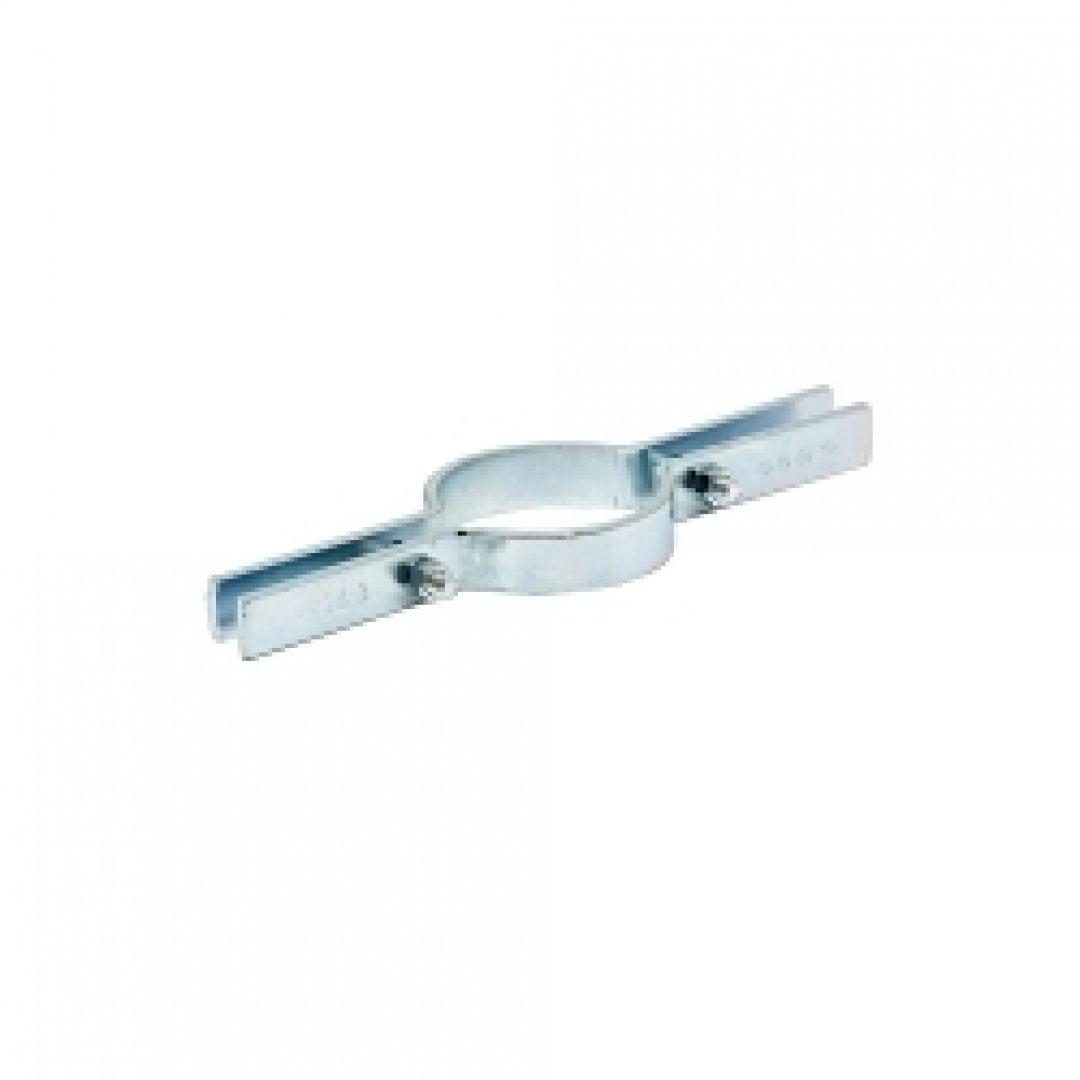

The EATON B-LINE B3373-1 1/2PLN is a 1 1/2" riser clamp. It is designed to vertically suspend metal pipe, PVC pipe, or copper tubing. The clamp measures 1.5" H x 10.25" L x 1" W and is constructed of steel with a plain finish. Includes hex nuts and head hex cap screws.

• Includes hex nuts and head hex cap screws
• cULus Listed
• Federal Spec WW-H-171E, A-A-1192A Type 24

Product Highlights

The EATON B-LINE riser clamp is made of steel and is suitable for suspending various types of pipes and tubing.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3373-1 1/2PLN
• Country of Origin: CN - China

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series riser clamp
• Catalog Number: B3373-1 1/2PLN
• UPC: 781011720407
• Product Length/Depth: 10.25 in
• Product Height: 1.5 in
• Product Width: 1 in
• Certifications: Not Applicable
• Product Type: Riser clamp
• Special features: Includes hex nuts and head hex cap screws
• Type: Long Ear Riser
• Material: Steel
• ECCN: EAR99
• UNSPSC: 39121311
• Nominal Size: 1-1/2 in
• Finish: Plain
• Bolt Diameter: 3/8 in
• Load Capacity: 255 lb
• Mounting Type: Channel
• Pipe Size: 1-1/2 in
• Series: B3373
• Temperature Rating: 650 deg F
• Torque Rating: 19 ft-lb
• Brand: B-Line
