Eaton B-Line B3170CT-1-R3/8 Adjustable Swivel Ring 1 inches 3/8 inches-16

Product Description

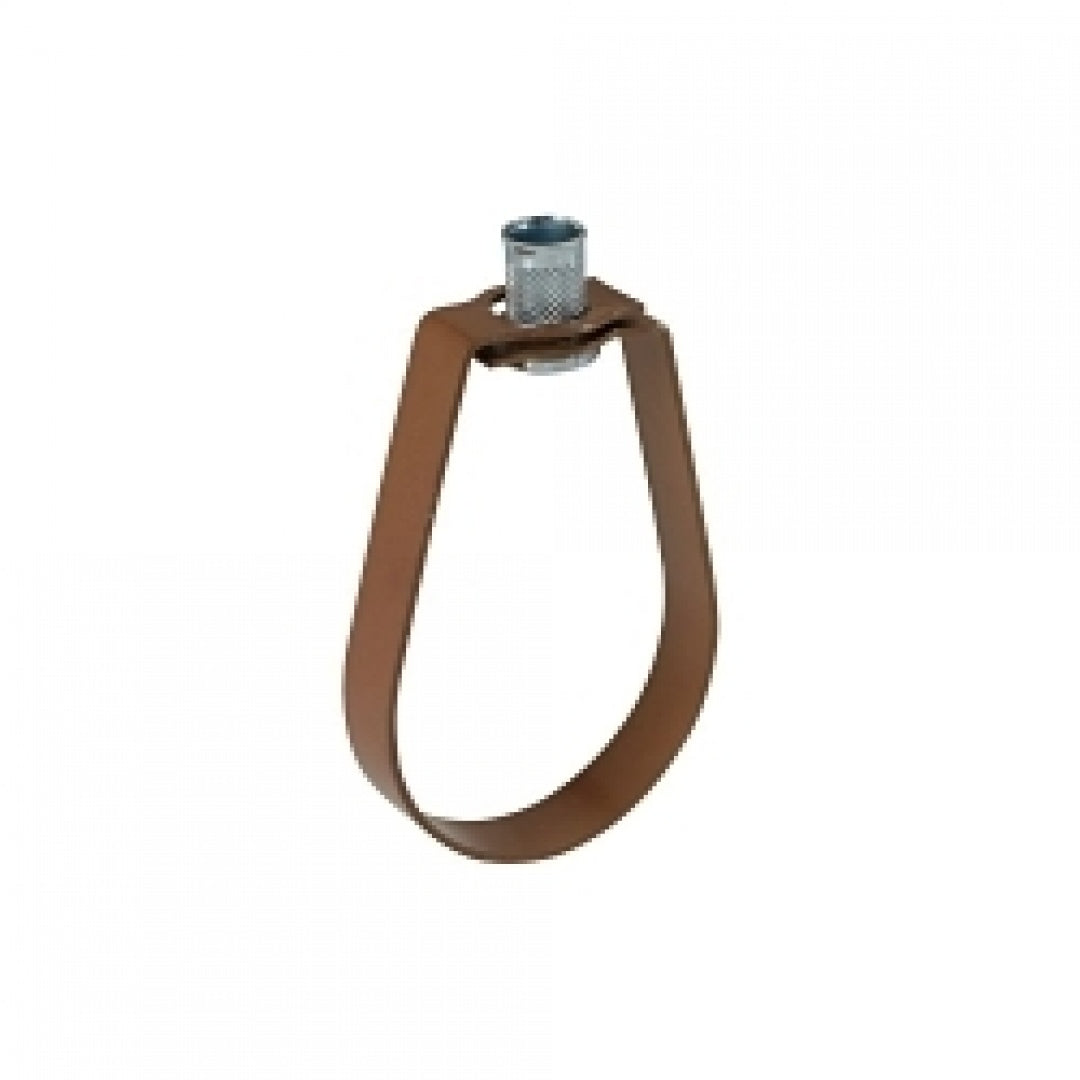

The EATON B-LINE B3170CT-1-R3/8 is an adjustable swivel ring designed for suspended tubing, allowing vertical adjustment. It is constructed from steel with a Dura Copper finish. This hanger supports a maximum pipe size of 1 inch and a rod size of 3/8-16, with a load capacity of 180 lb. It is suitable for use with pipe hangers, mech-rings, bands, and straps.

• Adjustable swivel hanger for copper tubing
• For suspended tubing allowing vertical adjustment
• 1 in Pipe/Tube

Product Highlights

Adjustable swivel ring for suspending tubing with vertical adjustment. Steel construction with Dura Copper finish. Supports 1" pipe and 3/8-16 rod.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3170CT-1-R3/8

Technical Specifications

• Manufacturer: EATON B-LINE
• Product Name: Eaton B-Line series adjustable swivel hanger for copper tubing
• Catalog Number: B3170CT-1-R3/8
• UPC: 781011099473
• Product Length/Depth: 3.14 in
• Product Height: 0.951 in
• Product Width: 1.406 in
• Certifications: Not Applicable
• Product Type: Adjustable swivel hanger for copper tubing
• Application: Suspended tubing allowing vertical adjustment
• Pipe size - max: 1 in
• Model: Adjustable swivel hanger for copper tubing
• Type: Type 10
• Material: Steel Dura Copper
• Finish: Dura Copper™
• Load Capacity: 180 lb
• Rod Size: 3/8-16 in
• Suitable For Use With: Pipe Hanger, Mech-Ring, Band and Strap
