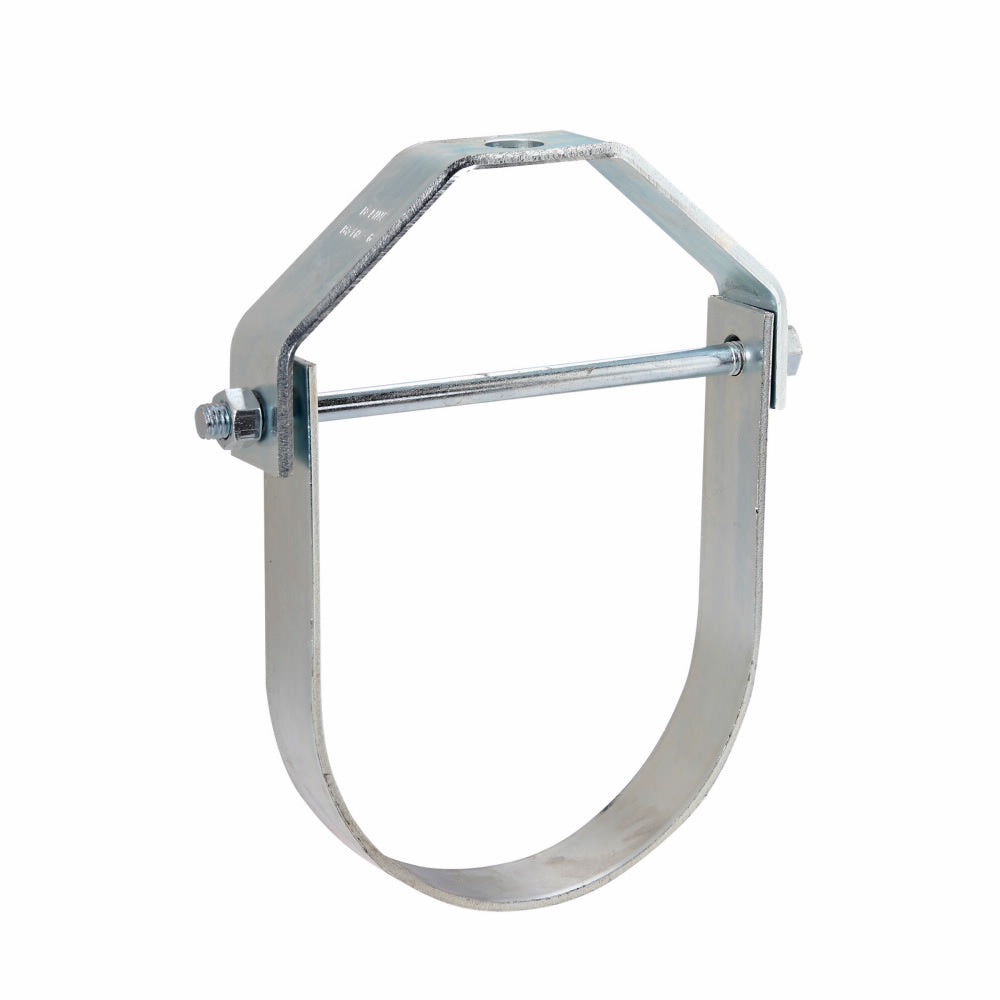

Eaton B-Line B3100-6ZN Clevis Hanger 6 inches

Product Description

The EATON B-LINE B3100-6ZN is a Slide-Rite clevis hanger designed for overhead installation. It is made of steel with a zinc finish and supports a maximum pipe size of 6". It is suitable for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.

• Design aligned bolt hole for overhead install
• Pipe will not 'pinch' when installing
• 15 deg swing in either direction allows pipe to easily feed thru

Product Highlights

The B3100-6ZN clevis hanger ensures secure and efficient pipe suspension with its robust steel construction and user-friendly design.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3100-6ZN
• Country of Origin: USA

Technical Specifications

• Product Name: Eaton B-Line series Slide-Rite clevis hanger
• Catalog Number: B3100-6ZN
• UPC: 781011050672
• Product Length/Depth: 10.408 in
• Product Height: 1.5 in
• Product Width: 10 in
• Product Weight: 2.575 lb
• Certifications: cUL Listed UL Listed
• Product Type: Clevis hanger
• Application: Design aligned bolt hole for overhead install
• Operating temperature - max: 650 A. The Eaton B-Line B3100-6ZN is a Slide-Rite clevis hanger designed for overhead installation. It is made of steel with a zinc finish and supports a maximum pipe size of 6". It is suitable for the suspension of non-insulated pipe or insulated pipe with a B3151 shield.
• bullet_points: ['Design aligned bolt hole for overhead install', "Pipe will not 'pinch' when installing", '15 deg swing in either direction allows pipe to easily feed thru']
• product_highlights: The B3100-6ZN clevis hanger ensures secure and efficient pipe suspension with its robust steel construction and user-friendly design.
