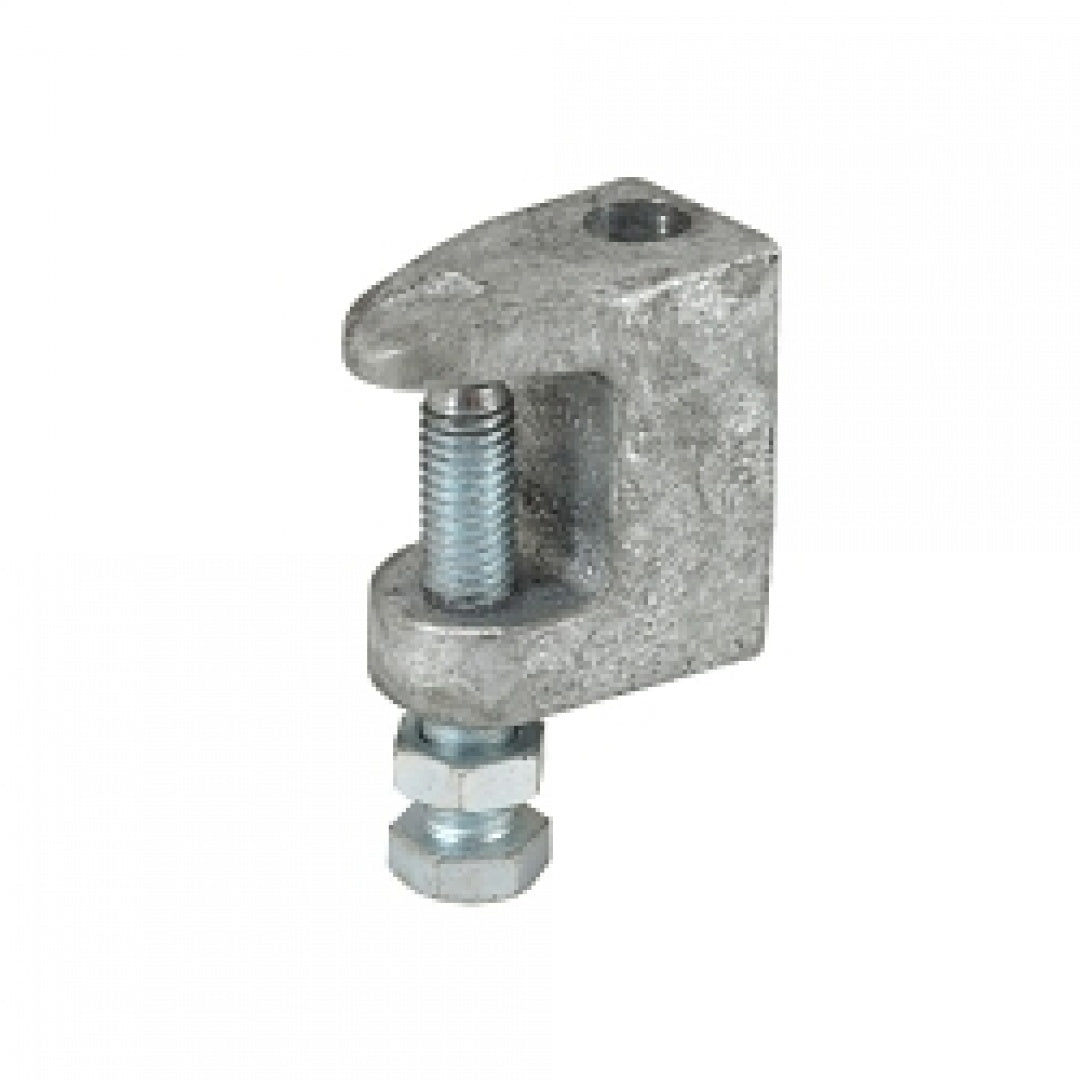

Eaton B-Line B3033-1/2PLN Wide Jaw Reversible C-Clamp 1/2-13

Product Description

The EATON B-LINE B3033-1/2PLN is a wide jaw reversible C-clamp with a 1/2-13 rod. It is constructed from cast malleable steel with a plain finish. Designed for attachment to structural shapes requiring a wider throat, especially under roofs with bar joist construction. Hardened cup point set screw and jam nut included.

• Wide Jaw
• Reversible C-Clamp
• 750/1130 lb Load

Product Highlights

Wide jaw reversible C-clamp made from cast malleable steel with a plain finish. Ideal for structural attachments.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B3033-1/2PLN
• Country of Origin: China

Technical Specifications

• Rod Size: 1/2-13
• Load Capacity: 750/1130 lb
• Material: Cast Malleable Steel
• Product Length/Depth: 2.1875 in
• Product Height: 2.3125 in
• Product Width: 1.25 in
• Certifications: cULus Listed
• Product Type: C-clamp
• Thread/rod size: 1/2"-13
• Type: Reversible wide jaw wedge c-clamp
• Special features: Safety factor of 5, setscrew & locknut included
• Finish: Plain
• Flange Thickness: 1-1/4 in
• Manufacturer: EATON
• Suitable For Use With: Pipe Hanger
• Application: PIPE HANGERS,MECH.-BEAM CLAMPS
• Standard: cULus Listed
• Sub_Brand: B-Line series
