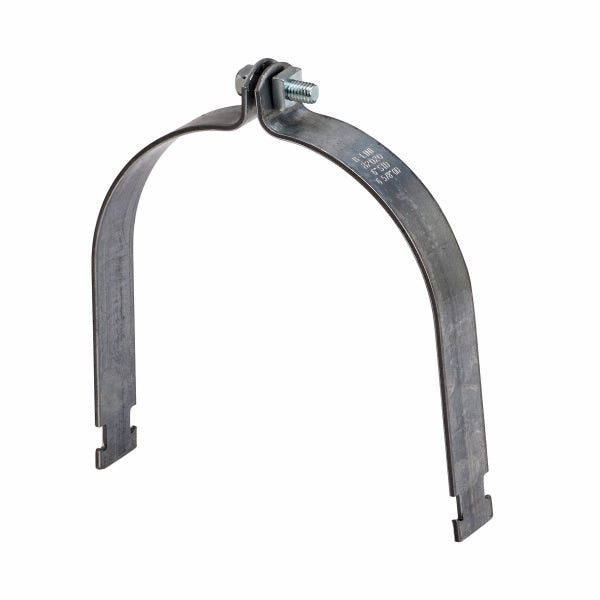

Eaton B-Line B2017ZN Pipe and Conduit Clamp 4 inches O.D.

Product Description

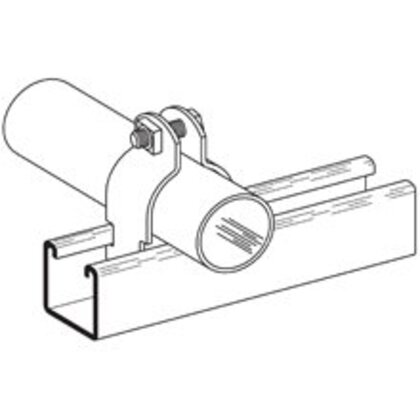

The Eaton B-Line B2017ZN pre-assembled plated conduit clamp is made from steel and supports a rigid size of 4 inches. It features a safety factor of 5 and includes a combination recess hex head machine screw and square nut. This clamp is suitable for strut fittings, pipe, and tubing applications.

• Pre-Assembled
• Plated Conduit Clamp
• Safety Factor of 5

Product Highlights

The B-Line B2017ZN is a steel, electro-plated zinc conduit clamp with a vertical max load rating of 800 lb.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2017ZN
• Country of Origin: United States

Technical Specifications

• Rigid Size: 4 inches
• Material: Steel, Low Carbon
• Includes: Combination Recess Hex Head Machine Screw and Square Nut
• Manufacturer: EATON B-LINE
• Load Rating: 800 lb. Vertical Max
• Rigid Conduit Trade Size: 4 in. (100mm)
• Gauge: 12 Gauge
• Type: Pipe and Conduit Clamp
• Construction: 2-Piece
• Finish: Electro-Plated Zinc
• Diameter: 4 in
• Item: Conduit Clamp
• Application: Strut Fittings, BF-FTGS, Pipe And Tubing Clamps
• Height: 0.099"
• Length: 6.73"
• Mounting Type: Channels
• Size: 4"
• Trade Size: 4"
