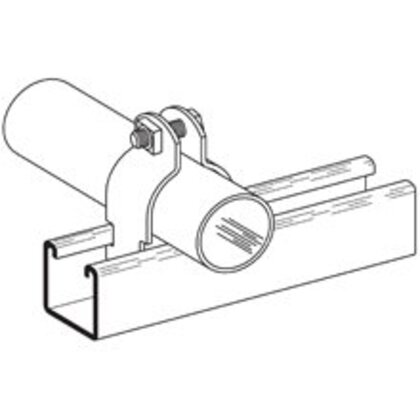

Eaton B-Line B2011ZN Pipe and Conduit Clamp 1-1/4 inches

Product Description

The EATON B-LINE B2011ZN is a pipe and conduit clamp designed for use with rigid conduit. It is constructed from steel with a zinc plated finish. This clamp provides support without requiring drilling or welding and is suitable for B-Line channels.

• Includes combination recess hex head machine screw
• Safety factor of 5
• Designed to provide support without drilling or welding

Product Highlights

The EATON B-LINE B2011ZN pipe and conduit clamp is made of steel with zinc plated finish. It includes a combination recess hex head machine screw.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B2011ZN
• Country of Origin: US - United States

Technical Specifications

• Product Type: O.D. pipe and conduit clamp
• Catalog Number: B2011ZN
• UPC: 781011610432
• Product Length/Depth: 3.351 in
• Product Height: 0.0705 in
• Product Width: 1.25 in
• Product Weight: 0.2 lb
• Model: Special features
• Special features: Includes combination recess hex head machine screw
• Type: Pipe or conduit clamps
• Material: Steel
• Series: B2000
• For Use With: Rigid Conduit
• Finish: Zinc Plated
• Conduit Size: 1-1/4 in
• Thickness: 14 ga
• Mounting: Channel Mounting
• Minimum Yield: 33000 psi
• Vertical Load Capacity: 600 lb
• Transverse/Longitude Load Capacity: 75 lb
• Safety factor: 5
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121311
• Conduit Type: RIgid/IMC
• Fitting Type: Conduit Clamp
• Load Rating: 600 lb.
• Rod Size: 1-1/4 in.
• Diameter: 1 1/4 in
• Application: Strut Fittings, BF-Fittings, Pipe and Tubing Clamps
• Standard & Approvals: RoHS Compliant
• Includes: Combination Recess Hex Head Machine Screw and Square Nut
