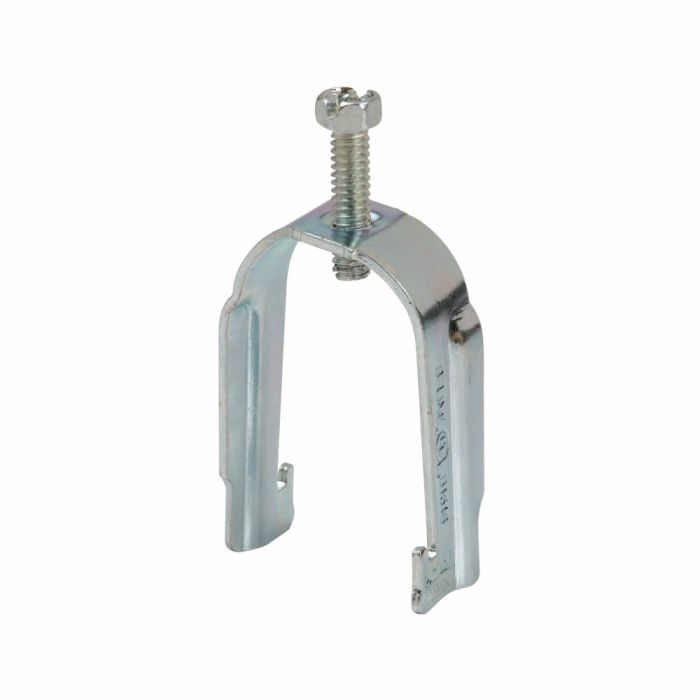

Eaton B-Line B1540S Clamp Strut to Conduit/Cbl 2-1/2in 400lb

Product Description

The EATON B-LINE B1540S is a conduit/cable to strut clamp with saddle, designed for 2-1/2 in conduit and a 400 lb load capacity. It accommodates outer diameters from 2-5/8 to 2-7/8 inches and is constructed from steel. This clamp is suitable for use with 1 5/8 in strut channels, conduit, and MC/AC cables. It features a one-piece design for easy installation.

• Conduit/Cable to Strut Clamp
• With Saddle
• For Use With 1 5/8 in Strut Channels, Conduit, MC/AC Cables

Product Highlights

The B-Line B1540S is a steel strut clamp for attaching conduit and cables to strut channels, offering a 400lb load capacity and easy installation.

Product Information

Standard Information

• Brand: EATON B-LINE
• Manufacturer Part Number: B1540S
• Country of Origin: United States

Technical Specifications

• Load Capacity: 400 lb
• Conduit Size: 2-1/2 in
• Outer Diameter: 2-5/8 to 2-7/8 in
• Material: Steel
• Finish: Pre-Galvanized
• Includes: Bolt, Saddle
• Standards: UL Listed
• Cable Range: 2.625 to 2.875 in
• Thread Size: 1/4"-20
• Conduit Type: EMT, Flexible, IMC, Rigid
• For Use With: 1-5/8" Strut Channels, Conduit, MC/AC Cables
• Sub-Category: Clamps
• Overall Depth: 3/4 in
• Overall Width: 3 1/4 in
• Overall Length: 4 1/8 in
• For Strut Channel Size: 1 5/8 in
• Product Name: Eaton B-Line series conduit strut clamp
• Catalog Number: B1540S
• UPC: 781011631994
• Product Type: Conduit strut clamp
• Product Category: Conduit and cable
• Mounting Type: Channel
• Suitable For Use With: MC/AC Cable and EMT/Rigid Conduit
• Outside Diameter: 2-5/8 to 2-7/8 in
