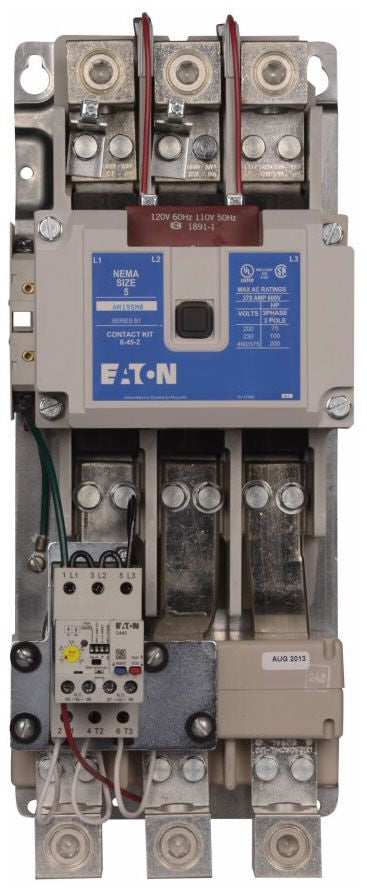

Eaton AN19SN0A5E300 Full Voltage Motor Starter

Product Description

The EATON AN19SN0A5E300 is a full voltage motor starter designed for across-the-line motor starting applications in commercial and industrial electrical systems. Full voltage starters connect the motor directly to line voltage at startup, delivering maximum starting torque without the need for reduced-voltage circuitry. This unit is installed by licensed electricians and industrial maintenance technicians working on motor control centers, panel boards, and standalone motor circuits. It provides reliable motor switching and overload protection in a single assembly, making it a standard component in HVAC, pump, and fan motor control applications.

The AN19SN0A5E300 is suited for use in commercial and light industrial settings where direct-on-line motor starting is required. Typical applications include HVAC air handling units, circulation pumps, exhaust fans, and compressor systems that call for a full voltage, across-the-line starting method. This starter is appropriate for new installations as well as replacement work on existing motor control circuits where a full voltage type is specified.

Key Features

• Full voltage across-the-line starting for maximum motor torque at startup
• Integrates motor switching and overload protection in one assembly
• Suitable for commercial and light industrial motor control applications
• Designed for installation in motor control centers or standalone enclosures

Compatibility

Designed as an OEM-style full voltage motor starter for use in commercial and industrial motor control applications where an across-the-line starting method is specified.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the motor circuit before handling or wiring the starter. Verify that line voltage, motor full load amps, and overload relay settings are matched to the connected motor nameplate before energizing. Do not bypass or omit the overload relay element during installation.

Technical Specifications

• Starter Type: Full Voltage (Across-the-Line)
• UPC: 78668541576

Standard Information

• Brand: EATON
• Manufacturer Part Number: AN19SN0A5E300
