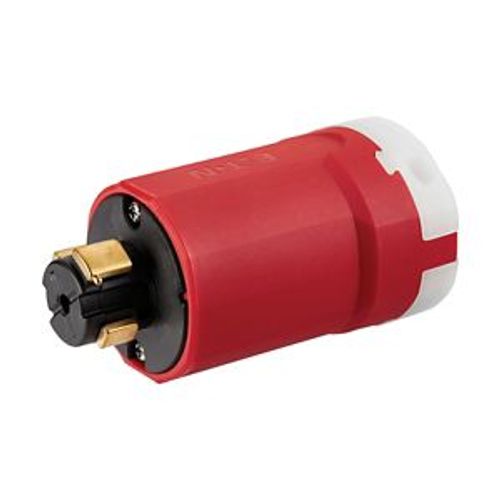

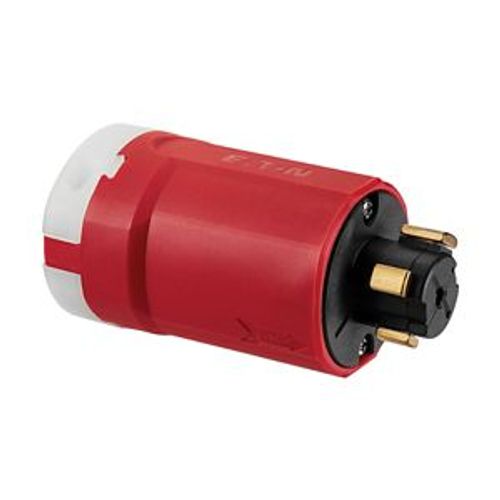

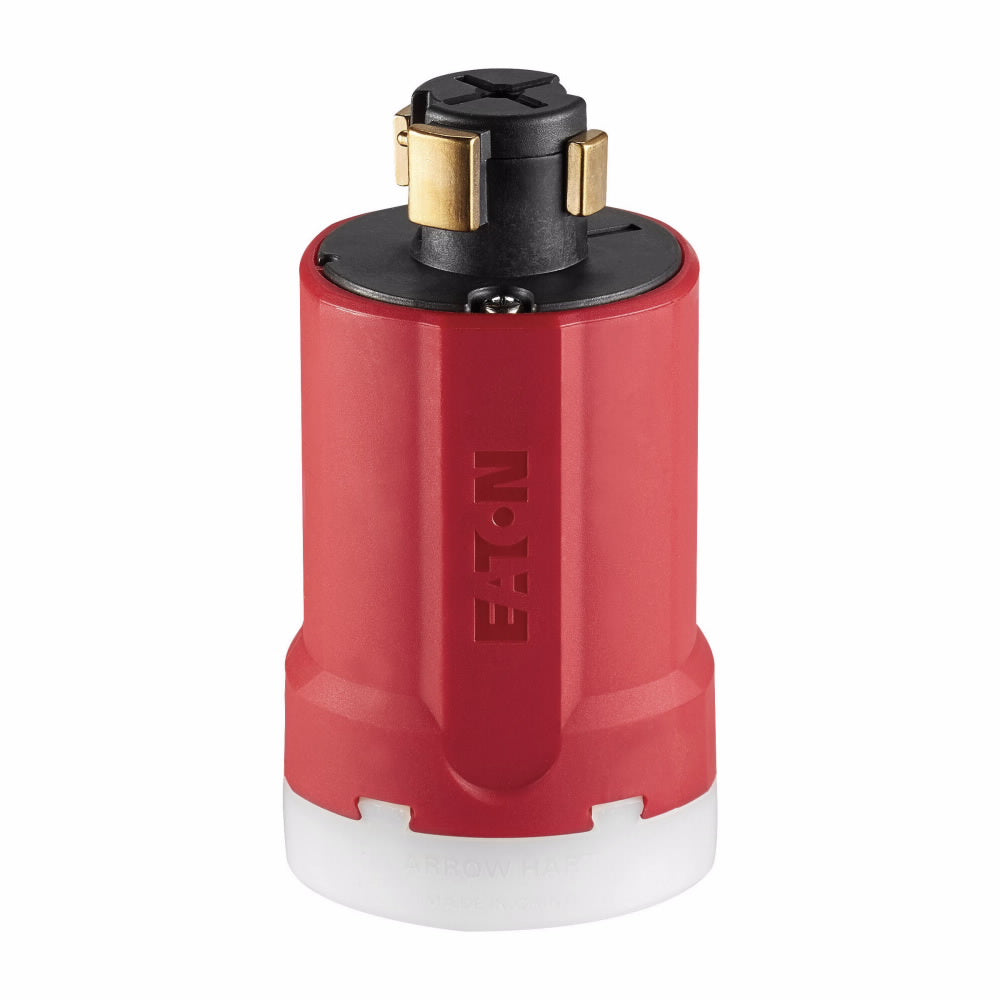

Eaton AHPL20445N Power Lock Plug 30A 480V

Product Description

The EATON AHPL20445N is a power lock plug designed for safety, utilizing a spring-loaded shutter to isolate energized contacts. Rated for 480 VAC and 30 A, this ultra grip plug features a 3-pole, 4-wire configuration and is ideal for industrial applications. Constructed from glass-filled nylon, it ensures durability and reliability in demanding environments.

• Spring-loaded safety shutter isolates energized contacts.
• Clearly marked amperage/voltage for easy identification.
• Suitable for high-abuse industrial applications.

Product Highlights

Power lock plug with spring-loaded safety shutter, ideal for industrial use.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AHPL20445N

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 480 VAC
• Number of Poles: 3
• Number of Wires: 4
• Material: Glass-Filled Nylon
• Grade: Hospital/Industrial
• Cord Diameter: 0.38 to 1.06 in
• Temperature Rating: -40 to 221 deg F
• Terminal Type: Pressure Wire
• Type: Ultra Grip
• NEMA Rating: Non-NEMA
• Standards/Approvals: BAA Compliant|Build-To-Spec|cULus Listed|FUL s, Fed Spec|NOM 426|UL 498, E3663|UL Listed to C22.2, 42
• AWG: 12-4
• Wiring: Back
• Application: Industrial
• Connector Type: Plug, Male Blades
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Material Flammability Rating: UL94 V-0
• Approval Agency: UL
• Contact Material: Brass
