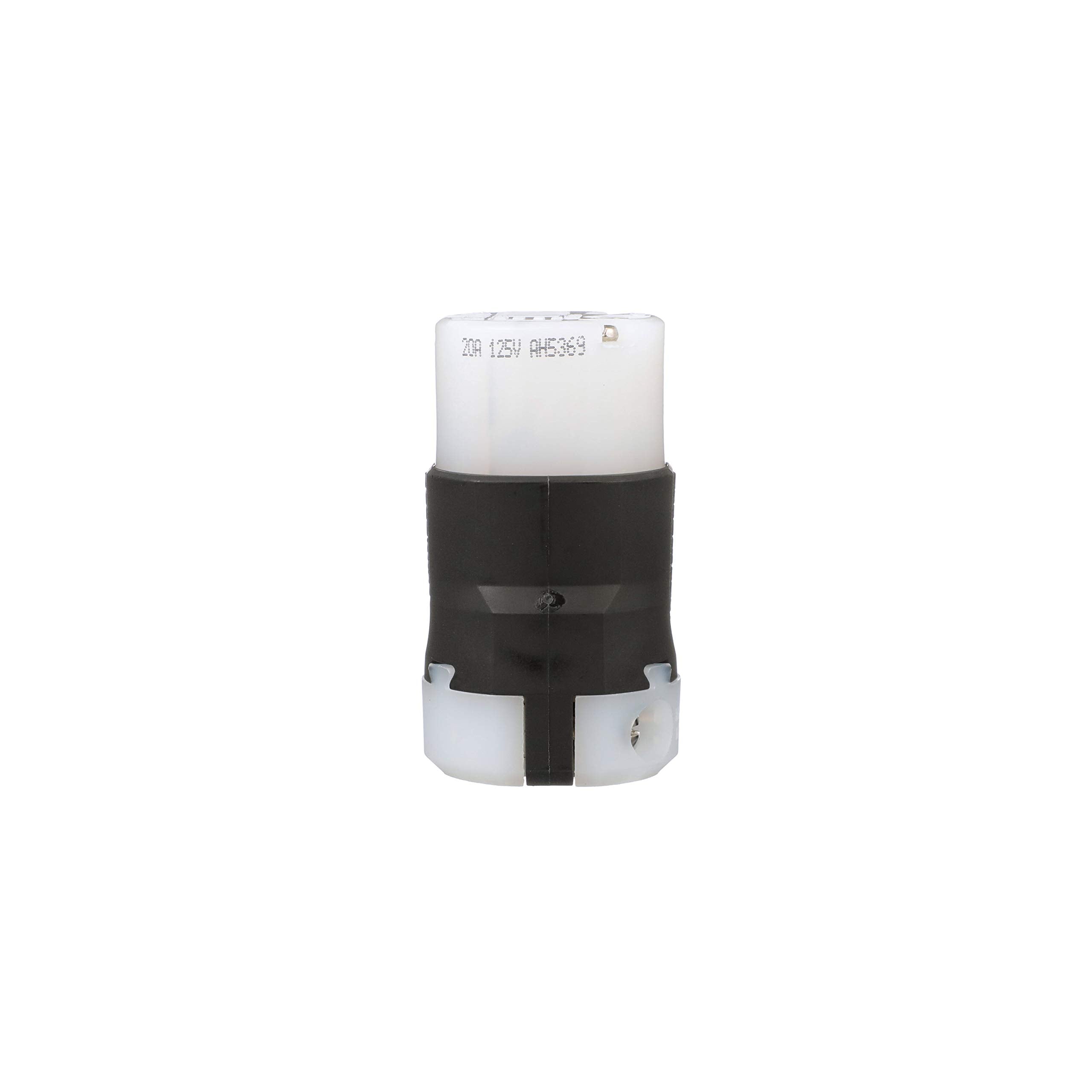

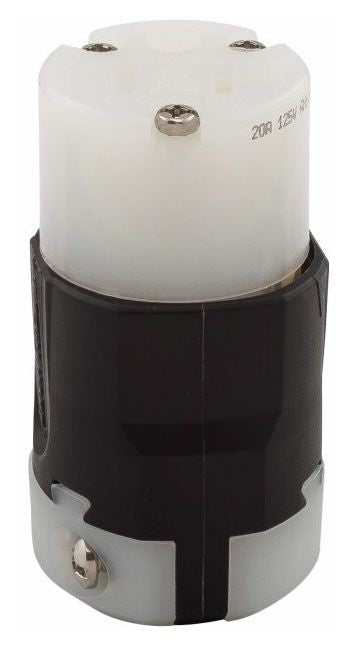

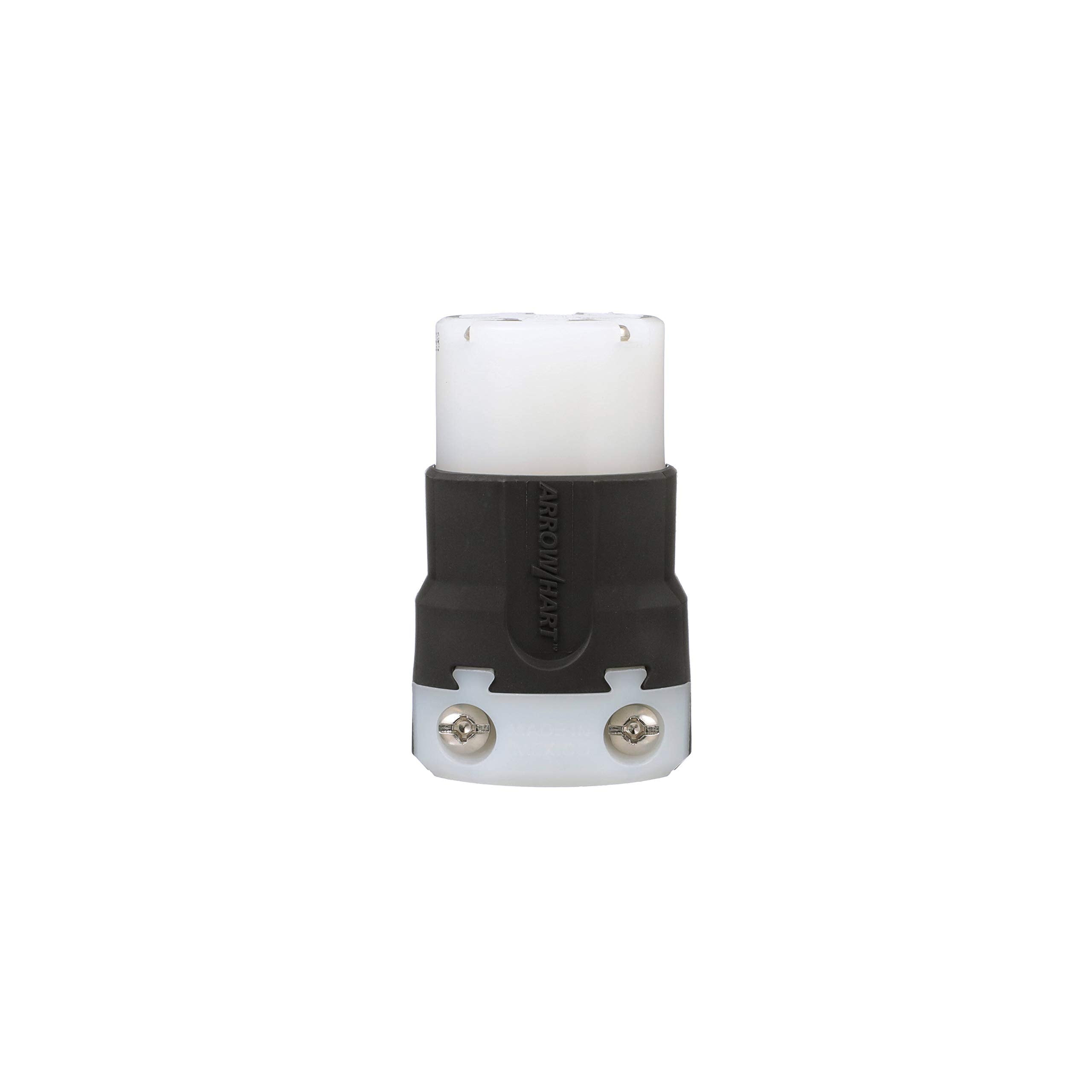

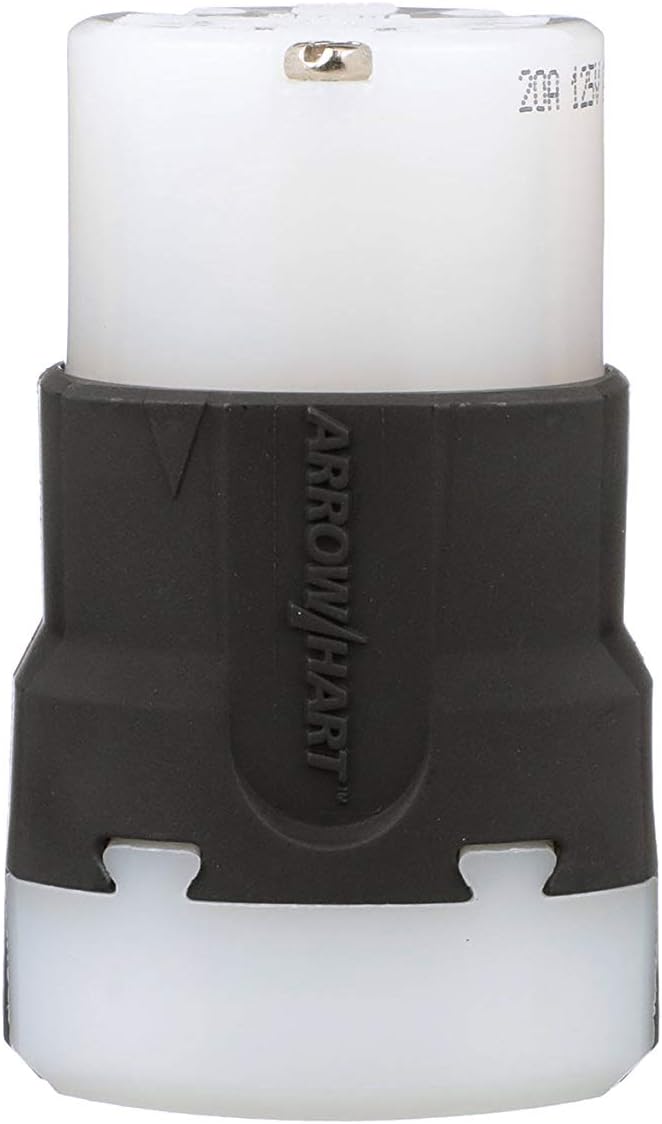

Eaton AH5369 Arrow Hart Wiring 20 Amp 125 VAC Straight Blade Connector

Product Description

The Eaton Arrow Hart AH5369 ultra grip straight blade connector accepts #16 - #12 AWG wire and is rated for 20A and 125V. This industrial-grade, two-pole, three-wire grounding connector features back wiring and screw connections. Its nylon construction ensures durability in demanding environments.

• Ultra grip design
• Industrial grade construction
• Two-pole, three-wire, grounding

Product Highlights

The Eaton AH5369 connector offers reliable performance for industrial applications, featuring a robust design and secure connections.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH5369
• Country of Origin: MEX

Technical Specifications

• Type: Ultra Grip Grounding;Connector
• Brand: Eaton
• Color: Black/White;Black
• Width: 2.59 in
• Height: 2.1 Inch
• Length: 2.23 Inch
• Voltage: 125 VAC;125 V
• Amperage: 20 Amps
• Material: Nylon
• Sub Brand: Arrow Hart
• Applications: For Industrial Applications
• Conductor Size: 18-10 AWG
• Number of Poles: 2
• Number of Wires: 3
• Contact Material: Brass
• Temperature Rating: -40 to 75 deg C
• Number of Conductors: 3
• Manufacturer: EATON
• Model / MPN: AH5369
• Amperage Rating: 20 A
• Application: Industrial
• Cord Diameter: 0.33 to 0.66 in
• Grade: Industrial/Specification;Industrial
• NEMA Rating: NEMA 5-20R;NEMA 5-20P
• Standards/Approvals: cULus Listed|RoHS Compliant;Federal Specification 6221 02|NOM Certified|UL Listed
• Terminal Type: Threaded;Screw
• Product Name: Eaton Arrow Hart ultra grip straight blade connector
• Catalog Number: AH5369
• UPC: 032664737565
• Product Length/Depth: 2.23 in
• Product Weight: 0.195 lb
• Certifications: UL NOM Federal Specification Classification 6221 02
• Product Type: Ultra grip
• Wiring method: Back wire
• Face/body material: Nylon
• Packaging type: Core pack
• Allowable wire size: #16-12 AWG
• Connection type: Screw
• Cord range: 0.33-0.66" in diameter
• Design type: Straight blade
• Device grade: Extra heavy-duty industrial specification grade
• Device type: Connector
• Receptacle type: Two-pole, three-wire, grounding
• Style type: Straight body
• Plug Type: Plug-in
• Product Grade: Industrial
• Specification Met: UL
• Connector Style: NEMA 5-20P
• Connector Type: Plug, Female Sockets
• Current Rating (Amps): 20A
• Voltage Rating: 125VAC
• Number of Positions: 3
• Mounting Type: Free Hanging (In-Line)
• Termination: Screw
• Material Flammability Rating: UL94 V-2
• Approval Agency: NOM, UL
• Moisture Sensitivity Level (MSL): 1 (Unlimited)
