Eaton AH1201B toggle switch 15A 120/277V

Product Description

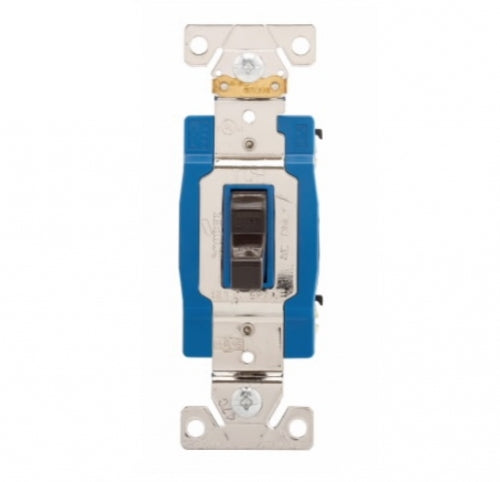

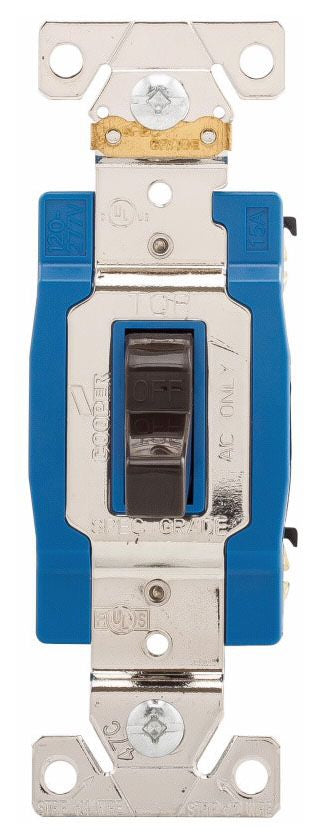

The EATON AH1201B is an AC toggle switch with a current rating of 15A and a voltage rating of 120/277 VAC. This single-pole switch features back and side wiring and is suitable for industrial applications. It is constructed with a durable nylon toggle and is UL (Canada and US) and NOM 426 approved.

• Current Rating: 15 Ampere
• Voltage Rating: 120/277 VAC
• Wiring: Back and Side

Product Highlights

Industrial grade toggle switch with 15A and 120/277V rating, suitable for various industrial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: AH1201B
• Country of Origin: CHN

Technical Specifications

• Current Rating: 15 Ampere
• Voltage Rating: 120/277 VAC
• Power Rating: 1/2 HP at 120 VAC, 2 HP at 277 VAC
• Operation Type: 1-Pole
• Material: Polycarbonate
• Wiring Method: Back and side
• Application: Industrial
• Approval: UL (Canada and US), NOM 426
• Temperature Rating: -20 to 60 Deg C
• Certifications: cULus Listed
• Maximum Amperage: 15 Amp
• Maximum Voltage: 120V-277V
• Brand: EATON
• Manufacturer Part #: AH1201B
• Toggle Type: Toggle
• Toggle Material: Nylon
• Allowable wire size: #14-10 AWG
• Connector type: Screw
• Mounting method: Flush
• Switch type: Single-pole
• Terminal enclosure material: Brass
• Torque rating: 14 lbf-inch
